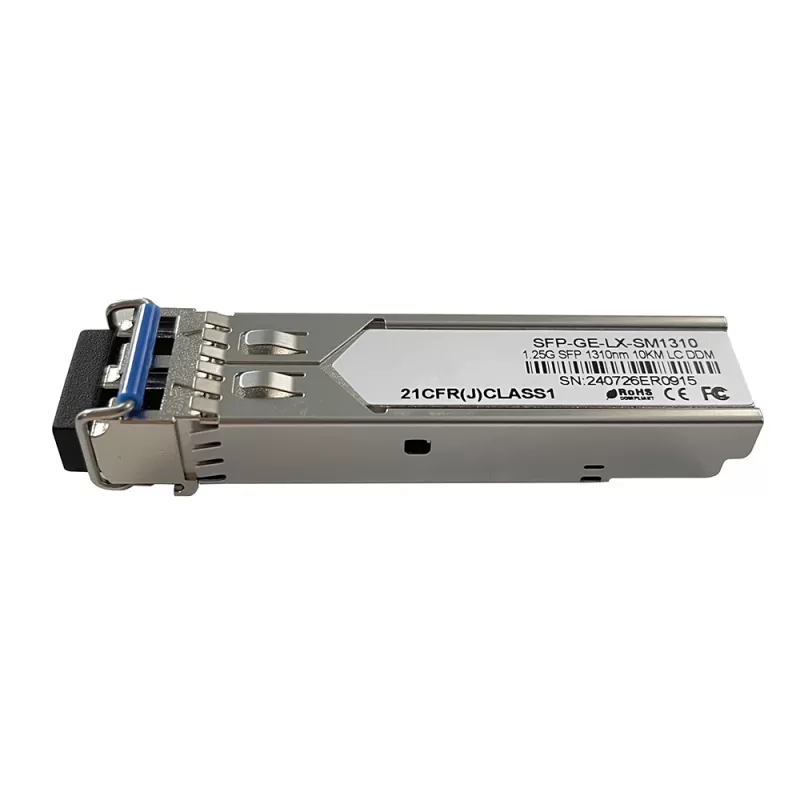

Model Number: WT-SFP-GE-LX-SM1310
Fiber type: Dual Fiber
Transmission rate: 1.25Gb/s
Working wavelength: 1310nm
Transmission distance: 2km ,10km , 20km , 40km
Fiber interface: LC interface
SFP 1.25G 1310nm 10km transceiver complies with SFP multi-source agreement and SFF-8472, and has digital diagnostic monitoring (DDM) function. SFP adopts LC interface, the rate is 1.25G, the optical wavelength is 1310NM, and the maximum transmission distance is 2KM 10KM 20KM 40KM.
Absolute Maximum Ratings of SFP 1.25 G 1310nm LC Transceiver
Parameter | Symbol | Unit | Min | Max |
Storage Temperature Range | Ts | oC | -40 | +85 |
Relative Humidity | RH | % | 5 | 95 |
Power Supply Voltage | Vcc | V | -0.5 | +4 |
Parameter | Symbol | Unit | Min | Typ | Max |
Case Operating Temperature Range | Tc | oC | -10 | 70 | |
Power Supply Voltage | Vcc | V | 3.135 | 3.3 | 3.465 |
Data rate | Gb/s | - | 1.25/1.0625 | - |
