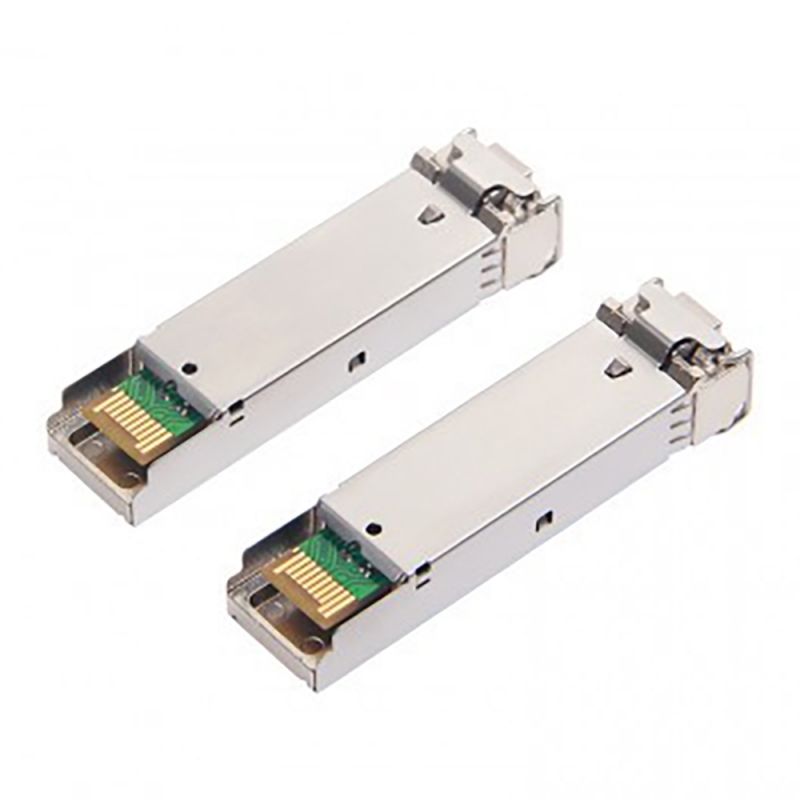

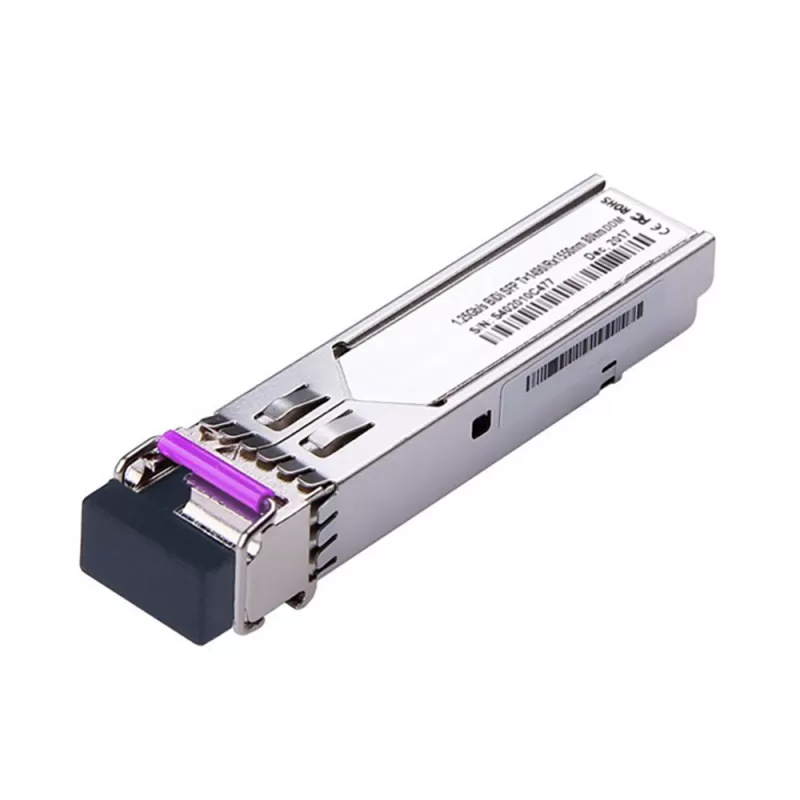

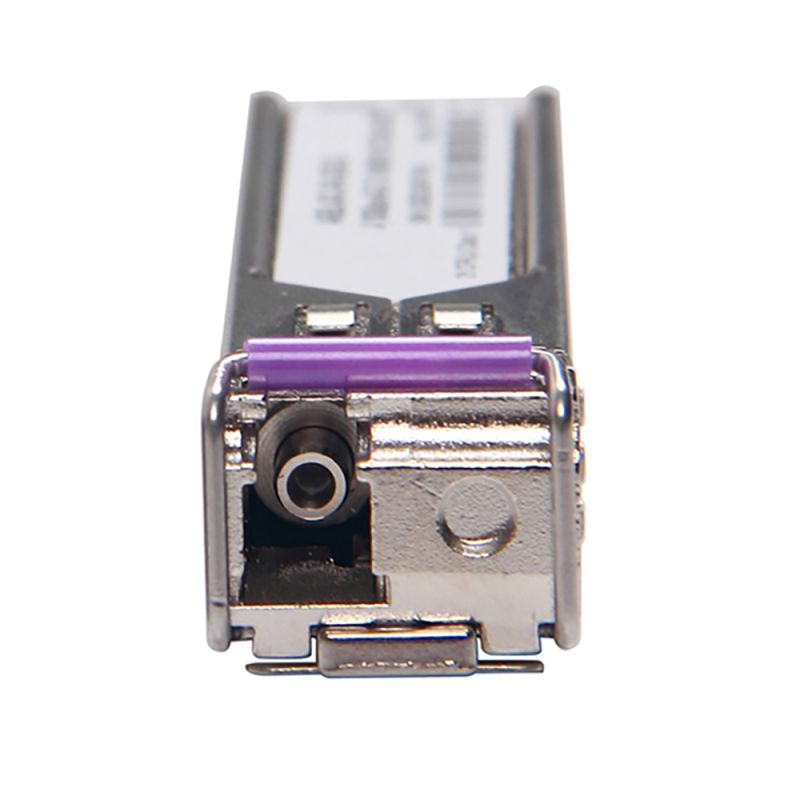

SFP 1.25G Single mode Single Fiber LC DDM Tx1490nm / Rx1550nm 80Km BiDi SFP Transceiver Module

SFP optical modules are available in a variety of transmit and receive types. Users can select the appropriate transceiver for each link based on the type of fiber available (e.g., multimode fiber or single-mode fiber) to provide the achievable "optical performance." Available fiber SFP optical modules are generally divided into the following categories: multimode fiber (SX) at 850 nm / 550 m, single-mode fiber (LX) at 1310 nm / 10 km, XD at 1550 nm / 40 km, ZX at 80 km, ex or ezx at 120 km, and DWDM. SFP optical modules also provide copper cable interfaces, enabling host devices designed primarily for fiber communications to communicate over UTP network cables. There are also wavelength division multiplexing (CWDM) and single-fiber "bidirectional" (1310/1490 nm upstream/downstream) SFPs.

Wirenet offers a comprehensive range of fiber optic and SFP (Small Form Factor Pluggable) transceivers for telecom and datacom networks.

SFPs connect electrical communications equipment to the physical cabling medium and can be used for Ethernet or Fibre Channel and support data rates up to 1.25 Gbps (Ethernet).

Wirenet SFPs include Digital Diagnostic Monitoring (DDM) to monitor parameters such as power, temperature and voltage.

Feature:

* Operating Data Rate up to 1.25Gbps

* BIDI LC/UPC type pluggable optical interface

* Up to 80km

* Single 3.3V Power Supply

* Hot-Pluggable SFP Footprint Duplex LC Connector

* Operating Case Temperature Standard: 0C~+70C and Industrial: -40C~+85C

* Compliant with SFP MSA Specification

* Compliant with SFF-8472

Application:

* Switch to Switch Interface

* Fast Ethernet

* Switched Backplane Applications

* Router/Server Interface

* Other Optical Links

Description

Electrical characteristics
