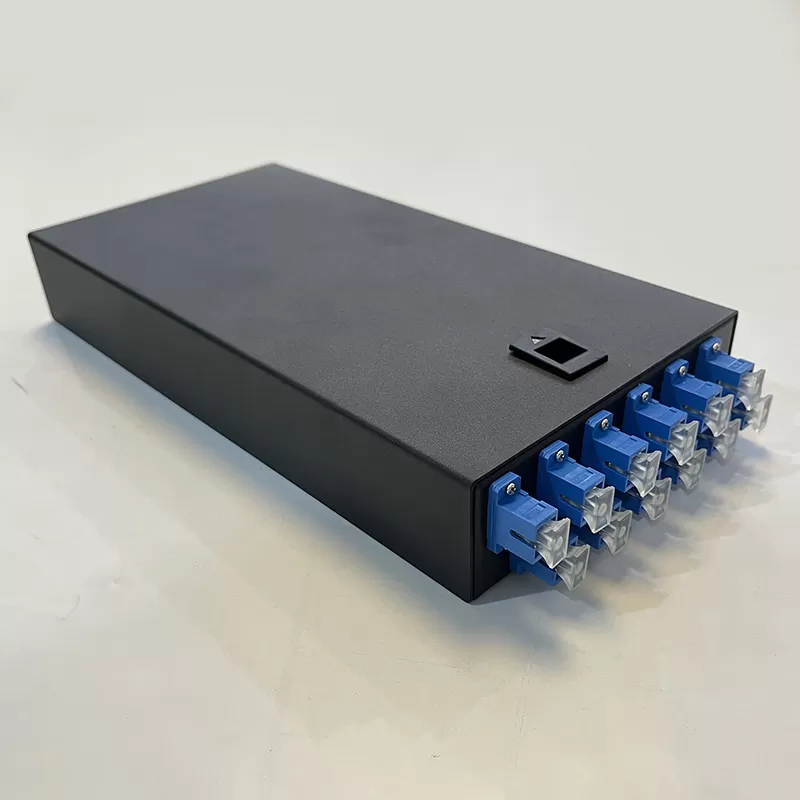

12 Port Wall Mount FTTH Fiber Optic Distribution Terminal box

12 Port Wall Mount FTTH Fiber Optic Distribution Terminal box

Model Number: 12 port termianl box

Connector Type: SC SX

Dimensions: 300*150*60 mm

Weight: 1.04 kg

Material: Cold rolled plate 0.8MM


share:

Inquire Now
Description Contact Us

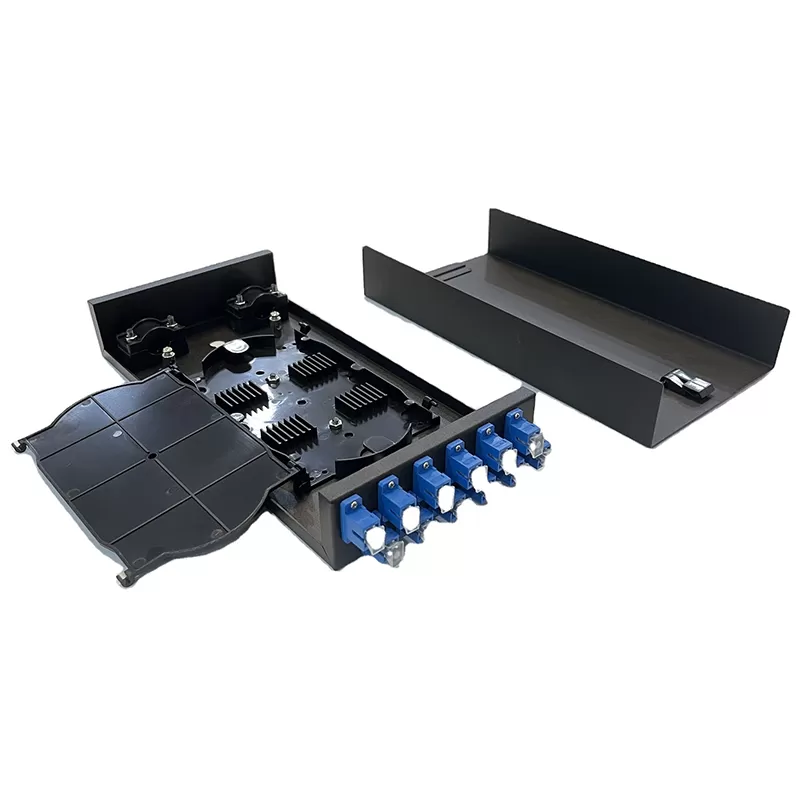

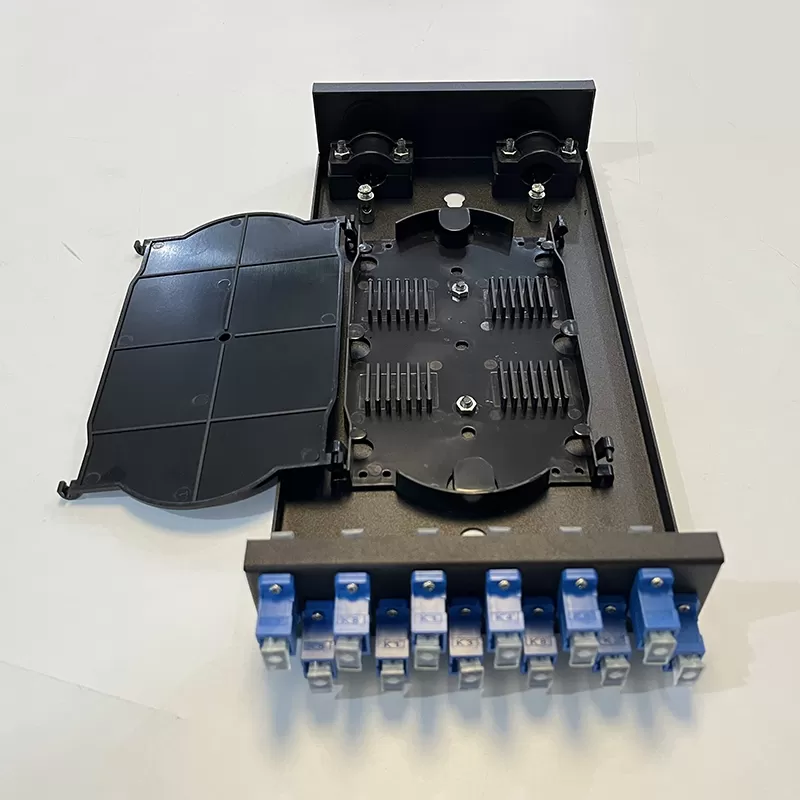

Fiber optic terminal box is an integrated unit for fiber management, Wirenet offer wall mounted fiber optic terminal box and rack mounted fiber optic patch panels, these equipment function is to fix and manage the fiber optic cables inside the box as well as provide protection.


Different models to fit for 4-288 core fiber applications. They can be with different adapter interface including the MPO/SC/ST/FC/LC/MTRJ, etc. related fiber accessories and pigtails are optional.


Dimension( L×W×H )
300mm×150mm×60mm
Function
Cable terminal
Cable diameter
<15mm
Adaptor type
SC/FC/ST/LC
Material
Cold rolled plate （ 0.8mm , RAL 9004 Black）
Insulation resistance
＞2*104MΩ
Dielectric strength
＜15KV
Product weight
1.04kg
