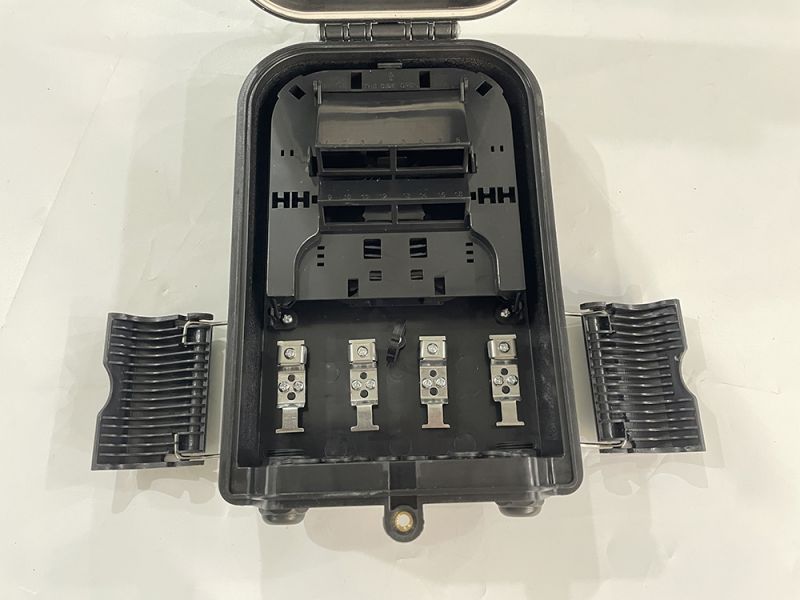

Ip65 16 Port Fiber Optic Distribution Terminal Box for PLC splitter

Ip65 16 Port Fiber Optic Distribution Terminal Box for PLC splitter

Model Number: WT-FDB0416

Dimensions (W*H*D): 295*185*110mm

Weight: 0.95kg(empty)

Material: ABS

Optional Accessories: LGX PLC Splitter(P), Adapters,(A) Fused fiber(S)

Adapter Capacity: 16 fibers with SC simplex adapters

Splitter: 1pc 1*16 SC LGX splitter , 2pcs 1*8 SC LGX splitter

Installation: Wall Mounted/ Pole-mounted

Inquire Now Next Product

Description Contact Us

WT-FD0416-218 box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system

It intergtates fiber splicing,splitting,distribution,storage and cable connection in oneunit,Meanwhile,it provides solid protection and management for the FTTx network building

Features
* Water-proof design with IP-65 Protection level.
* Total enclosed structure.
* Material:ABS,wet-proof,water-proof,dust proof,anti-aging,
* Clamping for feeder cable and drop cable,fiber splicing,fixation,storage,distribution…etc all in one.
* Cable,pigtail,patchcord are running through own path without disturbing each other,cassette type SC adaptor,installation,easy maintenance.
* Distribution panel can be flipped up,feeder cable can be placed in a cup-joint way,easy for maintenance and installation.
* Box can be installed by the way of wall-mounted or poled-mounted suitable for both indoor and outdoor uses.
Installation Type
 Wall / Pole mounted

Dimensions and Capability
Dimensions (WHD)	295185110mm
Material	ABS
Optional Accessories	LGX PLC Splitter(P), Adapters,(A) Fused fiber(S)
Adapter Capacity	16 fibers with SC simplex adapters
Splitter	1pc 116 SC LGX splitter 2pcs 18 SC LGX splitter
Number of Cable Entrance/Exit	4/16
Capacity	16cores
Installation	Wall Mounted/ Pole-mounted
Drop Cable (flat)	Indoor flat drop cable 2 x 3mm Outdoor flat drop cable 2*5mm
Drop Cable (Round)	Φ5mm～Φ10mm
Weight	0.95kg（empty）
Color	White/Black
Protection grade	IP65

Operation Conditions
Temperature	-40℃ -- 85℃
Humidity	≤85% at 30℃
Air Pressure	70kPa – 106kPa

Shipping Information
Package Contents	· Distribution box, 1 unit; Wall mount installation accessories, 4 set ;Nylon cable ties 6pcs Fusion fiber protection tube16pcs
Package Dimensions(WHD)	310200120
Material	Carton box
Weight	1.2KG
