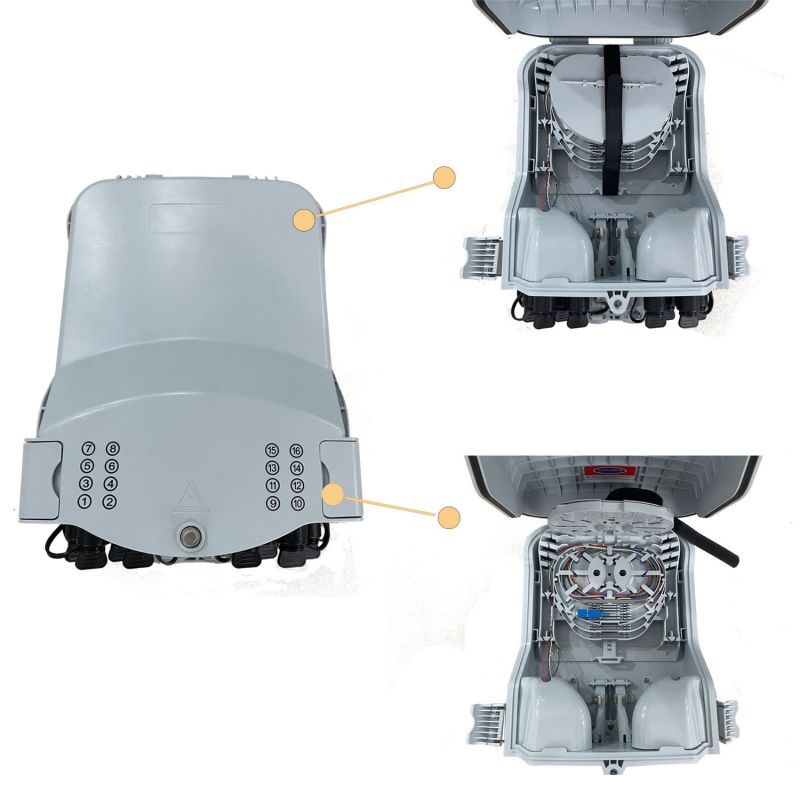

Outdoor Wall Mounting 16 Cores Waterproof Fiber Distribution terminal Box with micro PLC splitter

Outdoor Wall Mounting 16 Cores Waterproof Fiber Distribution terminal Box with micro PLC splitter

Model Number: WT-FAT-HW16

material: PP

IP Rate: IP65

Fusion Capacity (Max): 48,64,96 cores

Neutral salt spray test(NSS): 48H

Inflammability: HB(conventinal)

installation (mm): installation (mm)

Inquire Now Next Product

Description Contact Us

Pre-terminated optical distribution box, as the most advanced FTTx network distribution node equipment, provides fast and reliable connection, good protection and management for FTTX network.

Features
Advanced structure design, easy operation and reasonable routing.
Material: PP or PC+ABS.
Moisture-proof, waterproof, dust-proof, anti-aging.
Protection level IP65.
1 oval input, 2 inputs for derivatives 16 pre-terminated adapters
2 optional type splice trays.
Installation method: pole mounted, air mounted, wall mounted.
It can be equipped with a tray to meet the storage of 50 meters of 5mm round cable.
Material: PP or PC+ABS.
Moisture-proof, waterproof, dust-proof, anti-aging.
Protection level IP65.
1 oval input, 2 inputs for derivatives 16 pre-terminated adapters
2 optional type splice trays.
Installation method: pole mounted, air mounted, wall mounted.
It can be equipped with a tray to meet the storage of 50 meters of 5mm round cable.

Applications

* FTTH access network
* Telecommunication network
* CATV networks
* Data communications network

item	spec	observation
External dimensions (mm)	319.3214133(ABC)	319.3214133(ABC)
installation (mm)	52166166(DxExF)
COLOR	white/black
Size and number of holes for optical cable	1 oval optical cable entry, 2 branch optical cable entries 16 pre-attached adapters
Fusion Capacity (Max)	48	Tray A, 12x4=48, 2 layers of shrinkable splice protector handle.
	64	Tray B, 8x8=64, 1 layer of heat shrinkable splice protector handle
	96	Tray C, 8x12=96, 1 layer of heat shrinkable splice protector handle
	96	Tray D and Tray E, 24x4=96, 2 layers of heat-shrink splice protector.
micro PLC splitter	1x2	Splitter size 60x7x4mm. Can be installed in type A and type E splice tray, 1 piece per splice tray
	1x4
	1x8
	1x16	Splitter size 60x7x4mm. Can be installed in type A-1 and type E-1 splice tray, 1 piece per splice tray
Largest cable diameter(mm)	8-14mm
Maximum branch hole size (mm	16mm
IP protection level	IP65
Inflammability	HB(conventinal)
Neutral salt spray test(NSS)	48H	according to the requirements

Package：36x30x15 cm carton for 1 pc
