Model Number: WT-FDB0416-20x
Material: ABS
IP Rate: IP65
Fusion Capacity (Max): 16,96 cores

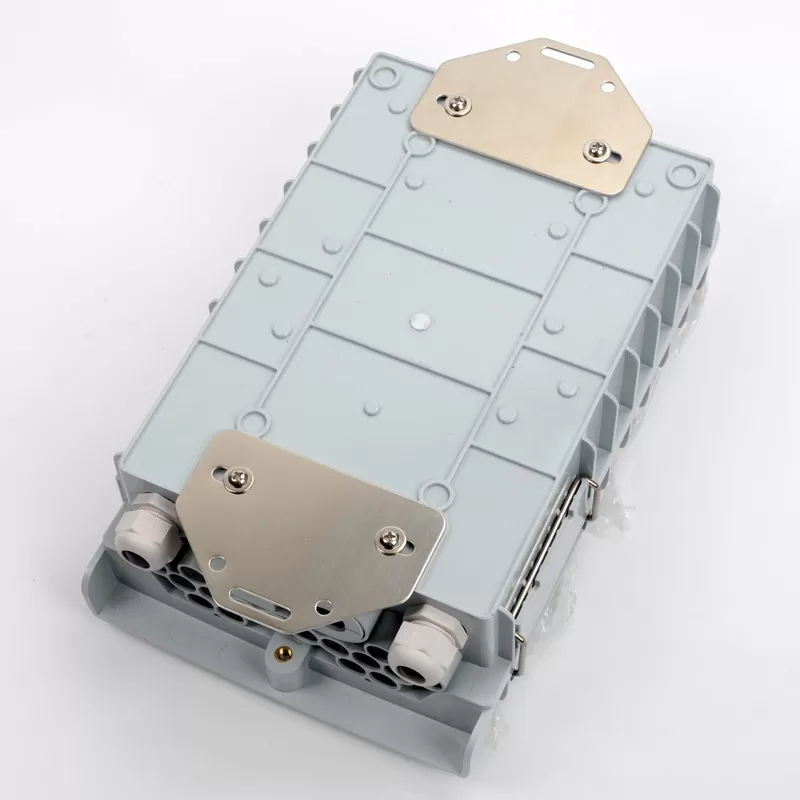

Installation: Wall Mounted/ Pole-mounted
Dimensions (W*H*D): 300*210*90mm
Weight : 1.35kg（empty）

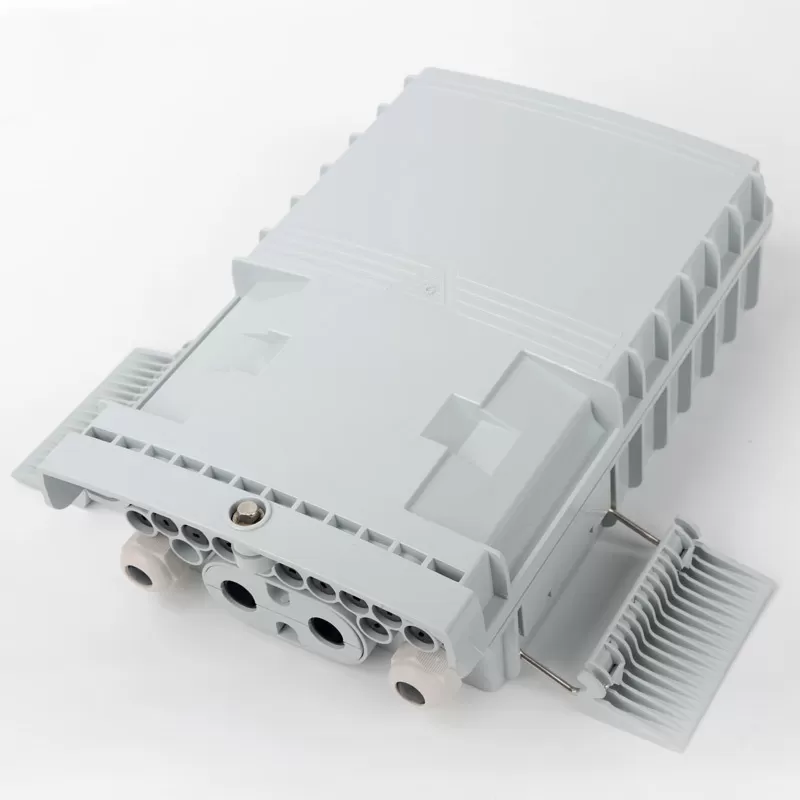

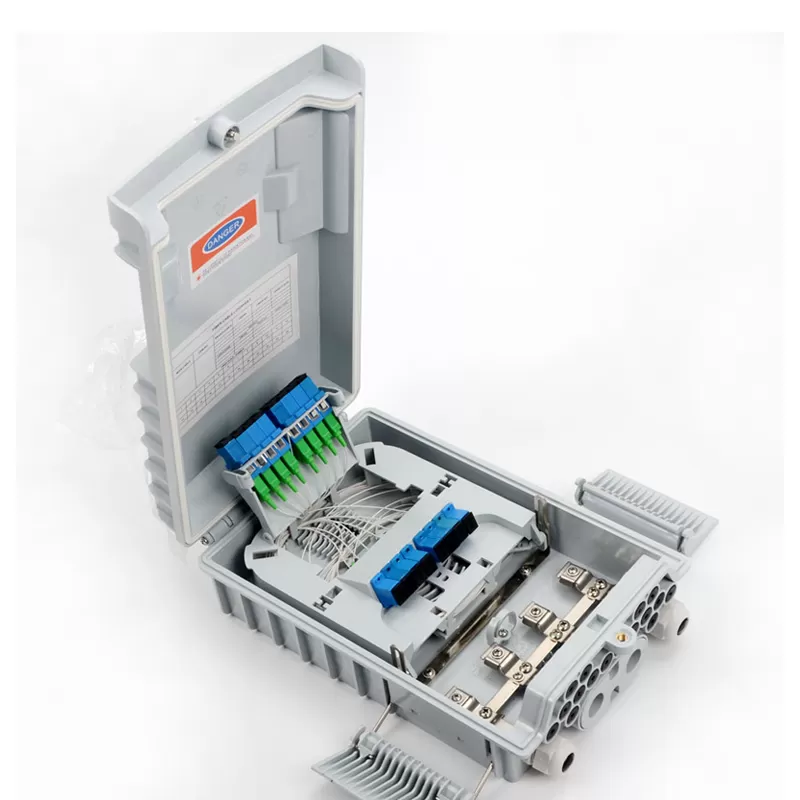

WT-FDB0416-20x box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system .It intergtates fiber splicing,splitting,distribution,storage and cable connection in one unit,Meanwhile,it provides solid protection and management for the FTTx network building
Features
* Water-proof design with IP-65 Protection level. * Total enclosed structure. * Material:ABS,wet-proof,water-proof,dust proof,anti-aging, * Clamping for feeder cable and drop cable,fiber splicing,fixation,storage,distribution…etc all in one. * Cable,pigtail,patchcord are running through own path without disturbing each other,cassette type SC adaptor,installation,easy maintenance. * Distribution panel can be flipped up,feeder cable can be placed in a cup-joint way,easy for maintenance and installation. * Box can be installed by the way of wall-mounted or poled-mounted suitable for both indoor and outdoor uses.
* Total enclosed structure. * Material:ABS,wet-proof,water-proof,dust proof,anti-aging, * Clamping for feeder cable and drop cable,fiber splicing,fixation,storage,distribution…etc all in one. * Cable,pigtail,patchcord are running through own path without disturbing each other,cassette type SC adaptor,installation,easy maintenance. * Distribution panel can be flipped up,feeder cable can be placed in a cup-joint way,easy for maintenance and installation. * Box can be installed by the way of wall-mounted or poled-mounted suitable for both indoor and outdoor uses.Contact Us
