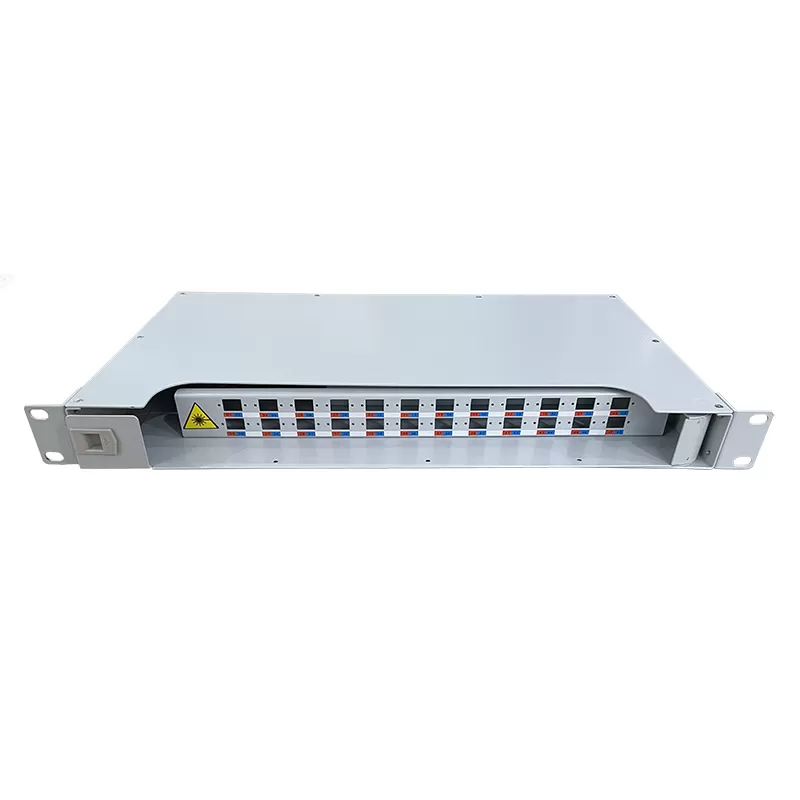

Model Number: WTODF-CK
Port: 24 port
Material: Cold-rolling steel
Adapter: 12C, 24C, 48C(LC), 96C(LC), optional
Features: Can be used in 19'', 23'' standard distribution frame
Insulating resistance: ≥2x104 MΩ/500VDC
Environmental temperature: -25 - 55°C
Relative humidity: ≤85%((when the temperature is below 30°C))
Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over

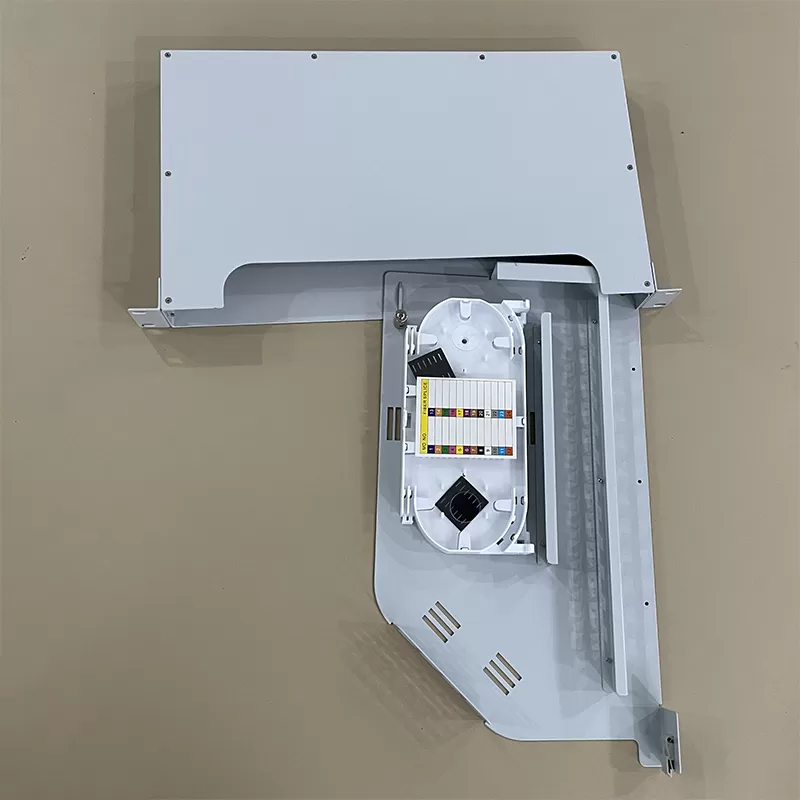

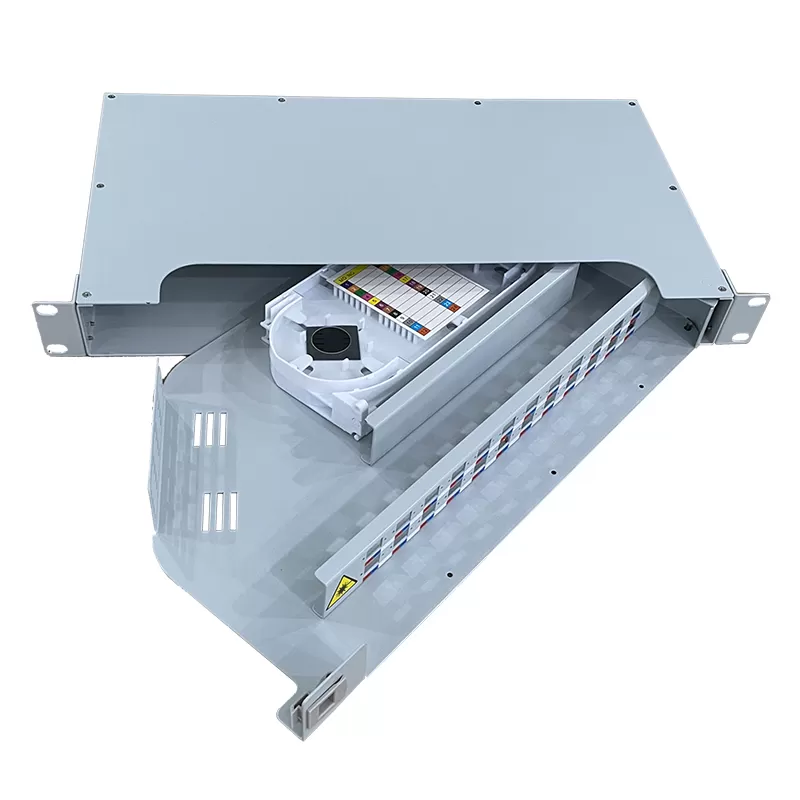

It is made of cold roll steel, splice tray can be rotated out. It could be pre-installed with various kinds of fiber optic adapters and pigtails. It is ideal for indoor fiber optic cables connection storage, distribution and management.
Features:
* Standard size, can be rackmount and wallmount
* Splice tray inside changeable
* Can be used in 19'', 23'' standard distribution frame
* Suitable for ribbon and single fiber
* Various panel plate to fit different adapter interface

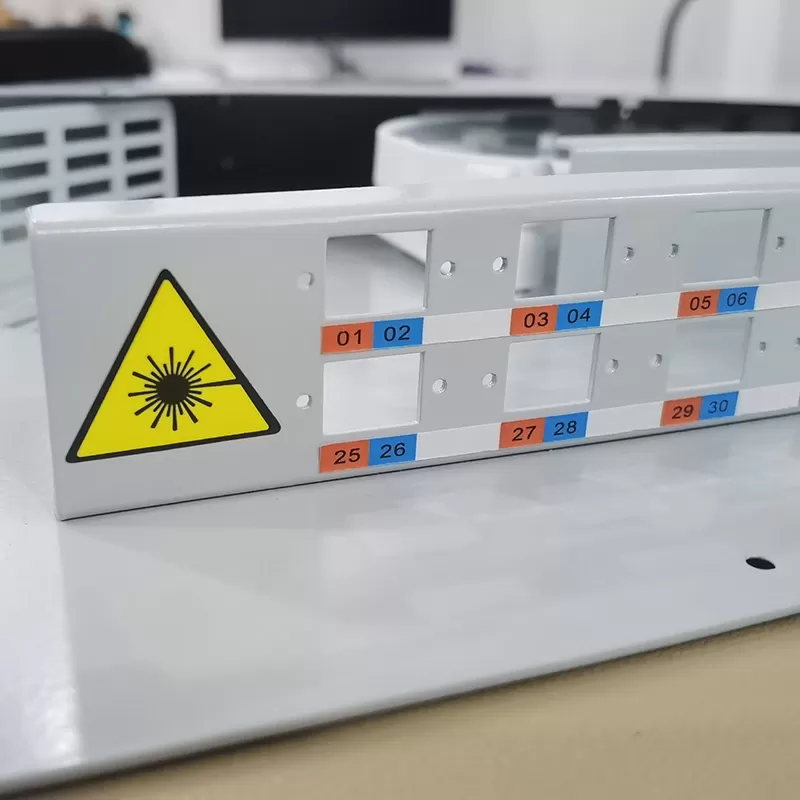

* Front mark on the plate is easy for identification and operation
* 12C, 24C, 48C(LC), 96C(LC), optional, with or without fiber optic pigtails and adapters
Application:
* Telecommunications subscriber loop
* Fiber to the home (FTTH)
* LAN/WAN
* CATV
* Fiber to the home (FTTH)
* LAN/WAN
* CATV
Specification:
 |  |
 |
|
