Model Number: WTODF-DPRS36SC1
Material: Plastic
Adapter: Simplx&Duplex SC,LC,FC,ST Adapters
Plastic: SC simplex adaptor/SC duplex adaptor /LC duplex adaptor
Maximum number of cores: 24corel SC S / 48core SC D /96corel LCQ
Splice Tray: 24corel*1pc

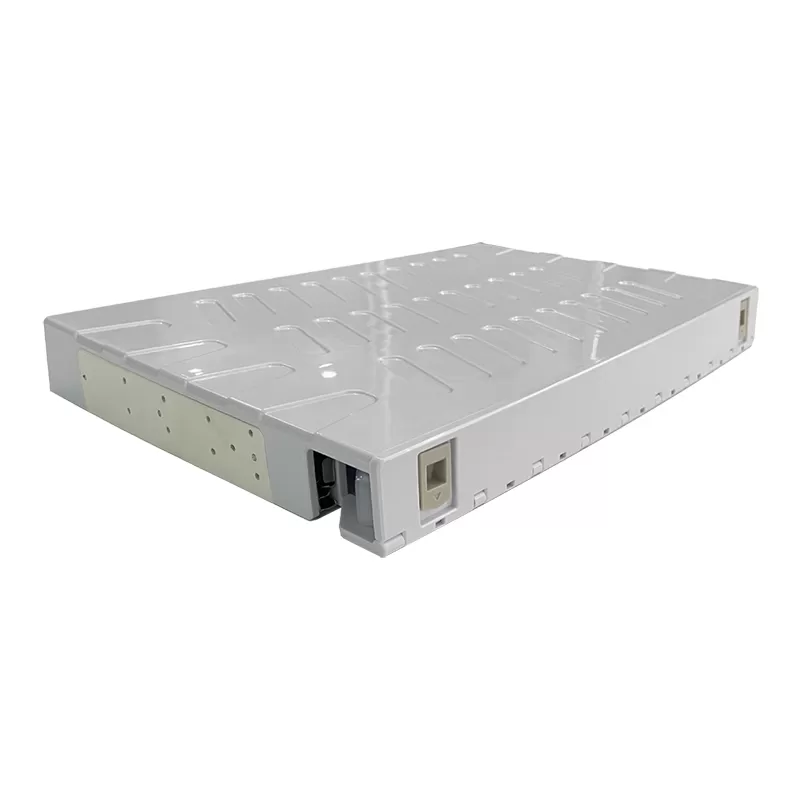

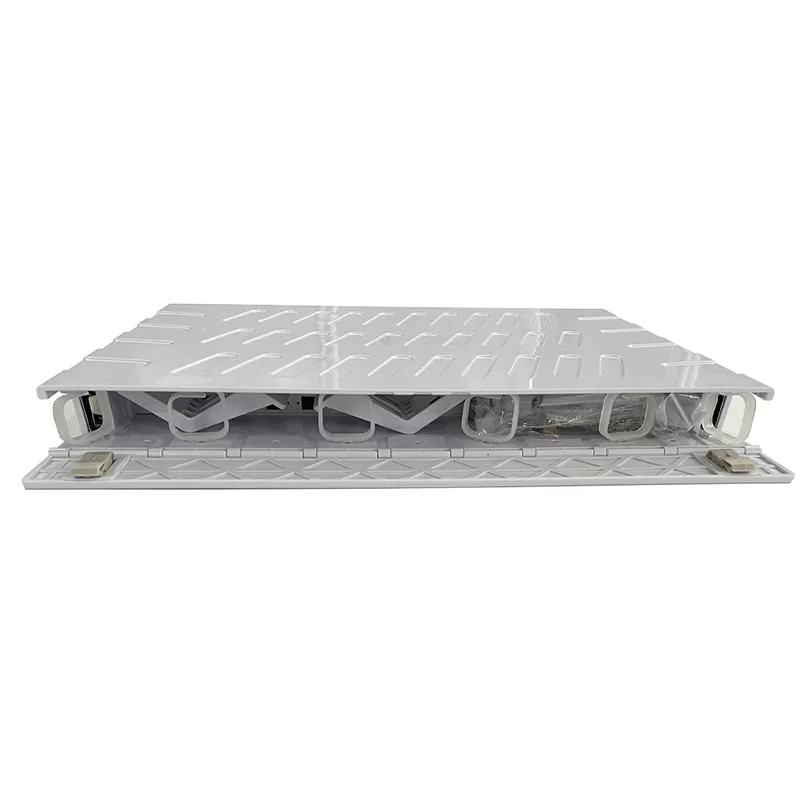

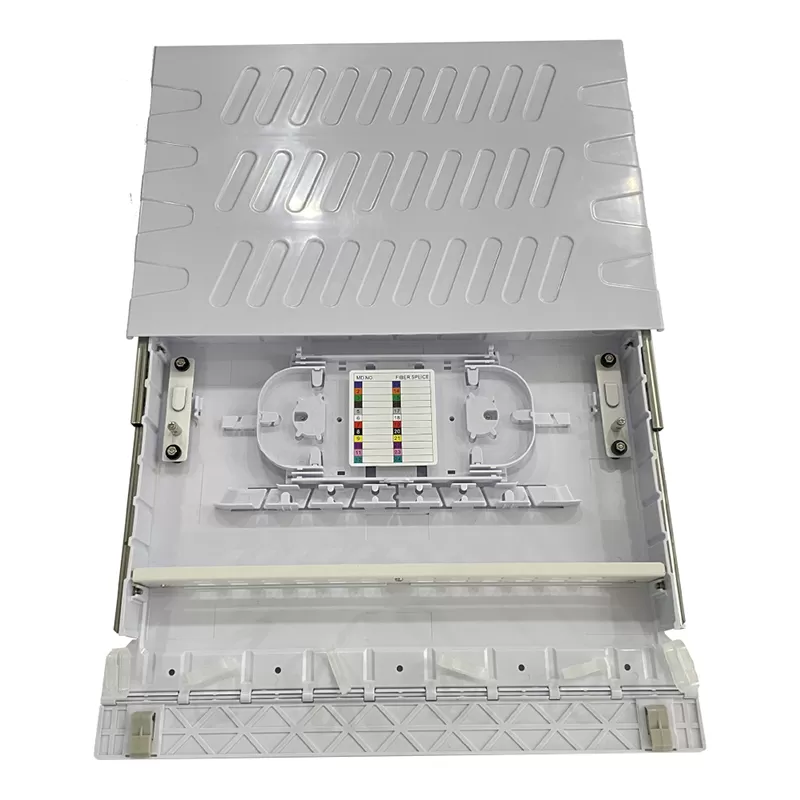

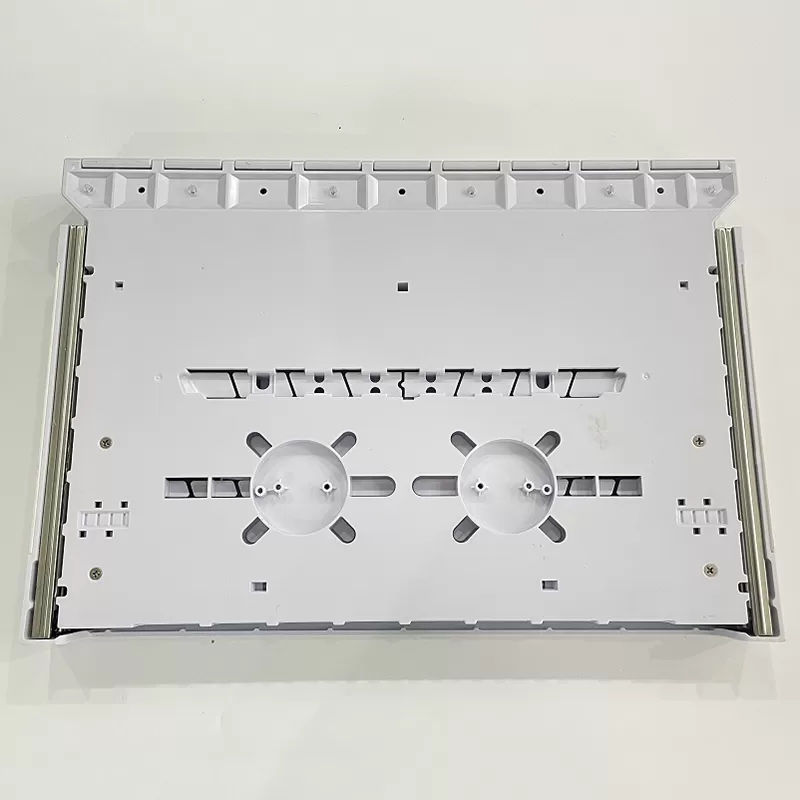

Drawer type patch panel Material is High quality ABS, brackets is cold rolled steel,this panel mainly installed in fiber optic cabinet and rack.19inch, 1U, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution. It provides an economical way of splicing fiber cables in communication room or existing equipment racks where space is constrained. 19-inch rack mount for ST, SC, LC, MTRJ, FC adapters.
Features:
* Max capacity is 36cores ( SC Simplex port adapters)
* Special sliding design, operation easy and convenient
* Variety of coled-rolled steel adapter plate for choice based on different demands
* Material is ABS plastic, light weight.Black or white optional.
Application:
* Telecommunications subscriber loop
* Fiber to the home (FTTH)
* LAN/WAN
* CATV
Specification:
