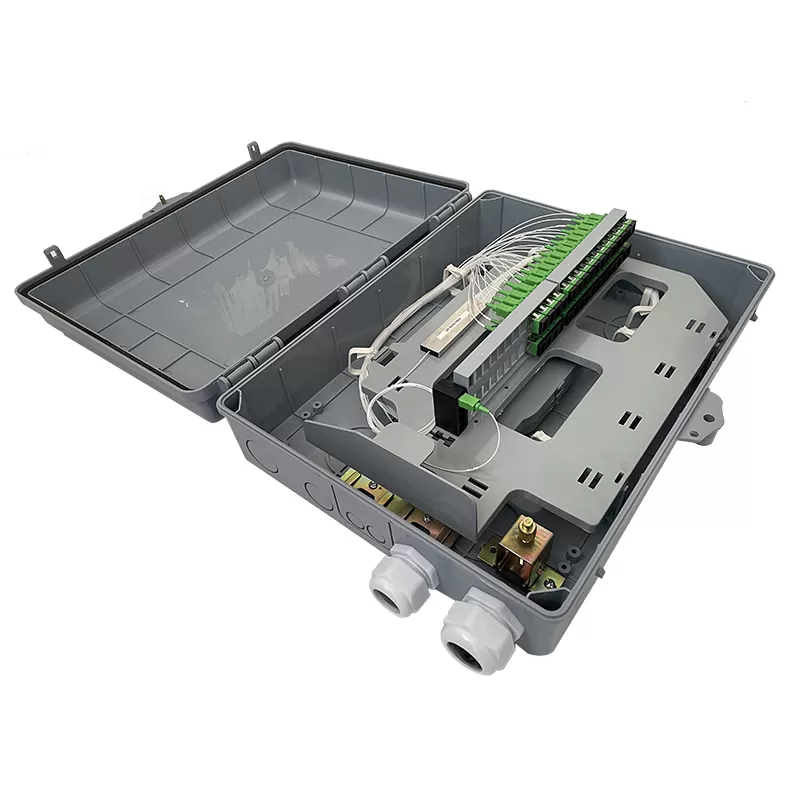

FTTH Outdoor 48 core fiber optic terminal box with plc splitter for Sale

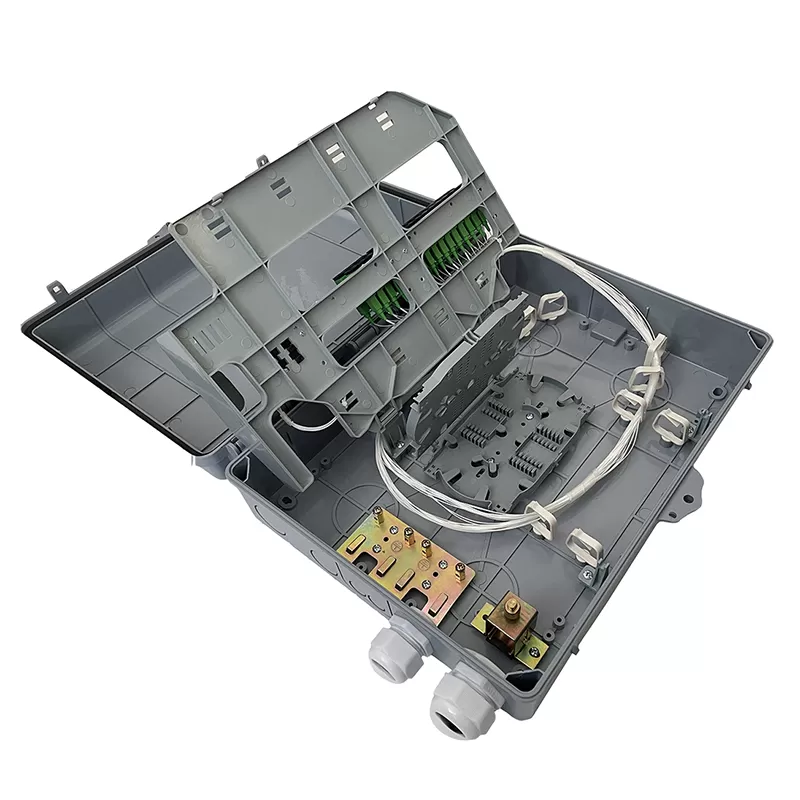

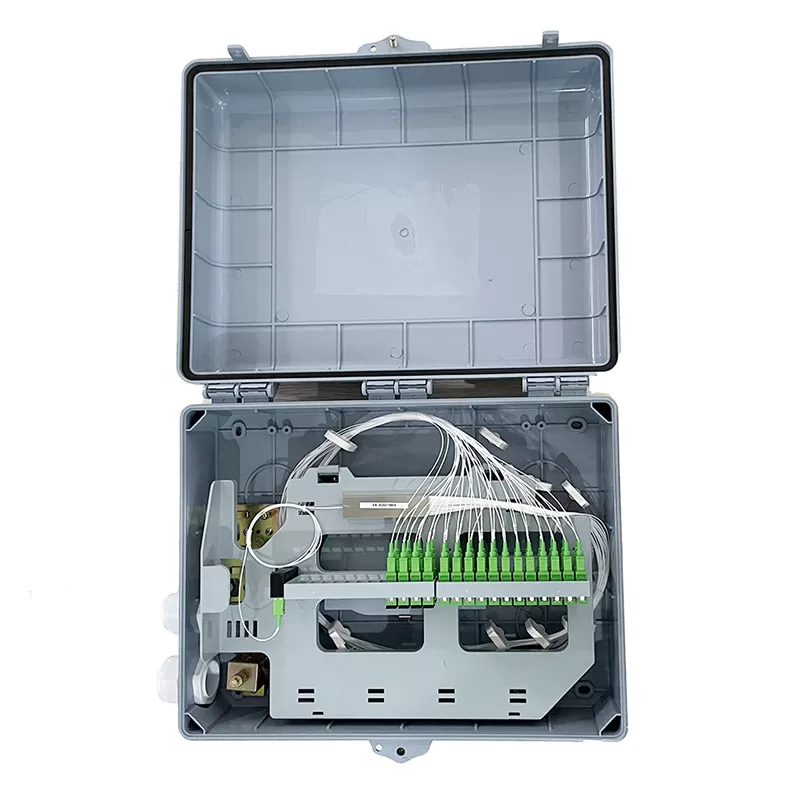

 WT-3090A fiber access termination box is able to hold upto 48 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTT x network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box

Features

* Water-proof design with IP-66 Protection level.
 * Integrated with splice cassette and cable management rods.
 * Manage fibers in a reasonable fiber radius condition.
 * Easy to maintain and extend the capacity.
 * Fiber bend radius control more than 40mm.
 * Suitable for the fusion splice or mechanical splice.

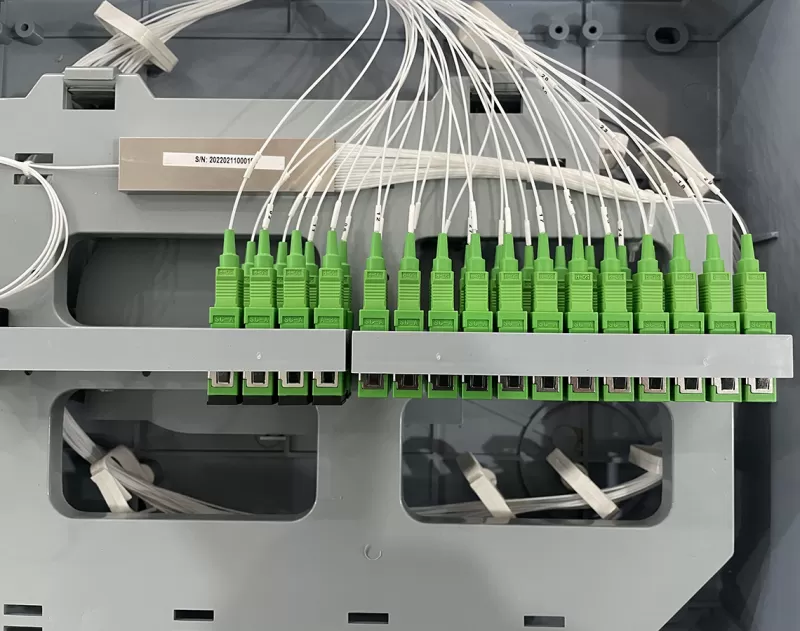

 * 1*8 and 1*16 Splitter can be installed as an option.
 * Efficient cable management.

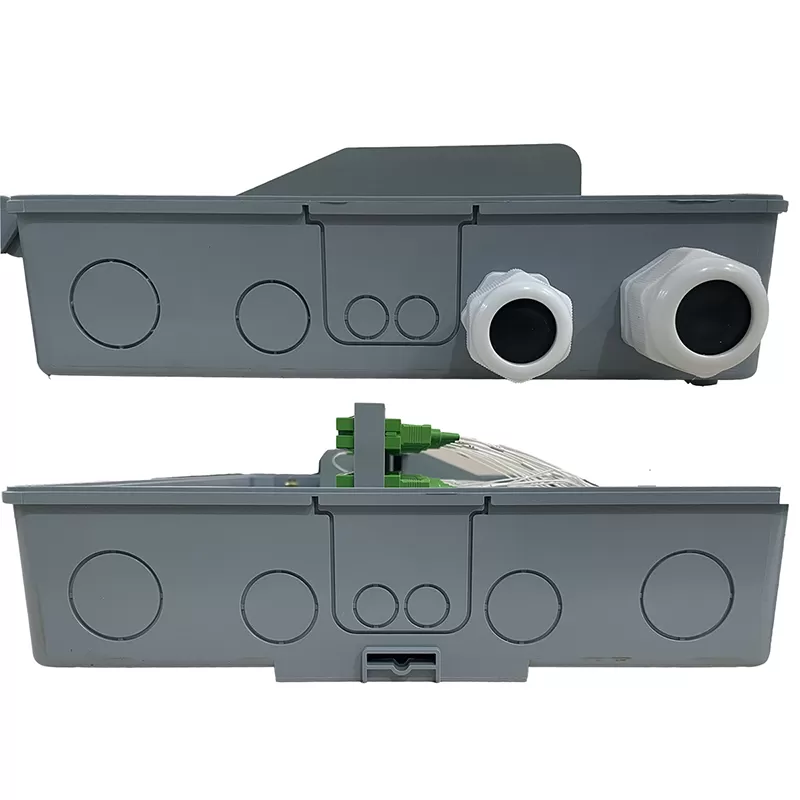

 * 48 ports cable entrance for drop cable.

Application
1.Widely used in FTTH access network.
2.Telecommunication Networks
3.CATV Networks
4.Data communications Networks
5.Local Area Networks
2.Telecommunication Networks
3.CATV Networks
4.Data communications Networks
5.Local Area Networks

Material
Size（MM）
Max Capacity
Weight
Color
ABS/PC
450*350*140
SC
48 Ports
Box PLC
1x16(SC)
T ube PLC
1x8(SC)
2.7kg
Light Gray

GET IN TOUCH AND REQUEST A QUOTE

Material	Size（MM）	Max Capacity			Weight	Color
ABS/PC	450350140	SC 48 Ports	Box PLC 1x16(SC)	T ube PLC 1x8(SC)	2.7kg	Light Gray
