Material：PC+ABS
Dimension：220*140*55mm
Weight：0.6kg
IP grade：IP55
Cable diameter：Max.12mm
Cable port：8pcs / 16pcs 2*3mm drop cable ports
Max. Split ratio：2pcs 1x8 or 1*16 (SC) PLC splitter

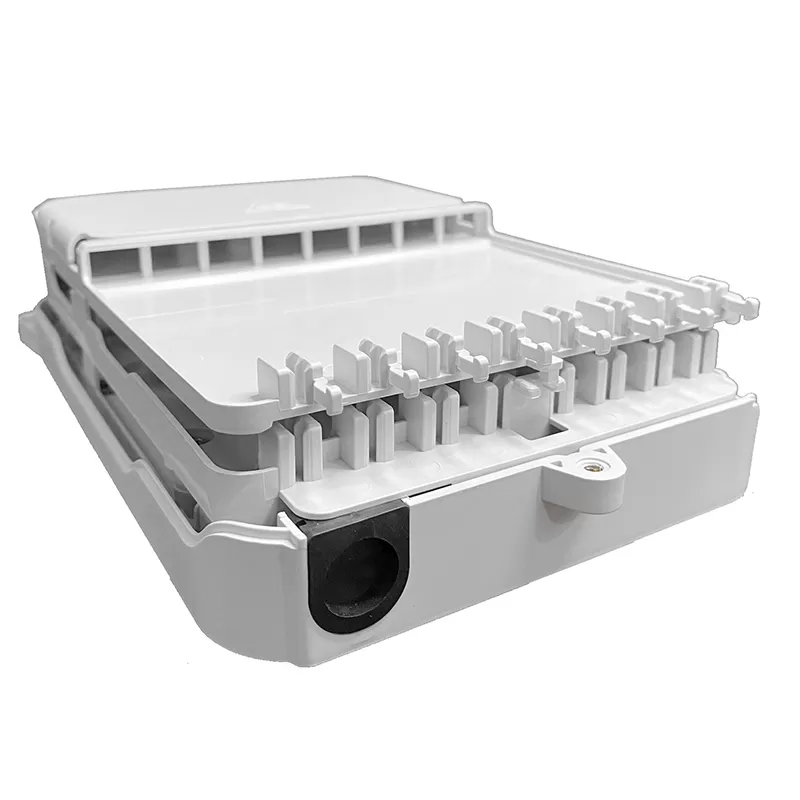

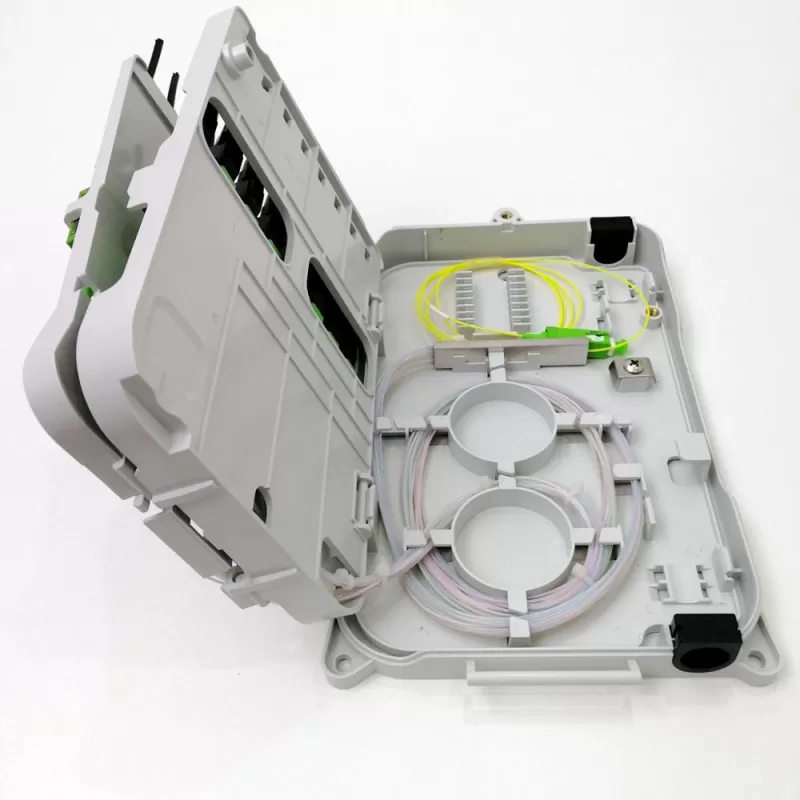

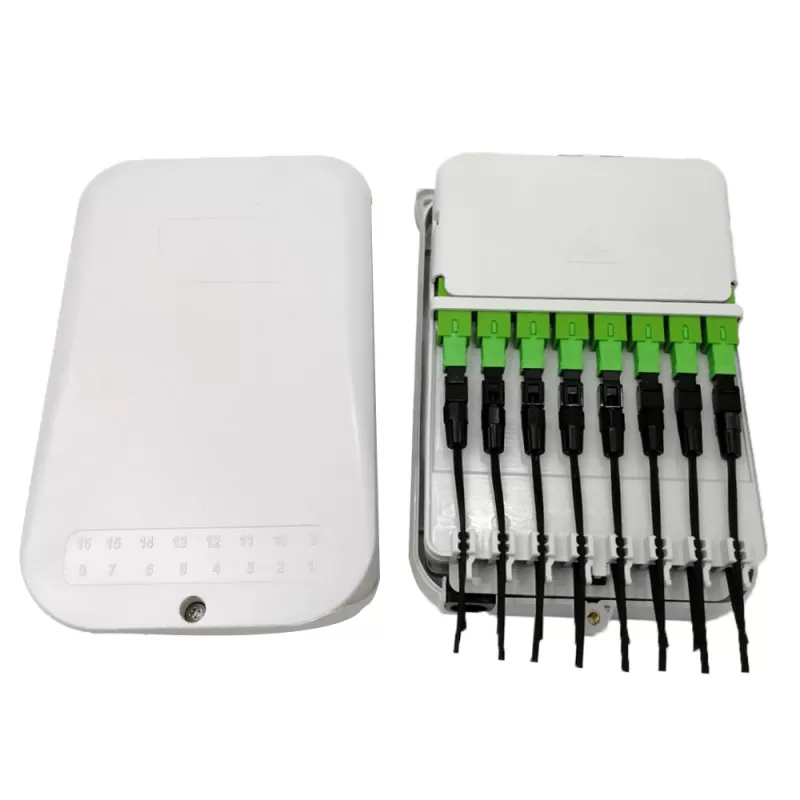

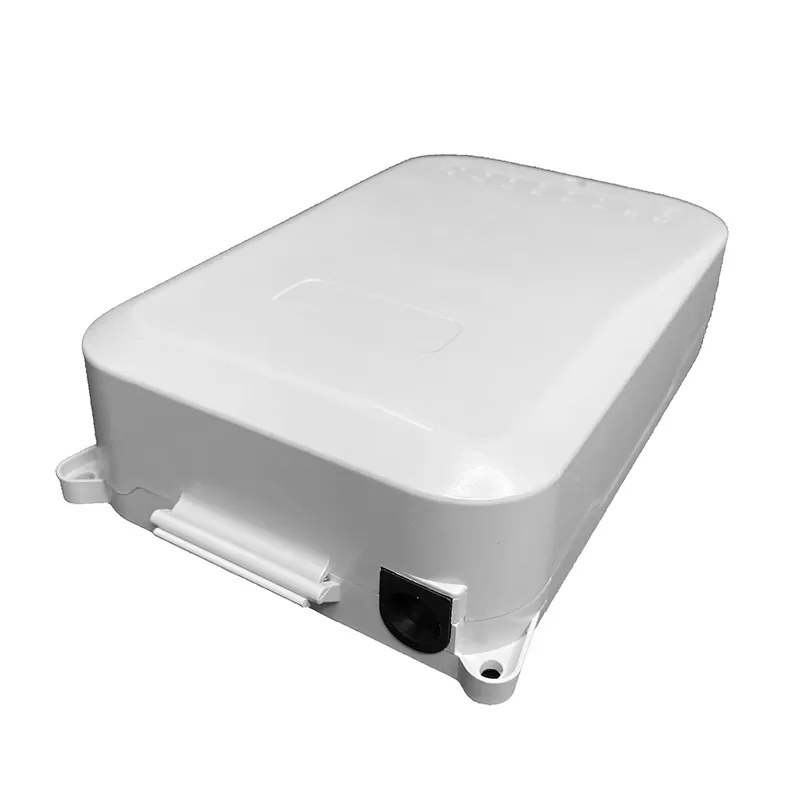

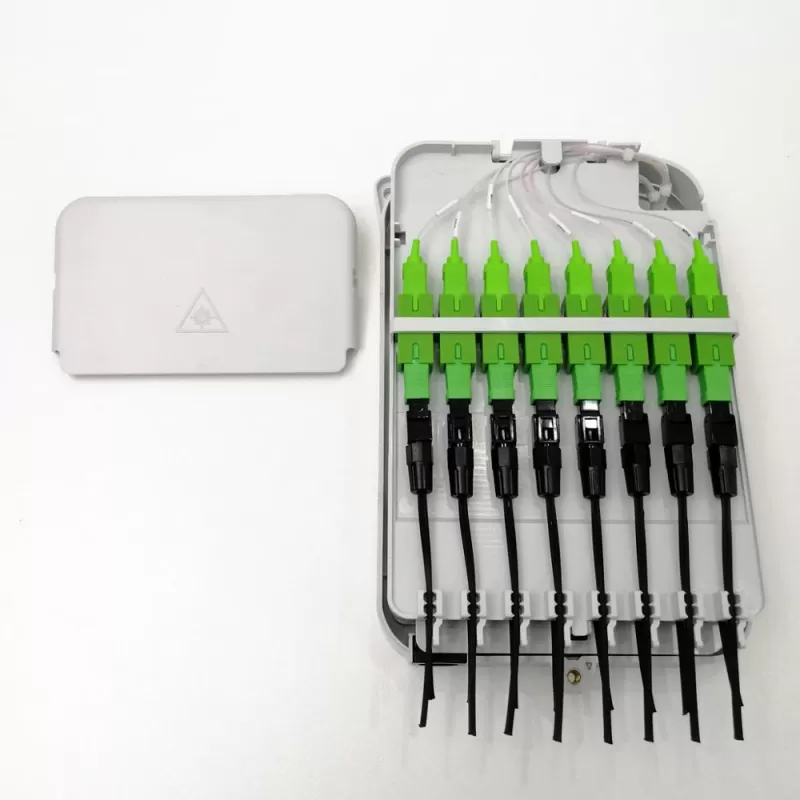

The fiber access terminal box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
* Water-proof design with IP-55 Protection level.
* Integrated with splice cassette and cable management rods.
* Manage fibers in a reasonable fiber radius condition.
* Easy to maintain and extend the capacity.
* Fiber bend radius control more than 40mm.
* Suitable for the fusion splice or mechanical splice.
* 2:1*8 or 1:1*16 Splitter can be installed as an option.
* Efficient cable management.
* 16 ports cable entrance for drop cable.
Type | Racks & Enclosure |
Use | FTTH |
Warranty Time | 1 Year |
Size | 140*80*184.5mm |
Material | PC+ABS |
Color | Light grey |
Weight | 1kg |
No. of Fiber | 8/16 |
Operating temperature | -40℃~+60℃ |
Splitter | 1*8 PLC / 1*16 PLC |
UV resistance | Yes(customizable) |
Connecting Adapter | SC simplex or LC duplex |
