Model name: GYXTW
Fiber count：1-24 Cores
Fiber Type：G652D/G657A1/G657A2/OM1/OM2/OM3/OM4

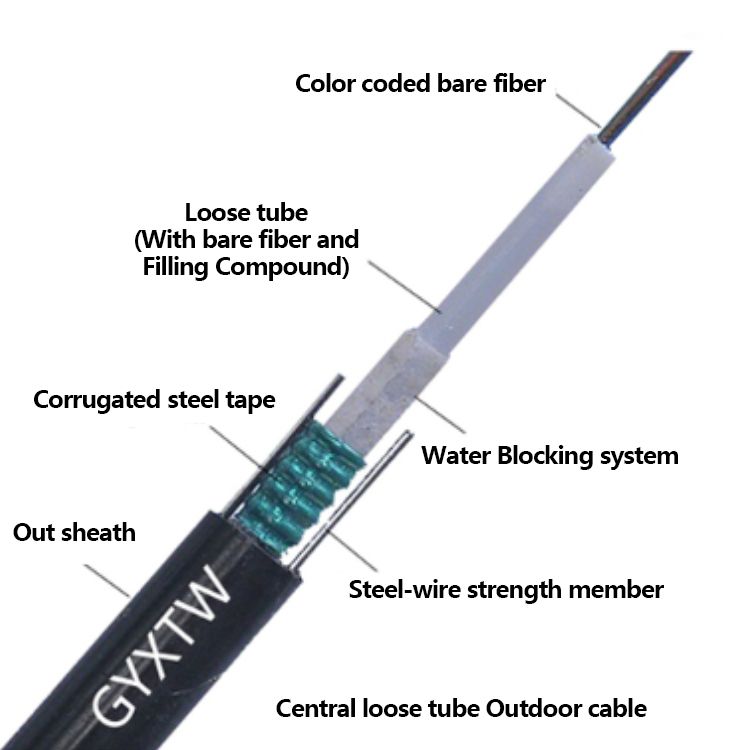

Structure：Central Tube
Strength member：Central Steel Wire
Insert loss：<0.1dB
Return Loss：≥45dB
What is GYXYW Fiber Optic cable?
GYXTW fiber optic cable is a type of outdoor fiber optic cable commonly used for long-distance telecommunication, data transmission, and network applications. Here's a breakdown of the components and characteristics of GYXTW fiber optic cable:
Fiber Count: GYXTW cables can accommodate various fiber counts, typically ranging from 1 to 12 fibers. These fibers are housed inside a loose tube filled with water-blocking gel to protect against moisture and environmental stress.
Application:
1. Adopted to Outdoor distribution.
2. Suitable for aerial pipeline laying method.
3. Long distance and local area network communication.
Characteristics:
1. Steel-wire parallel member.filler protect tube fiber steel
2. tape amored.
3. Excellet mechanical and environmental performance.
4. Compact structure light weight.
5. Can be installed conveniently and operated simply.
Technical Parameters:
| CableCount | Outsheath Diameter | Weight | Minimumallowable Tensile Strength（N） | Minimumallowable Crush Load (N/100nm) | Minimum Bending Radius(MM) | Storage Temperature | |||
| (MM) | (kg) | Short term | Long term | Short term | Long term | Short term | Long term | (℃) | |
| 1-12 | 8.3 | 78 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
Packing Information
| Model No. | OD(mm) | Km/Reel | N.W./Reel(kg) | Reel Size(kg) | Weight for Package by Drum (kg) | Weight for Package by Polywood (kg) |
| GYXTW | 8.3 | 1 | 72 | 55*75 | 103 | 100 |
| 2 | 144 | 55*75 | 175 | 172 | ||
| 3 | 216 | 55*100 | 276 | 260 | ||
| 4 | 290 | 55*110 | 352 | 340 | ||
| 5 | 360 | 55*120 | 430 | 420 |
Remark:
Package by Drum needs to be fumigated or provide fumigation certificate when exporting
While, package by Polywood can be exported directly.
