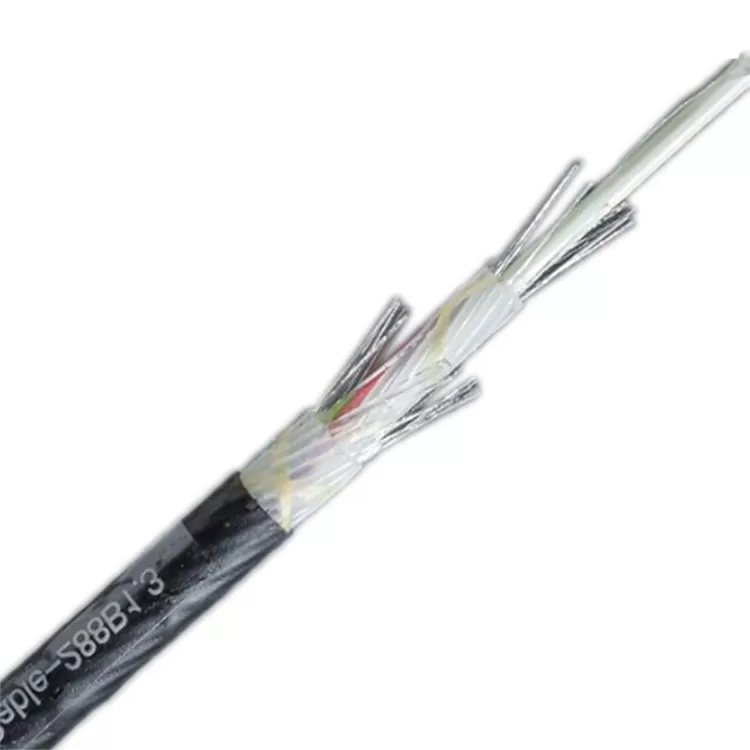

Model Number: Micro Air-Blown Ribbon Fibre Optic Cable
Installation Temperature range: -30--+70℃
Operation and transport temperature: -40-+70℃
Impact: 10Nm.3 impacts, R=300mm. attenuation <=0.05dB
Torsion: 100N,+/-180 10cycles, attenuation <=0.05dB no damage
Min Bending Radius(mm): Long term(10D);short term(20D)

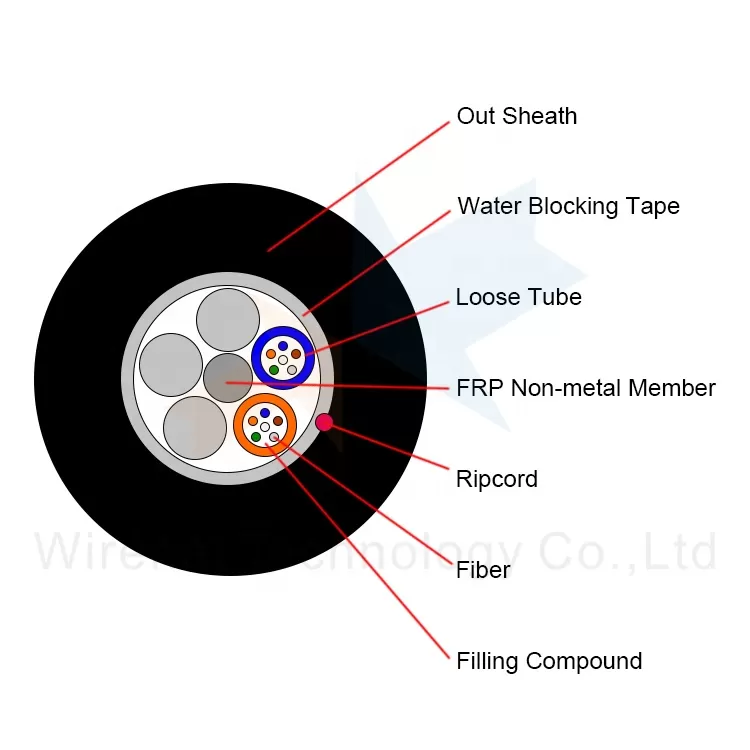

The fibers are positioned in a loose tube made of a high modulus plastic(PBT). The tubes are filled with a water-resistant filling GEL. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member, water blocking yarns on the FRP. The tube is wrapped with a layer of water blocking yarns. The cable is completed with a HDPE sheath. Ripcord inside the outer jacket.
Application:
1. Suitable for wiring in multiple minefields and places with severe electromagnetic interference.
2. Suitable for overhead and laying.
3. Long distance communication, inter-office communication.
Characteristics:
Central Strength Member(CSM): glass fiber reinforced plastic rod (FRP) with water blocking yarn.
Loose Tube: thermoplastic material, containing up to 12 fibers and filled with a Suitable water tightness compound.
Filler Elements: thermoplastic rods, where needed.
Stranding: loose tubes (and fillers), SZ stranded around the CSM.
1 Ripcord.
Outer Sheath: HDPE.
| Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fibers per Tube | No. of(Tubes ) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | ||
| Short Term | Long Term | Short Term | Long Term | |||||
| 24 | 5.6±0.5 | 35±5 | 12 | 2 | 750 | 300 | 1000 | 500 |
| 48 | 5.6±0.5 | 35±5 | 12 | 4 | 750 | 300 | 1000 | 500 |
| 72 | 5.6±0.5 | 35±5 | 12 | 6 | 750 | 300 | 1000 | 500 |
| 96 | 6.7±0.5 | 42±5 | 12 | 8 | 750 | 300 | 1000 | 500 |
| 144 | 8.6±0.5 | 56±5 | 12 | 12 | 750 | 300 | 1000 | 500 |
