ABS Mini type DIN rail 4 core fiber optic terminal box Company

This WT-MINIDIN-02F/04F Fiber optic mini DIN rail mounted terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.

Features

* Standard size, light weight and reasonable structure
* Material: ABS,

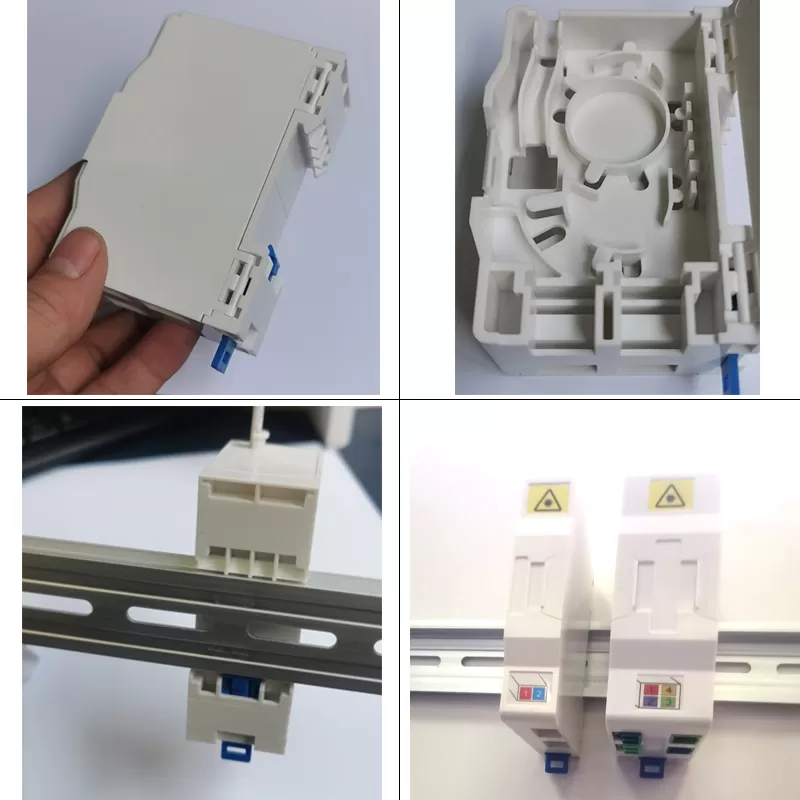

* Din guide rail, easy to install on rack panel in cabinet.
* Applicable to LC SC optical interface
* Compact design, beautiful appearance

Application
* Data centers, premise installations, telecommunication networks
* Ethernet, Fiber Channel, ATM, LAN, MAN and WAN
* Data communication and telecommunication networks
* Indoor/outdoor applications

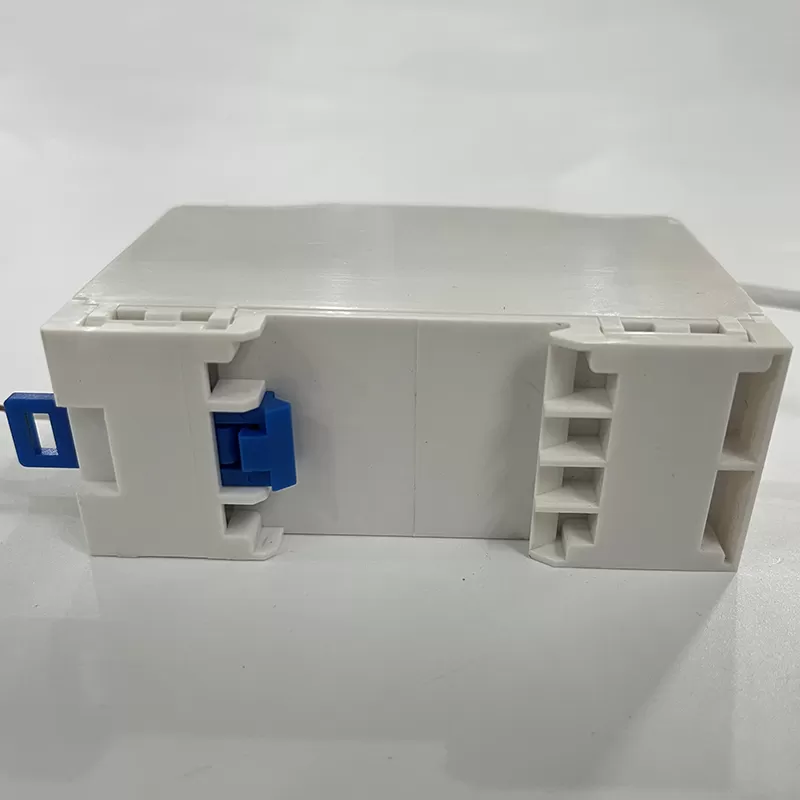

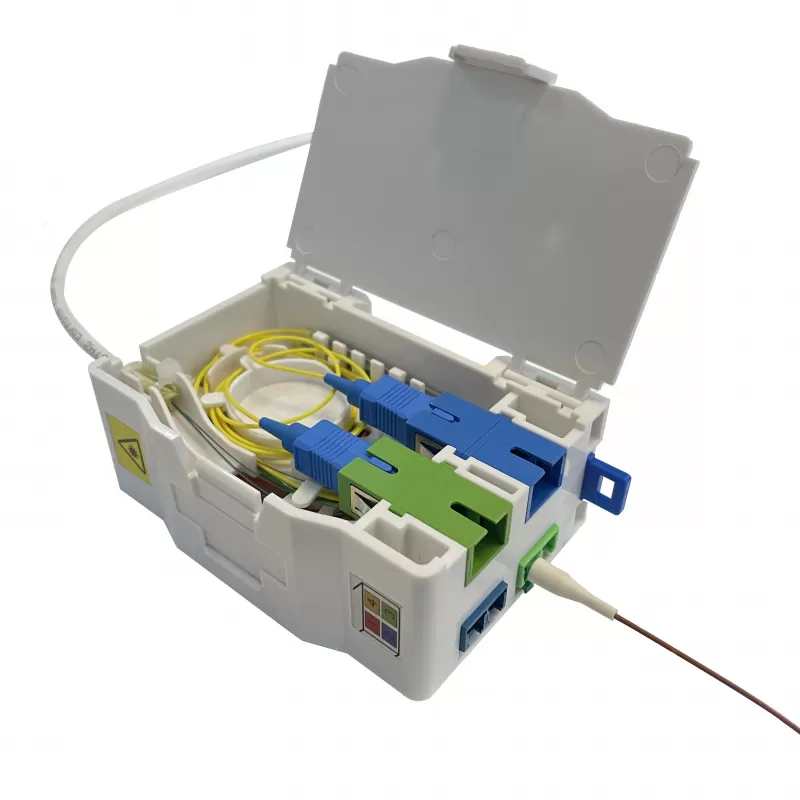

ABS Mini type DIN rail 4 core fiber optic terminal box

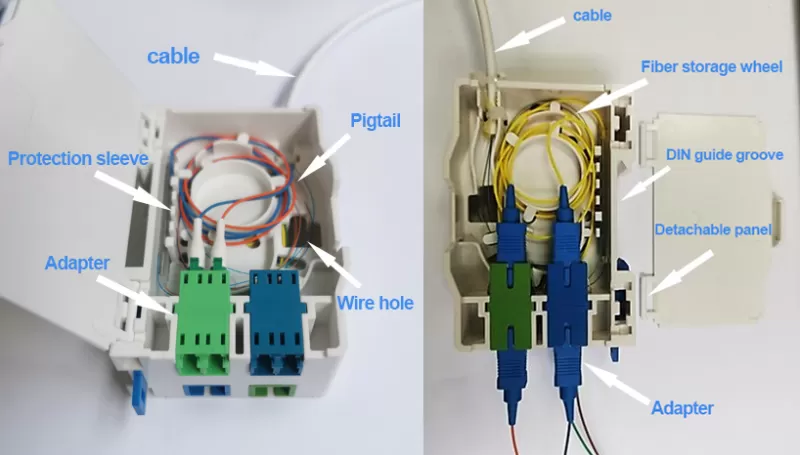

Cable Management:

Dimensions and Capability
Dimensions (WHD)	9031.559.7mm
Material	ABS

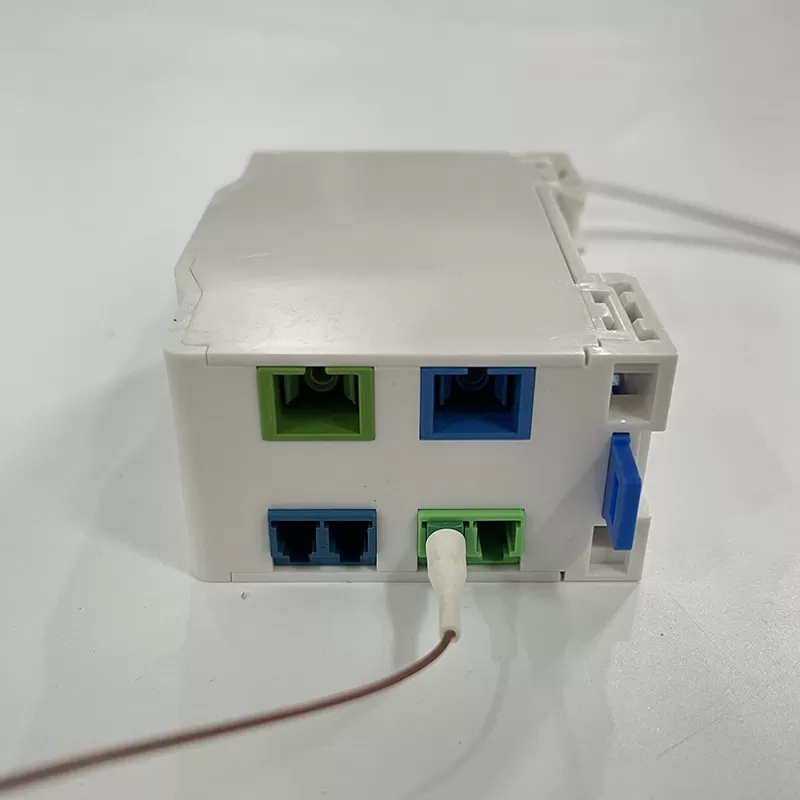

Adapter Capacity	4pcs with SC Simplex or LC duplex adaptor
Number of Cable Entrance/Exit	1/4
Capacity	4cores
Installation	DIN rolling guide
Drop Cable (Round)	Φ5.5mm
Optional Accessories	Adapters, Pigtails, Protection sleeve
Weight	62g（empty）
Color	Gray
Protection grade	IP55

Operation Conditions
Temperature	-40℃ -- 85℃
Humidity	≤85% at 30℃
Air Pressure	70kPa – 106kPa

Shipping Information
Package Contents	· miniDIN box, 1 unit; Nylon cable ties 2pcs ,Fusion fiber protection tube4pcs
Package Dimensions(WHD)	1106535cm
Material	Bubble bag
Weight	80g
