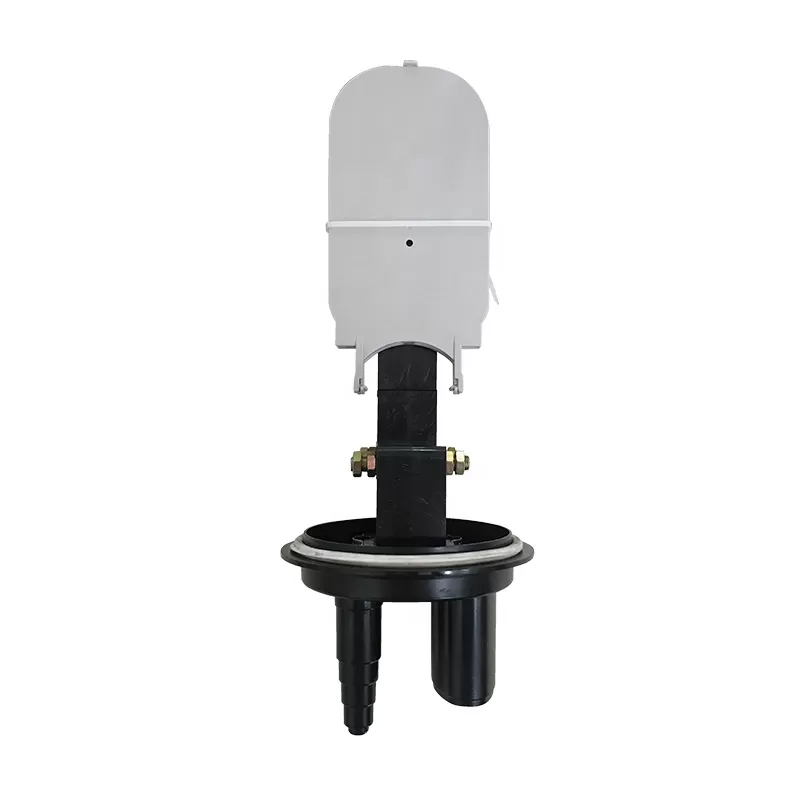

1 In 2 Out 24 core Dome Type Fiber Optic Splice Closure

1 In 2 Out 24 core Dome Type Fiber Optic Splice Closure

Model Number: 1 In 2 Out Splice closure

Dimension(mm): Φ190×435

Weight(Kg): 2.3

Diameter of Cable(mm): Φ7~Φ22

Number of Fibers per Tray: 24(single core)

Max. Number of Trays: 4


share:

Description Contact Us

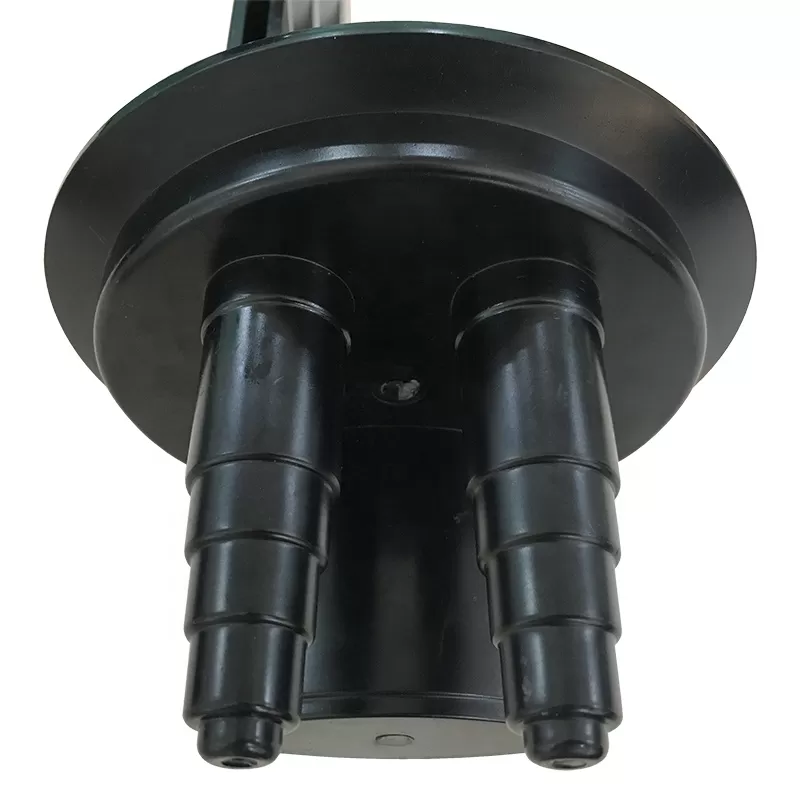

        The Dome Fiber Optic Splice Closure is used in aerial, wall-mounting applications, for the straight-through and branching splice of the fiber cable. The closure has six entrance ports on the end (six round ports). The shell of the product is made from ABS. The shell and the base are sealed by pressing the silicone rubber with clamp allocated. The entry ports are sealed by heat-shrinkable tube. The closures can be opened again after be sealed, reused again without changing the sealing material.


 Dimension(mm)

 Φ190×435

 Weight(Kg)

 2.3

 Diameter of Cable(mm)

 Φ7~Φ22

 No. of Cable Inlet/Outlet

 four

 Number of Fibers per Tray

 24(single core)

 Max. Number of Trays

 4

 Max. Number of Fibers

 96(single core)

 Sealing of Inlet/Outlet ports

 Heat-shrinkable tube

 Sealing of Shells

 Silicon rubber

Item

Type

Quantity

Fiber Optic Splice Sleeve


Allocated by the number of fibers

Buffer Tube

PVC

Allocated by the trays(According to the clients need)

Nylon Ties


4×trays

Heat-shrinkable Tube


6 PCS

Branch Fork


1 PCS

Marking Note


4×cores of fiber cable

Hanging Tools

Aerial-hanging or all-mounting

1 pair

Plastic hoop


1 piece

Plastic wrench


1 piece

Seal ring


1 piece

Sand paper


1 piece

aluminum paper


1 piece

1 In 2 Out 24 core Dome Type Fiber Optic Splice Closure

1 In 2 Out 24 core Dome Type Fiber Optic Splice Closure
