Model Number: WT-TJ-M3RS
Dimension(mm): Φ190×435
Weight(Kg): 2.3
Diameter of Cable(mm): Φ7~Φ22
No. of Cable Inlet/Outlet: 4
Number of Fibers per Tray: 24（single core）
Max. Number of Trays: 4
Max. Number of Fibers: 96(single core)
Sealing of Inlet/Outlet ports: Heat-shrinkable tube
Sealing of Shells: Silicon rubber

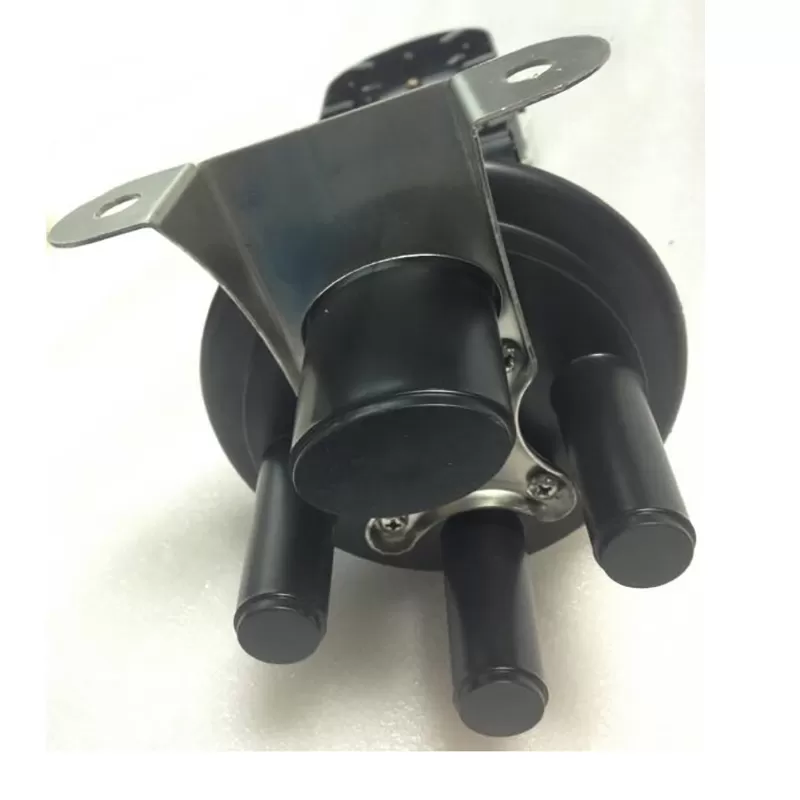

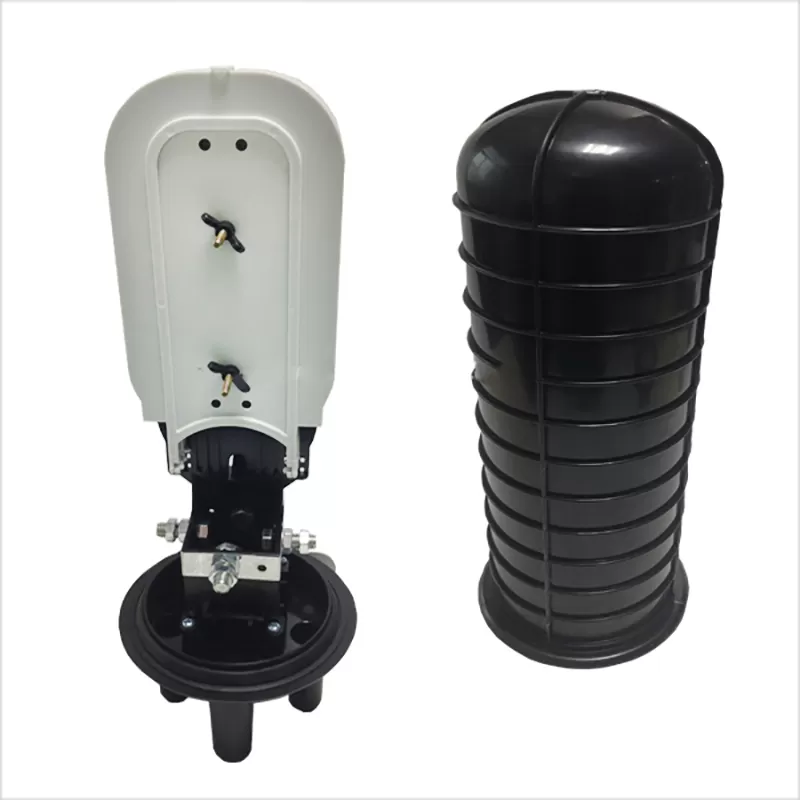

The WT-TJ-M3RS Dome Fiber Optic Splice Closure is used in aerial, wall-mounting applications, for the straight-through and branching splice of the fiber cable. The closure has four entrance ports on the end (three round ports and one oval port). The shell of the product is made from ABS. The shell and the base are sealed by pressing the silicone rubber with clamp allocated. The entry ports are sealed by heat-shrinkable tube. The closures can be opened again after be sealed, reused again without changing the sealing material.
Application:
*Aerial-hanging
*Wall-mounting
Product Specifications
| Item | WT-TJ-M3RS |
| Dimension（mm） | Φ190×435 |
| Weight（Kg） | 2.3 |
| Diameter of Cable(mm) | Φ7~Φ22 |
| No. of Cable Inlet/Outlet | four |

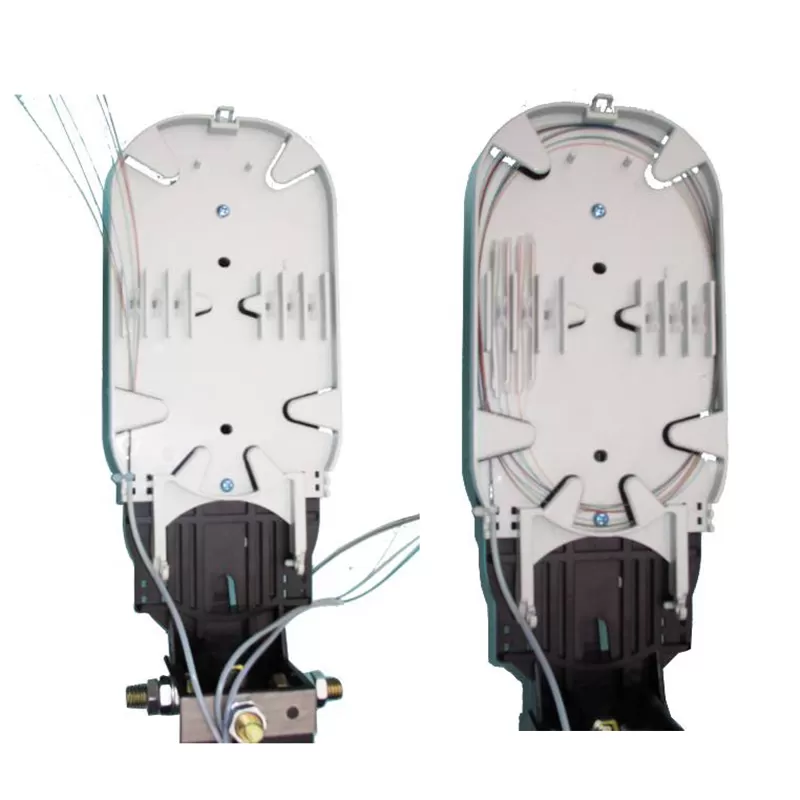

| Number of Fibers per Tray | 24（single core） |
| Max. Number of Trays | 4 |
| Max. Number of Fibers | 96（single core） |
| Sealing of Inlet/Outlet ports | Heat-shrinkable tube |
| Sealing of Shells | Silicon rubber |

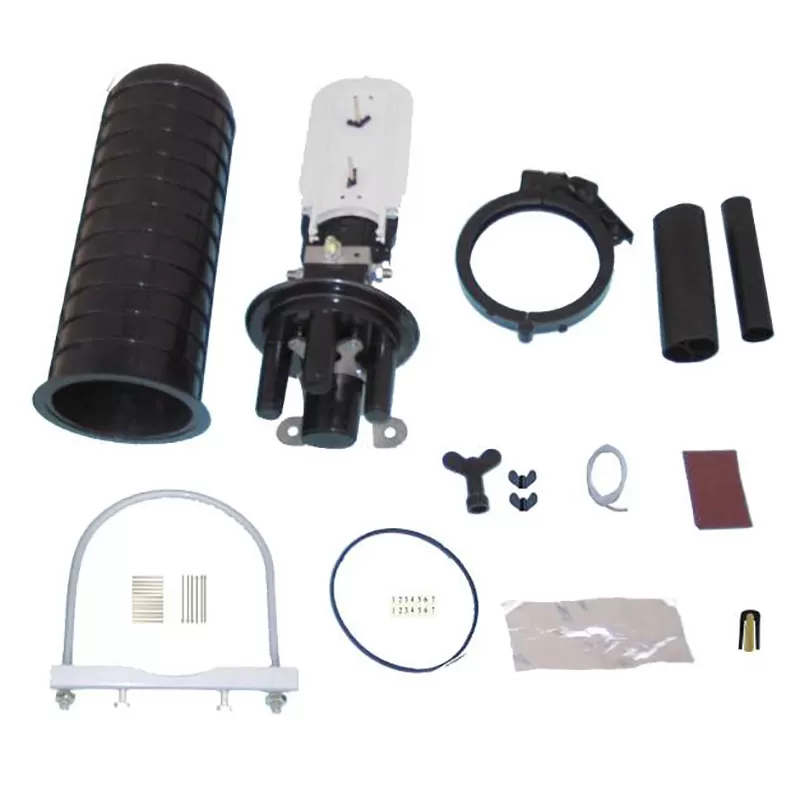

Kit Contents
| Item | Type | Quantity |
| Fiber Optic Splice Sleeve | Allocated by the number of fibers | |
| Buffer Tube | PVC | Allocated by the trays（According to the clients need） |
| Nylon Ties | 4×trays | |
| Heat-shrinkable Tube | Φ32×200 | 4 PCS |
| Heat-shrinkable Tube | Φ70×250 | 1 PCS |
| Branch Fork | 1 PCS | |
| Marking Note | 4×cores of fiber cable | |
| Hanging Tools | Aerial-hanging or Wall-mounting | 1 pair |
| Plastic hoop | 1 piece | |
| Plastic wrench | 2 small and 1 big | |
| Seal ring | 1 piece | |
| Sand paper | 1 piece | |
| aluminum paper | 1 piece |
Tools Required
(1) Blast Burner or Welding Gun
(2) Saw
(3) Minus Screwdriver
(4) Cross-shaped Screwdriver
(5) Pliers
(6) Scrubber
