Model Number: Optical fiber Splice Closure
Cable entry ports: 4 round port + 1 oval port
Max. Tray: 4 trays
Max. Capacity: 96(single core)
Sealing structure: Heat shrinkable sealing
Waterproof grade: IP68
Size: 45.5 * 22.5 * 20.5 cm
Application: Pole mounted

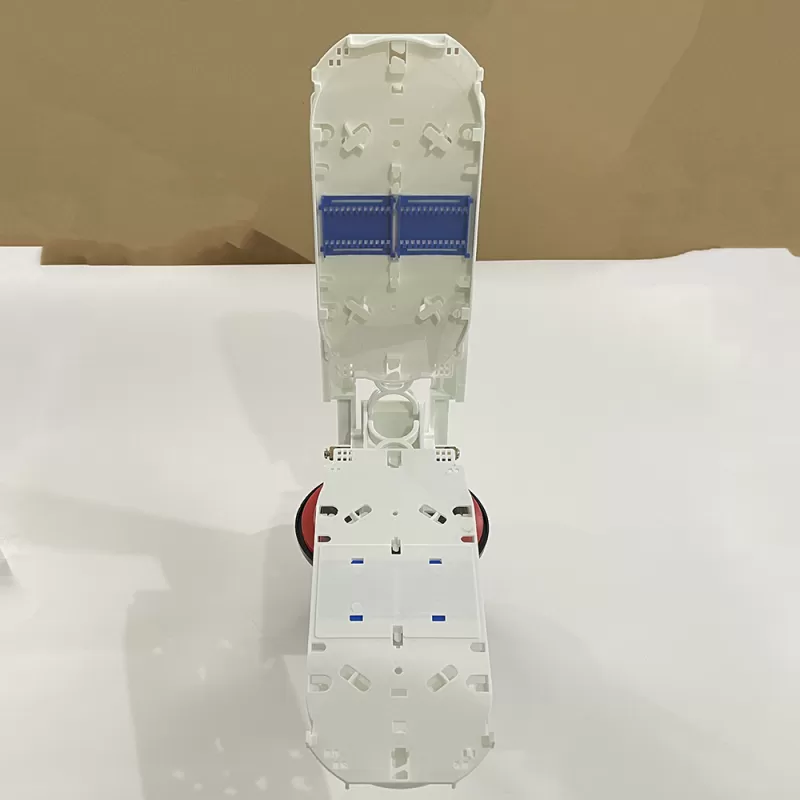

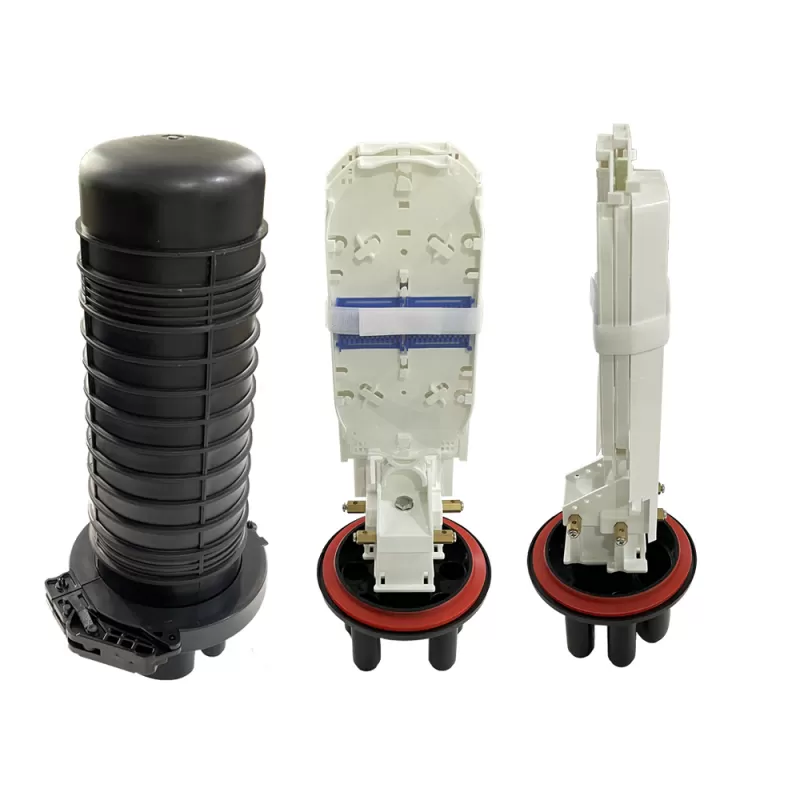

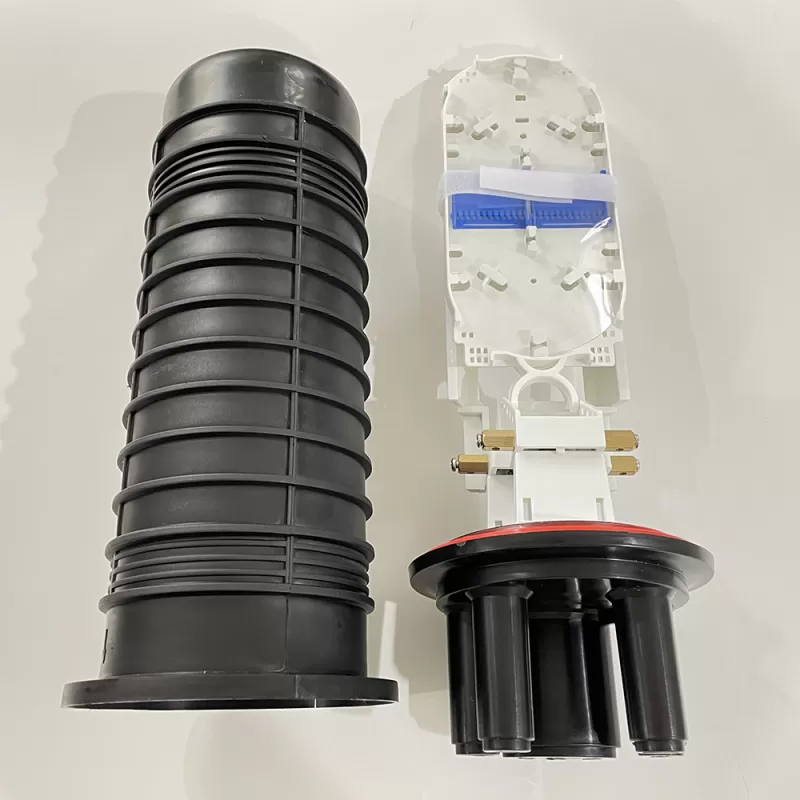

Dome fiber optic splice closures are specially designed to protect joints of optic cable. Excesive fibers can be stored instorage baskets behind the splice trays. The optical fibers are fusion on sides of the tray.One tray can splice 12 fibers; Available for 4 trays to splice total 48 fibers. Adopt PP+ABS material,with anti-UV, anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.
Description
1. Protection grade:IP68
2.Material:PP,ABS

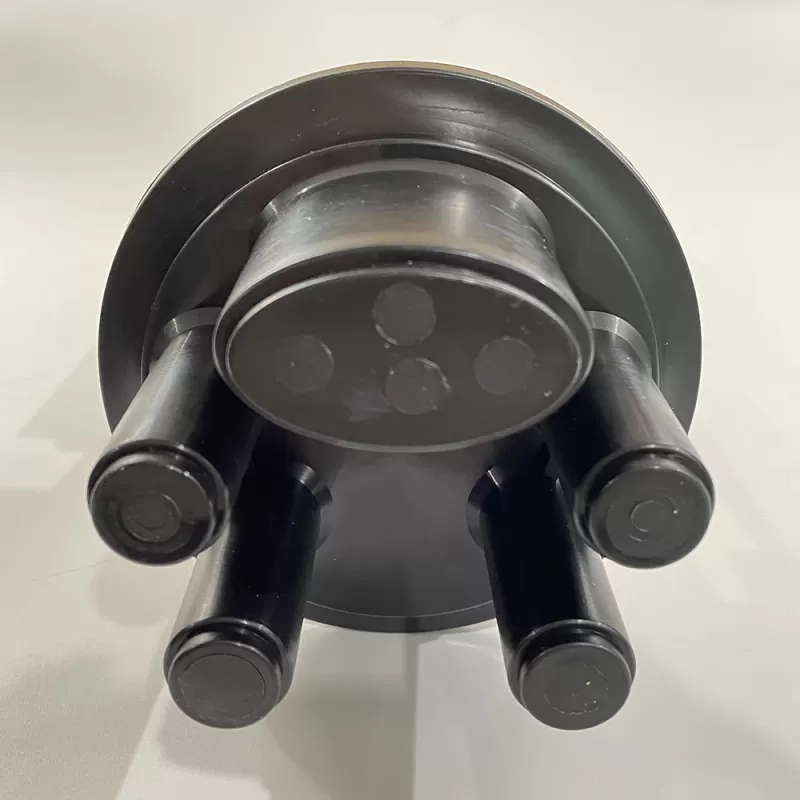

3. Entry ports: 1 oval(34x60mm)+4 x20mmround ports or 6x20mm round ports,
4.Maximum Trays: 4 trays
5. Maximum Cores:96(singlel core)
6.Buffer storge:basket bracket
7. Dimension (HxD):440mm *130mm
8. Environment temp: : -30°℃~+60°℃
9. Pressure:70kPa~106kPa
10.Sealing port:Heat shrinking
11.Life span:more than 25 years
12 .Weight:2.5-3.0Kg
13.Package(mm): 6pcs/cartoncarton size:470*470*620 inner box size:450*210*190
14.Use stainless nut . 15.Suitable for duct ,overhead,bury

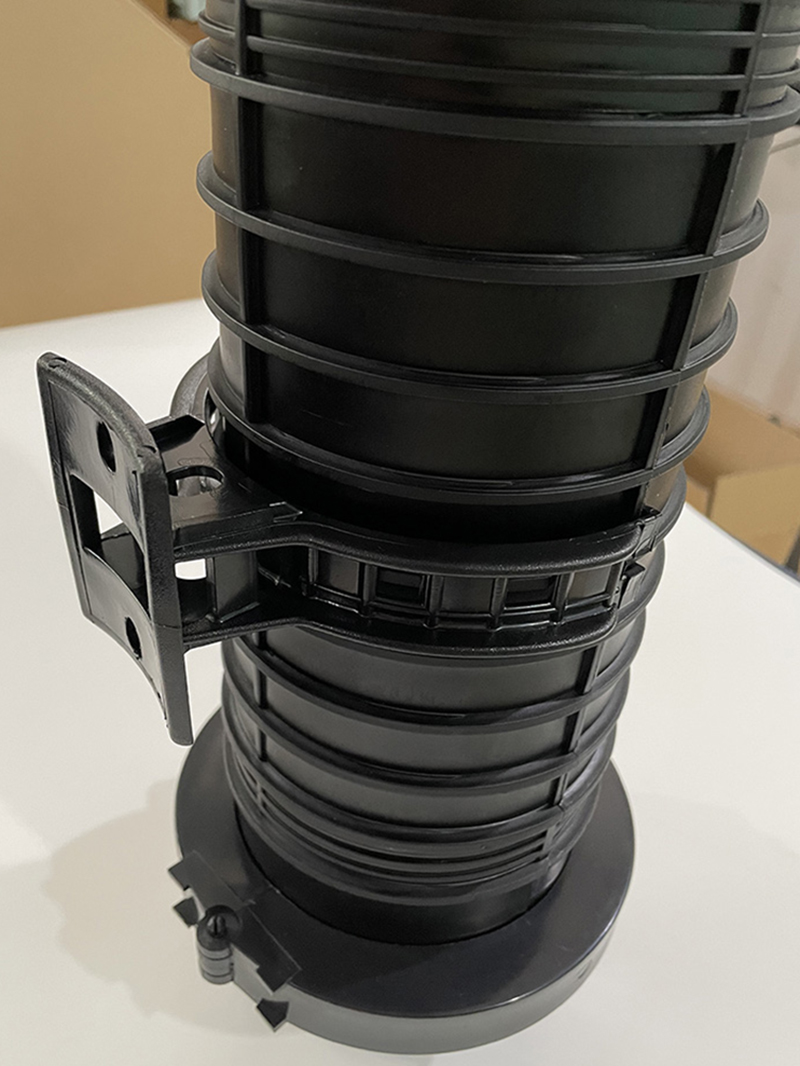

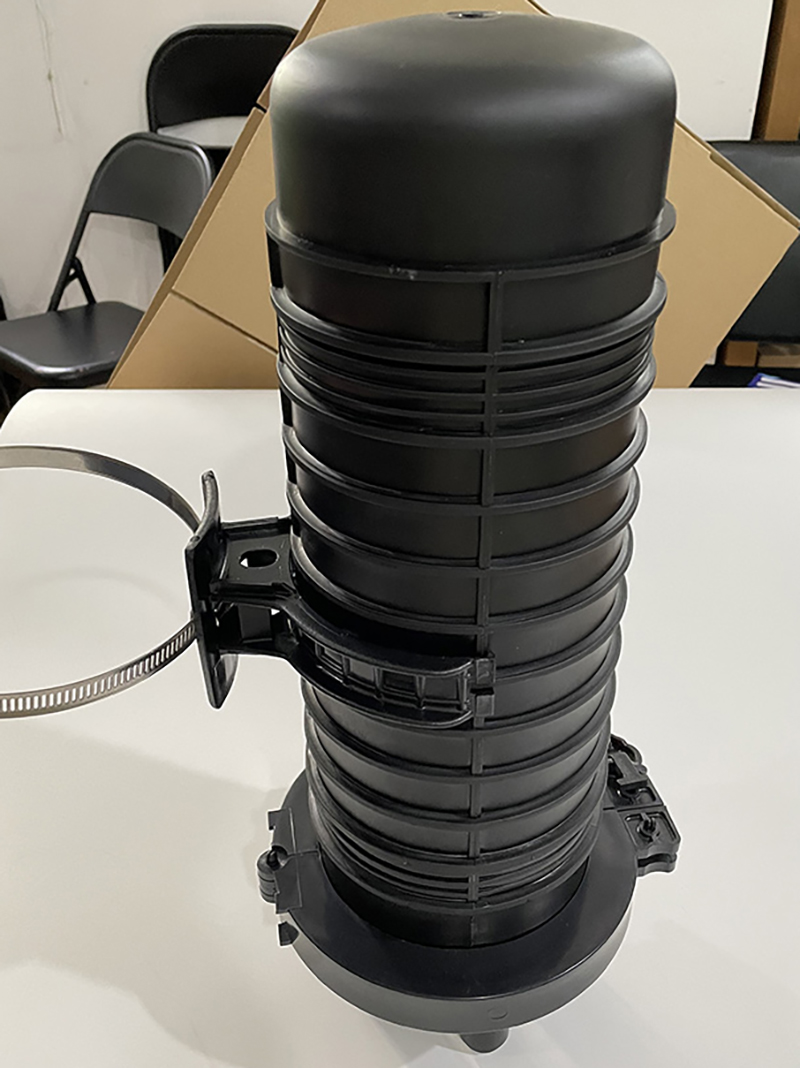

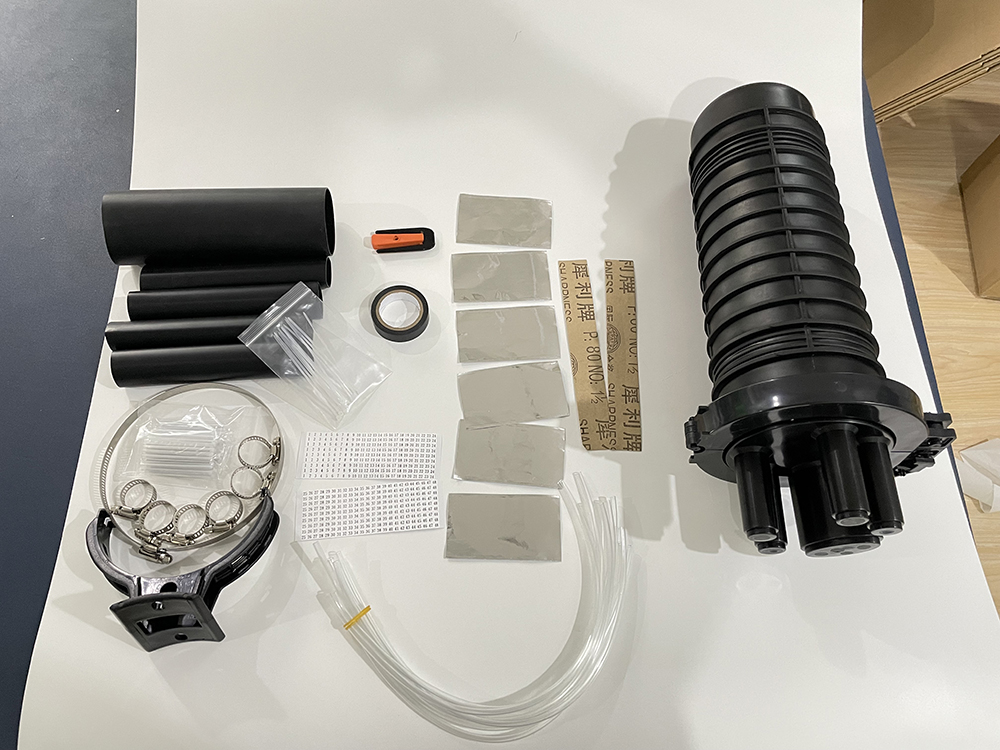

| Product pictures | |
|---|---|
 |  |
 | |
 |  |
 | |
 | |
