Model Number: C31~C38nm
Center Wavelength: ITU 100GHz Grid
Center Wavalength Accuracy: ±0.1 nm
Channel Spacing (GHz): 100
Channel Passband: >0.3 nm
Channel Ripple: ≤0.3 dB
Polarization Dependent Loss: <0.1 dB
Polarization Mode Dispersion: <0.1 ps
Directivity: ≥50 dB
Return Loss: ≥45 dB
Maximum Power Handling: 300 mW
share:
Features
Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path
Application
Channel Add/Drop
DWDM Network
Wavlength Routing
Fiber Optical Amplifier
CATV fiberoptic System
Parameter | 4 Channel | 8 Channel | 16Channel | 18Channel | ||
Center Wavelength (nm) | ITU 100GHz Grid | |||||
Center Wavalength Accuracy (nm) | ±0.1 | |||||
Channel Spacing (GHz) | 100 | |||||
Channel Passband (@-0.5dB bandwidth) (nm) | >0.3 | |||||
Insertion Loss (dB) | ≤1.8 | ≤3.0 | ≤5.0 | ≤5.7 | ||
Channel Ripple (dB) | ≤0.3 | |||||
Isolation (dB) | Adjacent | ≥30 | ||||
Non-adjacent | ≥40 | |||||
Insertion Loss Temperature Sensitivity (dB/℃) | <0.005 | |||||
Wavelength Temperature Shifting (nm/℃) | <0.002 | |||||
Polarization Dependent Loss (dB) | <0.1 | |||||
Polarization Mode Dispersion (ps) | <0.1 | |||||
Directivity (dB) | ≥50 | |||||
Return Loss (dB) | ≥45 | |||||
Maximum Power Handling (mW) | 300 | |||||
Operating Temperature (℃) | -10~+70 | |||||
Storage Temperature (℃) | -40~+85 | |||||

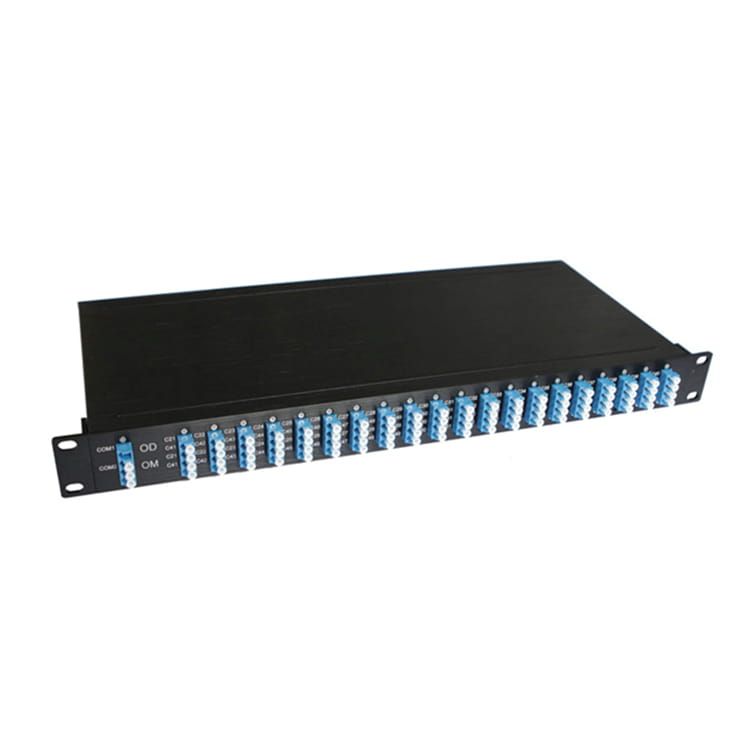

Package Dimension (mm) | L100 x W80x H10.5 | L140 x W115 x 18 | L483×W200×H44 |
