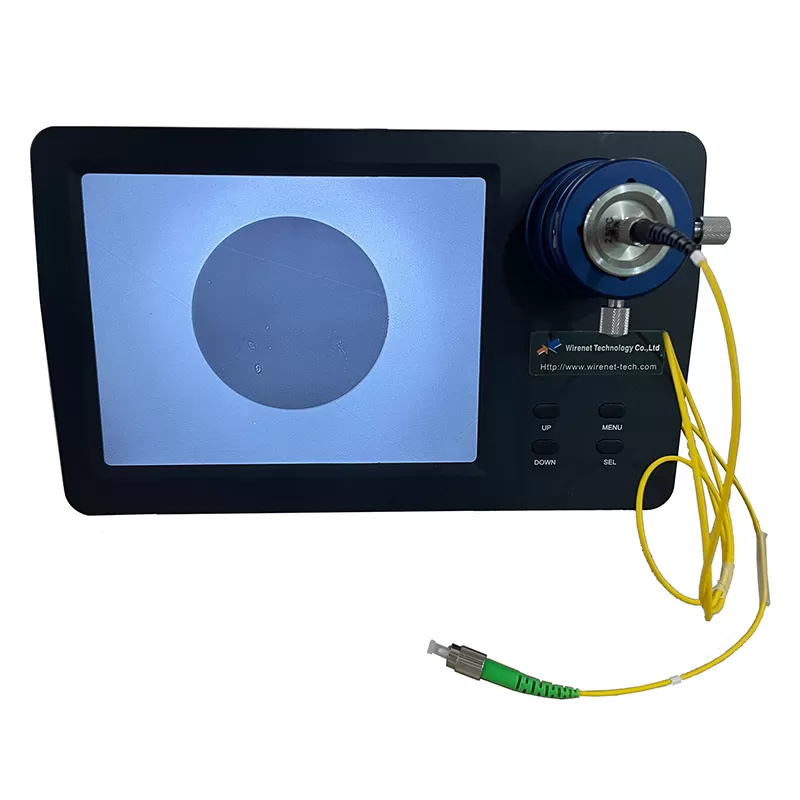

400X Probe endface Inspector Fiber Optic Inspection Microscope For Fiber connector

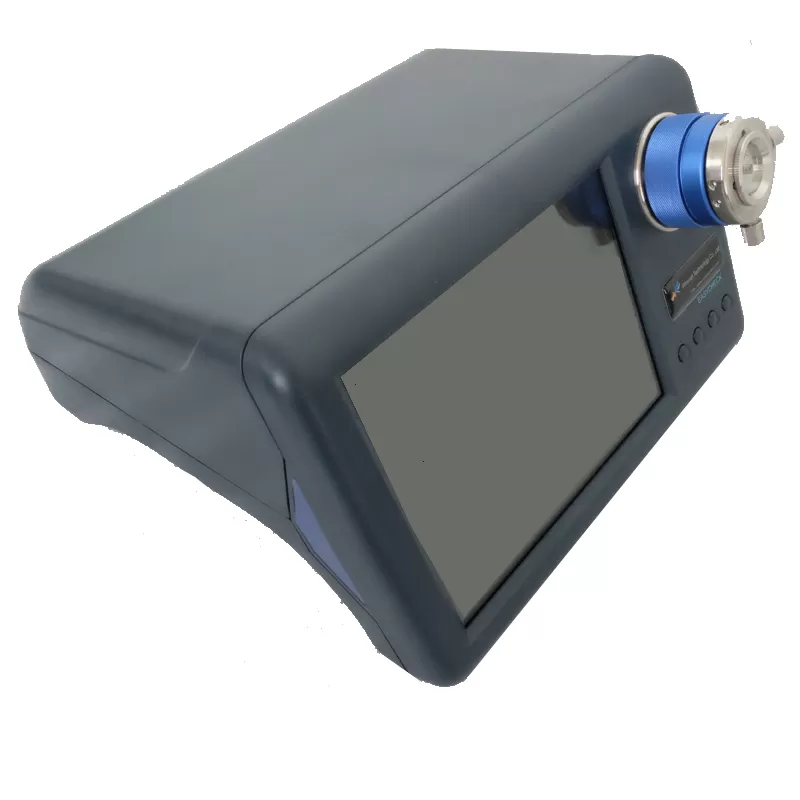

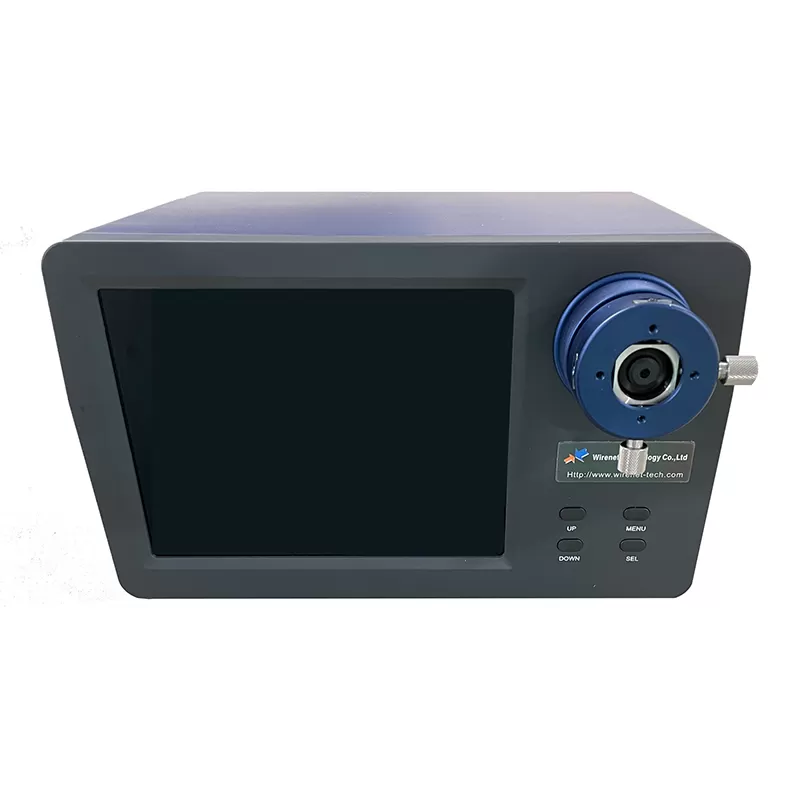

        This is an all-in-one fiber end face inspection instrument, which integrates the optical microscope and display together instead of using a separate design. It has the characteristics of clear images and long service life. It is suitable for a variety of fiber optic connectors.It is a must-have instrument for optical manufacturing

Durability and value

Once used, you can never give up the Wirenet's endface Inspector. Durability has been one of the important factors and this is where and durability and the value lie. Every structure and component comes from elaborate design and selection. The outstanding performance makes inspection become a pleasure, The low price and low failure rate give users real benefits. In a word: Wirenet is the trustworthy choice!

The design concept of integration

Wirenet's endface Inspector combines the compact appearance with enhanced function. Integrated design resulted in smaller size and more convenient operation. It toppled the traditional mode of the microscope and monitor is respectively independent existence. Users can simply connect the power to start the inspection. You are no longer need to worry about the complicated cable between monitor and microscope. Wirenet's endface Inspector helps you save time and space, and improve productively.

Incomparable image quality

Top optical amplification system for coaxial illumination makes the fine defects in the endface of fiber connector clearly visible. High resolution image sensor along with 8’’ black-and-white digital TFT displayer truly shows you all the details of the fiber endface, ensuring the reliability of inspection result.

Convenience

Adhering to the design concept of the optical fiber endface inspector, engineers designed the encircling focus ring to smooth focusing. External adaptor make the various parts easy to plug & pull especially for inspecting TOSA,ROSA.

Precise ceramic adaptor tips

Wirenet's endface Inspector is equipped with 1.25mm, 2.5mm ceramic precise tips which can meet various inspection requirements. The high-level concentricity provides you ideal centered image when replacing different tips. The ceramic casing tips have infinite life. What is more imtipant is that the image will not deviate from center due to attrition.

Features
* Lasting performance and value embodiment
* The design concept of integrated
* Incomparable image quality
* Convenient operation
* Dustproof design
* Image centered design
* Precision ceramic adapter
* Image storage function
* Image input and output functions
* Safety & humanized design
