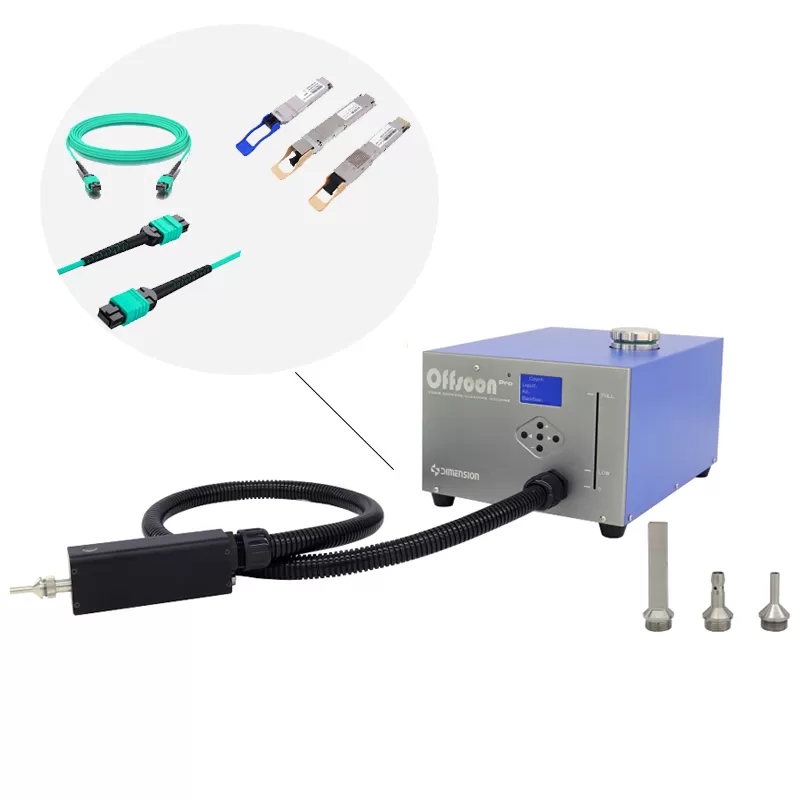

Fiber Endface Cleaning Machine For Patch cord connector fiber Optic Machine Equipment

      Wirenet's latest single-core and multi-core fiber endface cleaning machine can effectively clean the endfaces of fiber connectors, optical devices, optical modules, etc. by configuring multiple precision cleaning interfaces, and can be applied to the cleaning of optical devices.

Main advantages

• Over 98% High Cleaning efficiency

• Non-contact to protect fiber endface

• Built-in High-precision filtering system

• Equipping display and keyboard on the surface

• Time editable for solvent spraying, gas jetting, and sucking back

• Support Single/Multi-fiber endfaces cleaning

• Support fully automated cleaning and inspection system

Main applications

Single multi-core optical connector end face cleaning

Port cleaning of single multi-core optical modules;

TOSA/ROSA End Face Cleaning;

MT plug end face cleaning

< Over 98% High Cleaning efficiency

   Fiber Endface Cleaning Machine improves the cleaning efficiency to more than 98% with a new hardware design to optimize the internal structure and upgrades the filtering device.

Built-in high-precision filtration system

The optical fiber end face cleaner is equipped with high-precision filtration systems such as air filters, oil mist separators, and micro-mist separators to ensure that there are no foreign residues during the cleaning process.

The filter device is located at the bottom of the device for easy replacement and cleaning

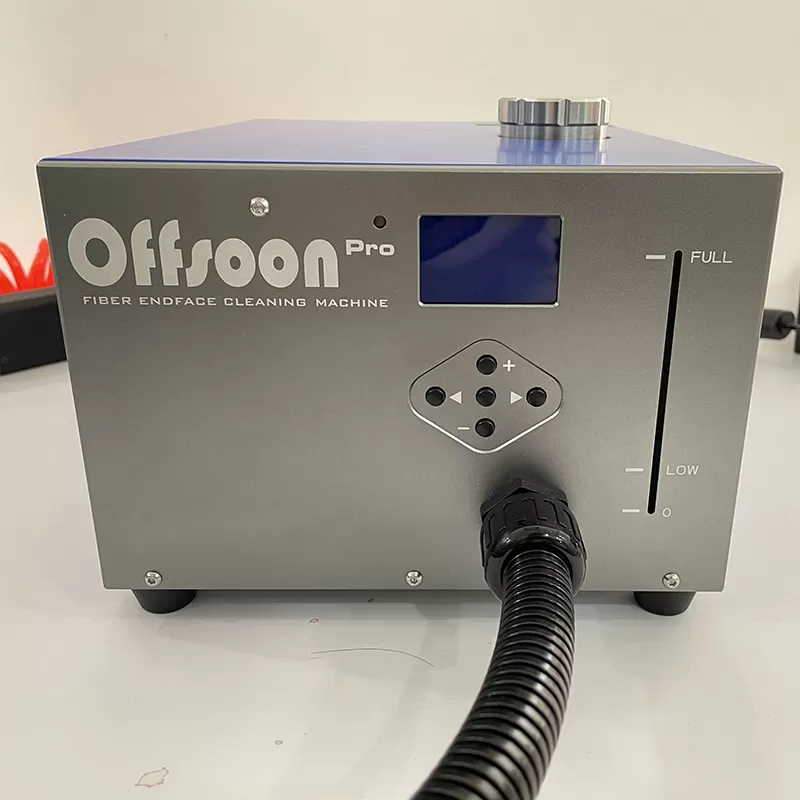

Intuitive display of program settings

Equipped with a display screen that can intuitively display the number of cleaning times and the duration of spraying, injection, and suction; there are also default parameters for common cleaning types for users to refer to;

buttons are reserved and users can set them according to their needs; spraying, injection, and suction time

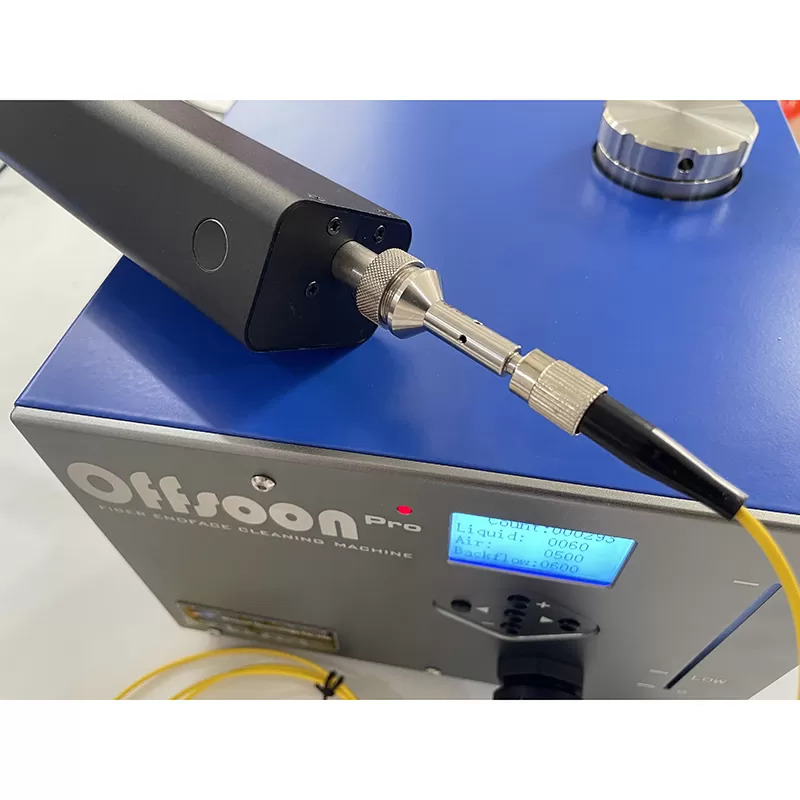

The handle is small and easy to operate

The end face cleaning machine controller is small in size and perfectly integrated into the aesthetic design of the human palm; it minimizes operating fatigue; the interface of MT and other models is easy to install and replace;

the actual end of the handle can be connected to an independent cleaning cotton swab device

Safe and user-friendly design

Efficient and conservative cleaning liquid filling method saves time and effort; non-contact cleaning will not damage the end face; the liquid and gas sprayed by the machine are directly pickled into the reflection system under

high pressure and will not cause harm to the human body

Support single-core and multi-core optical device end face cleaning

It is equivalent to having a rich cleaning interface, which can realize the effective cleaning of the end faces of optical devices such as single-core and multi-core optical fiber connectors, single-core and multi-core optical modules,

TOSA/ROSA, MT plugs, etc.

Can be used in automated production lines

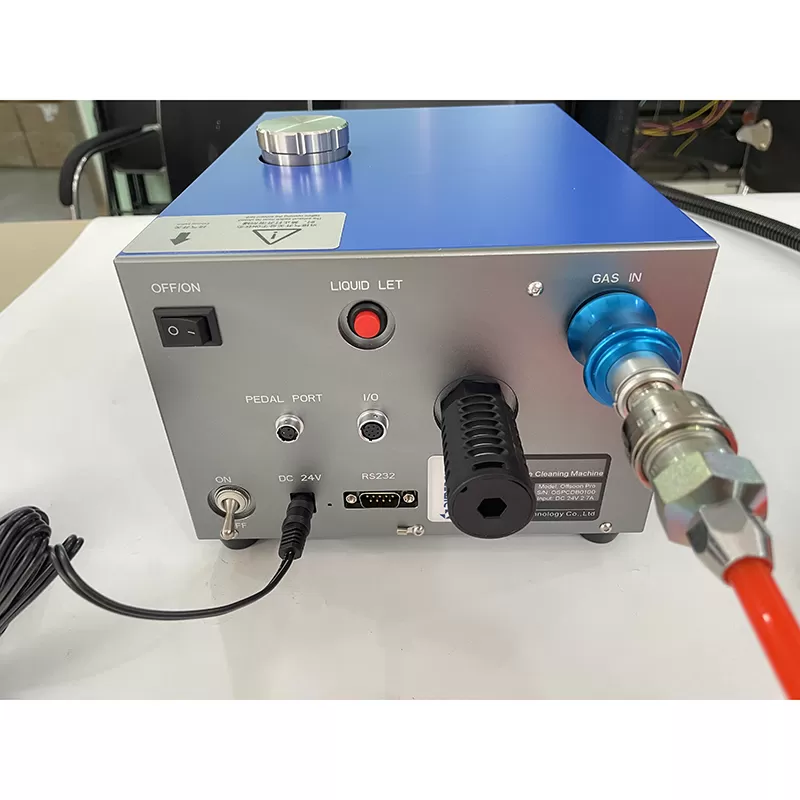

With I/O communication interface and RS232 communication interface, combined with automatic loading and unloading system and fully automatic optical fiber end face detector, a fully automatic cleaning and testing system

for optical devices is formed, which can effectively improve the production and testing efficiency of optical devices
