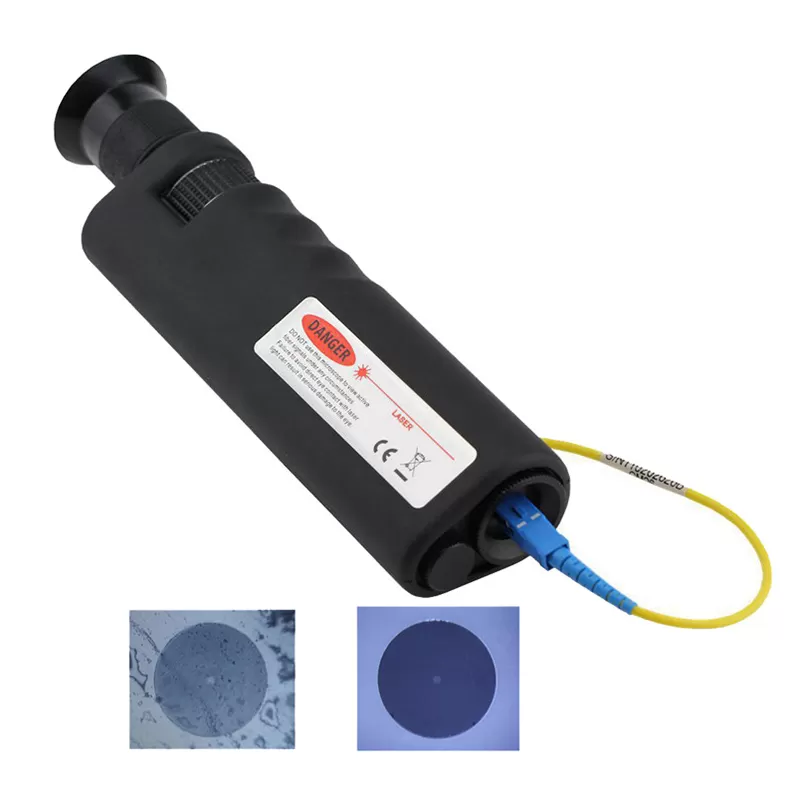

Handheld 400x Magnification endface detector optical Fiber Inspection Microscope

Handheld 400x Magnification endface detector optical Fiber Inspection Microscope

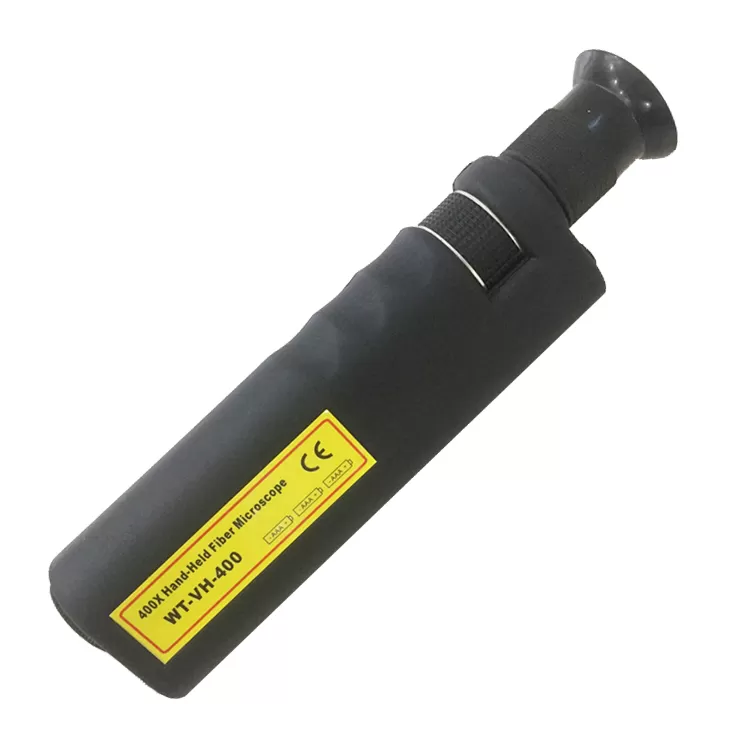

Model Number: WT-VH-400

Housing Material: Anti-Slip-Rubber

Optical Magnification: 400X

Adapter Interface: User interchangeable adapters

Power Source: 3 pieces of AAA batteries (not included)

Single package size: 35X10X7 cm

Single gross weight: 0.500 kg

share:

Description Contact Us

     The Fiber Microscopes are used for inspecting fiber terminations in the field. With their good optical performance and integrated laser safety filters, they provide the most critical view of fiber end faces. This renders scratches highly visible and is the clear choice for field termination in sensitive installations.


Features

Portable and easy to use, ideal for filed operation
Magnification: 400 times, can be used in both SM and MM fibers
Optical Connector: 2.5mmuniversal adapter, 1.25mm universal adapter
Color: Black or white
Power Supply: AAA batteries
Battery Life: 40hours

A specialized design to protect the eyesight


Handheld 400x Magnification endface detector optical Fiber Inspection Microscope

Handheld 400x Magnification endface detector optical Fiber Inspection Microscope

Handheld 400x Magnification endface detector optical Fiber Inspection Microscope

Handheld 400x Magnification endface detector optical Fiber Inspection Microscope

Handheld 400x Magnification endface detector optical Fiber Inspection Microscope

Handheld 400x Magnification endface detector optical Fiber Inspection Microscope

Handheld 400x Magnification endface detector optical Fiber Inspection Microscope

Optical Magnification
400X
Power Requirements
3 "AAA" alkaline batteries
Weight
0.6KG
Controls

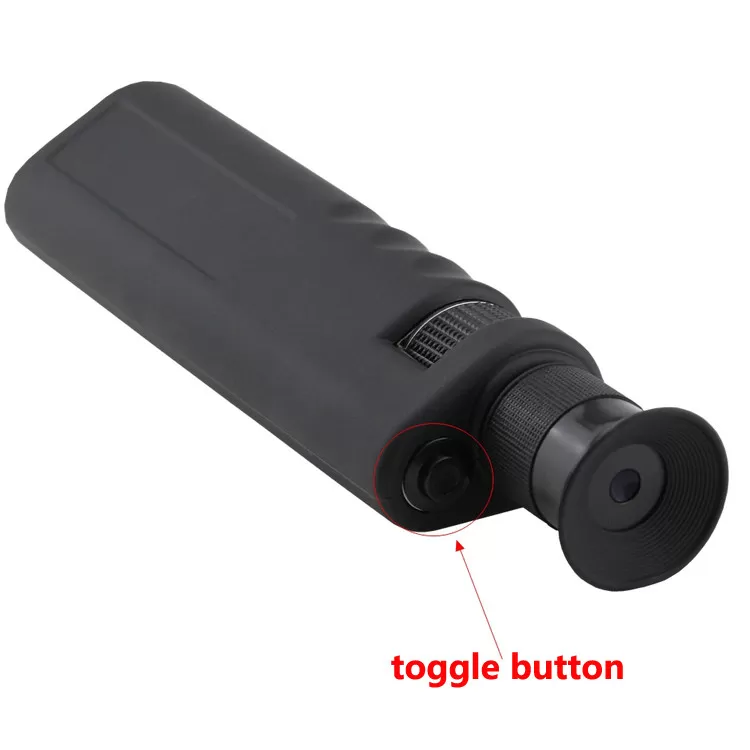

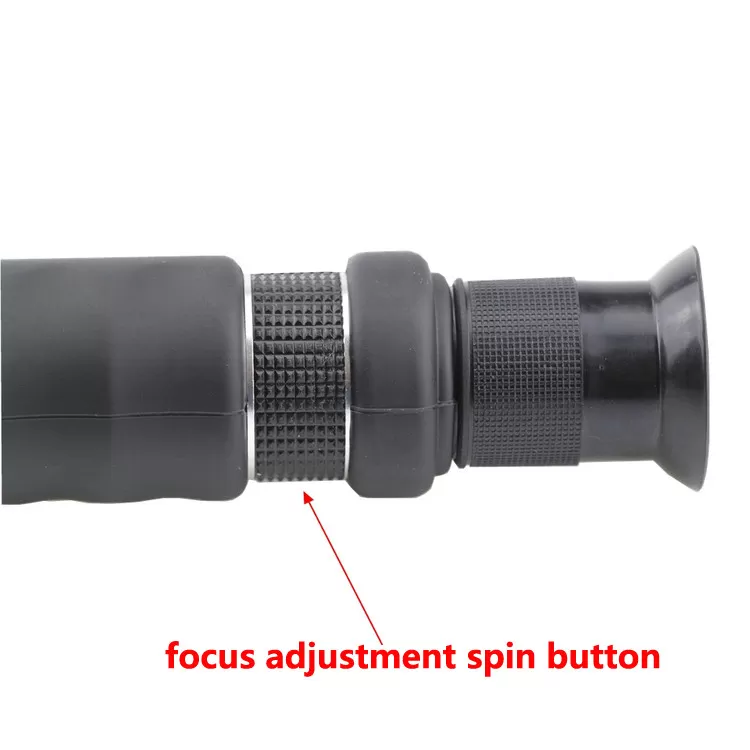

Momentary on/off switch Fine-Focus control
Safety Filter
Built-in
Connector
2.5mm & 1.25mm adaptor
