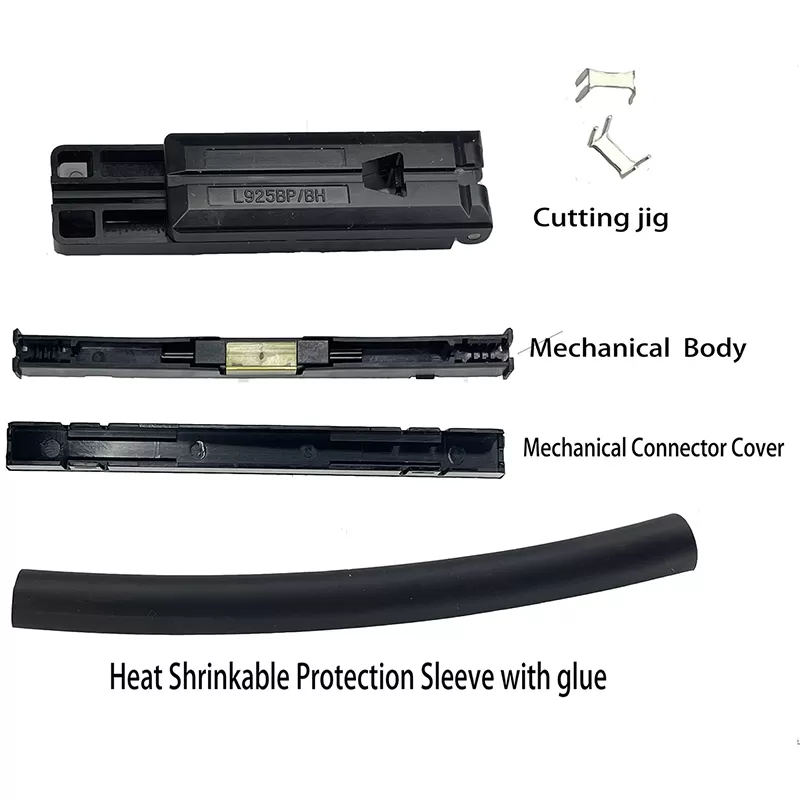

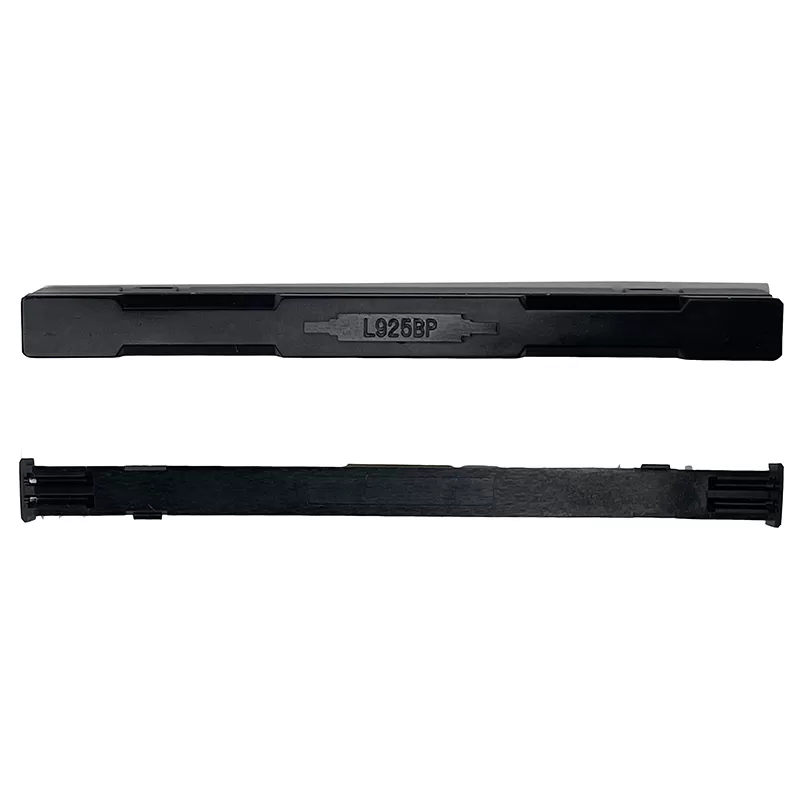

Fiber Mechanical Splice

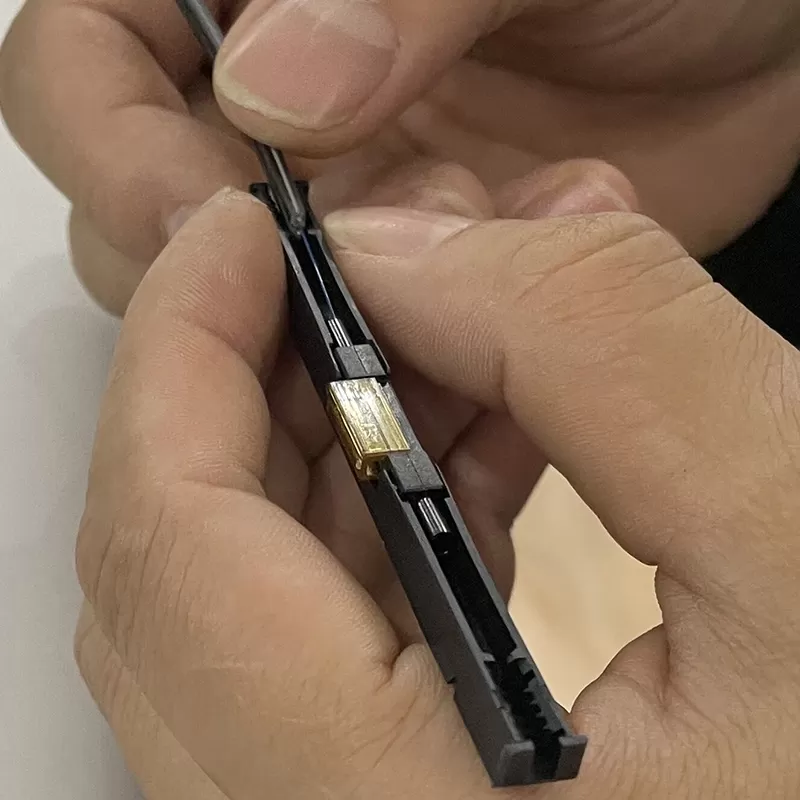

Fibre drop wire mechanical connector is used to splice two fibres mechanically. In a mechanical splice, two cleaved fiber tips are mechanically aligned to each other by a special housing. Usually index matching gel is positioned between the fiber tips to maximize coupling and minimize back reflection

Application
Fiber drop wire mechanical connector provides alternatives to fusion splicing of fiber drop
cables and it is used to perform emergency mechanical splicing in FTTH network.
cables and it is used to perform emergency mechanical splicing in FTTH network.

	Feature	Requirement
General	Cable type	2.0 x 3.1 mm drop cable
	Applicable mode	single
	Product dimension	9087mm
	Color	Black
	Availability of sufficient gel	Yes
Characteristics	Insertion loss	≤ 0.30dB
	Return loss	≤ -50dB
	Success rate	>98%
	Reusability times	≥10times
	Fastening strength of naked fiber	>5 N ΔIL≤ 0.1dB
	Clamping force of fiber with tight buffer	>8 N ΔIL≤ 0.1dB
	Tensile strength	>50 N IL ≤ 0.2dB
	Drop off test (4 meters high, cement floor, three directions	IL ≤ 0.3dB
Other Requirements	Optical fiber cladding diameter	125μm (G.657 A2)
	Work temperature	-40 ~+75C
	Material Durability	Must withstand solar U V radiation

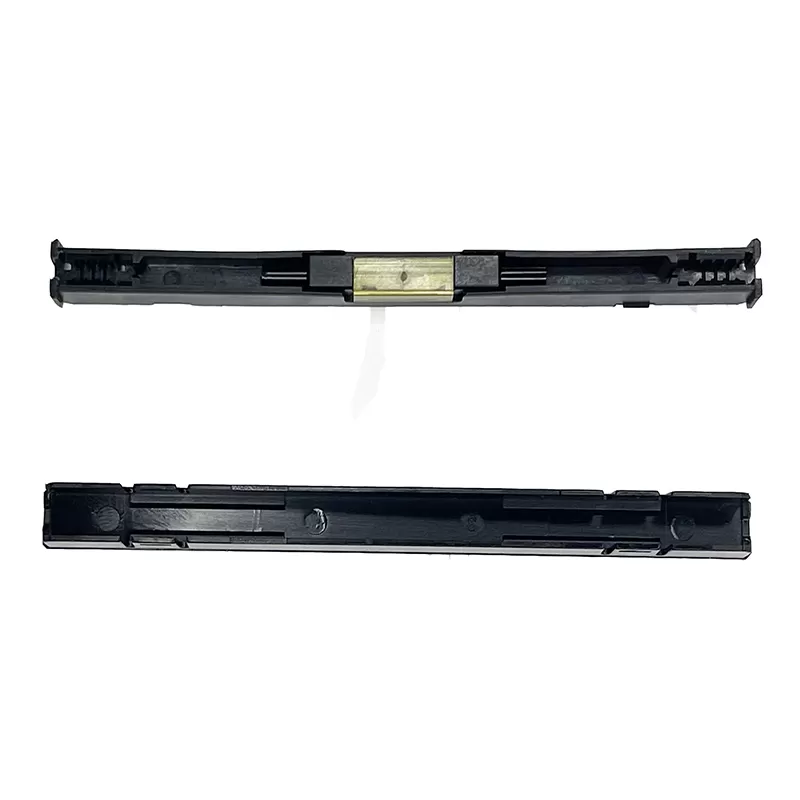

Optical Cable Assembly Fast Connector Fiber Mechanical splice for emergency repair
