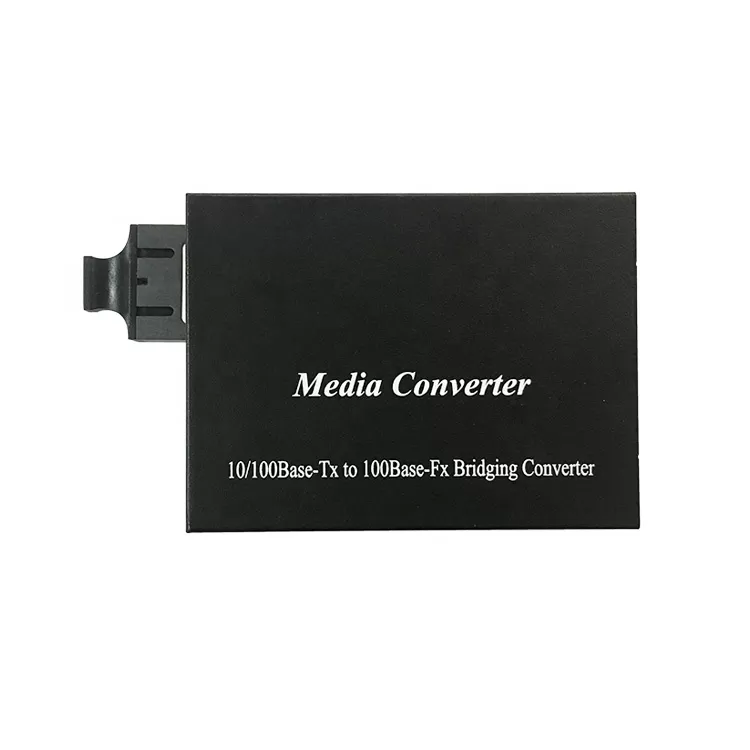

10 100 Base Tx to 100Base Fx Bridging Fiber Ethernet Media Converter

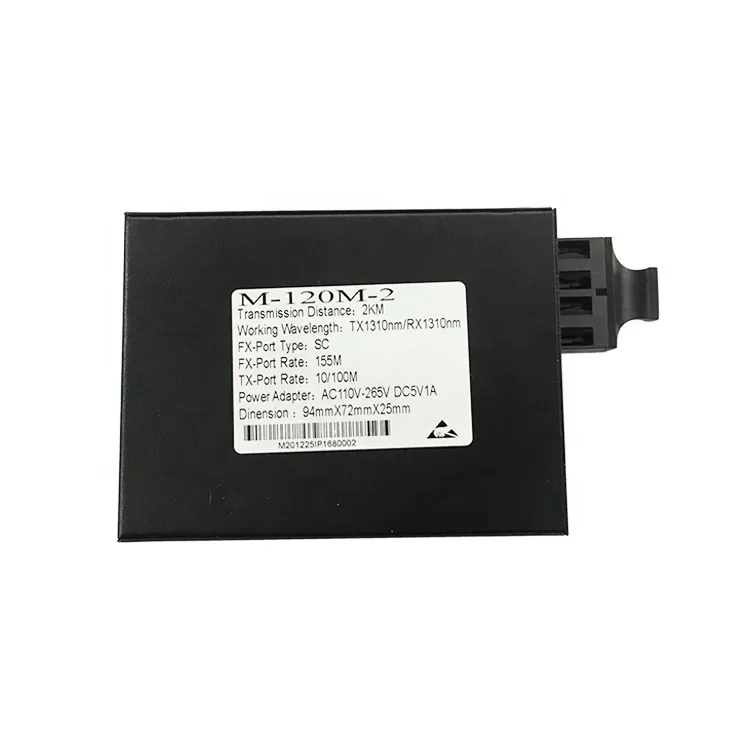

Model Number: WT-MC-11

Wavelength: TX1310nm/RX1310nm

FX-Port Type: SC

FX-Port Rate: 155M

TX-Port Rate: 10/100M Port

Transmission distance: 2km

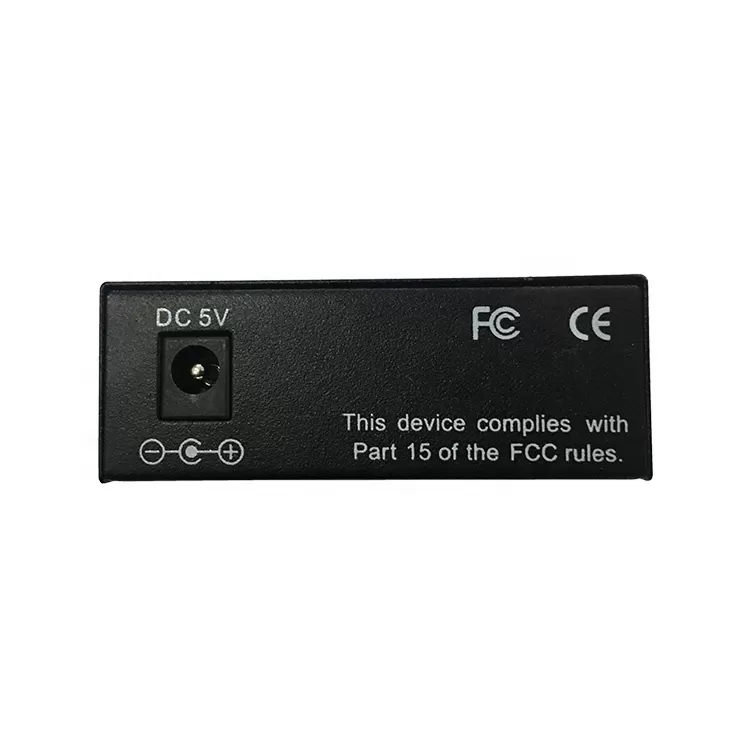

Power supply: AC110V-265V DC5V1A

Single package size: 20X20X10 cm

Single gross weight: 1.000 kg

Inquire Now Next Product

Description Contact Us

Features :
1.Full duplex and half duplex transmission and capable of automatic negotiation. efficient builtin switching core ,to implement flow control and reduce broadcast packets.

2.The transmission of extra-long packes over VLAN
3.The selection of mutiple types of fiber ports such as dual-fiber multi-mode .dual-fiber single mode and single fiber single mode, to satisty the extended requirements of users.

Parameter	Specifications
Access mode	10/100Mbps
Standard	IEEE802.3 10Base-T Ethernet,IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree
Wavelength	850nm/1310nm/1550nm
Transmission distance	Dual-fiber multi-mode: 2Km; dual-fiber single-mode: 25/40/60/80/100/120Km; single-fiber single-mode: 25/40/60/80/100Km Category-5 twisted pair: 100m
Port	One RJ45 connector, connected to STP/UTP category-5 twisted pair One fiber port: Multi-mode - SC or ST (fiber size: 50,62.5/125µm) Single mode - SC/FC fiber port (fiber size: 9/125µm) Single-fiber single-mode - SC/FC fiber port (fiber size: 9/125µm)
Conversion mode	Medium conversion, storing and forwarding
MAC address table	IK
Buffer space	1Mbit
Flow control	Full duplex state: flow control; half duplex state: back pressure mode
Delay	9.6us
Bit error rate	<1/1000000000
MTBF	100,000 hours

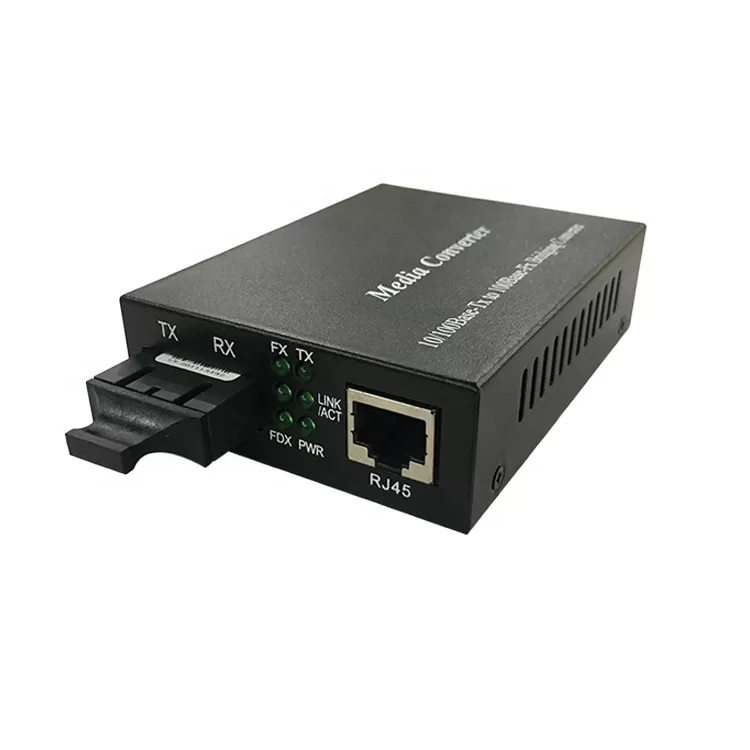

LED	Power TX link ( fiber link action ), TP LINK1000, TP LINK100, TP ACT ) FDX (FX full duplex mode), FX100 (Fiber, with a transmission rate of 100M) TP1/2/3/4 LINK/ACT (1/2/3/4-port twisted pairs connection action) TP1/2/3/4100 (1/2/3/4-port twisted pairs, with a transmission rate of 100M)
Power	AC220 0.5A/PC-48(builtin)
Power consumption	5W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Storage temperature	-40~70ºC
Storage humidity	5%~90% (non-condensing)

Ordering Choice:

10/100M Fast Ethernet Media Converter 1 FX port & 1 RJ45port
WT-MCMA-11-2	10/100M1310nm dual fiber 1*9 MM 2Km
WT-MCSA-11-20	10/100M 1310nm dual fiber 1*9 SM 20Km
WT-MCSA-11-40	10/100M 1310nm dual fiber 1*9 SM 40Km
WT-MCSA-11-60	10/100M 1310nm dual fiber 1*9 SM 60Km
WT-MCSA-11-80	10/100M 19 1550nm DFB dual fiber 19 80Km
WT-MCSA-11-100	10/100M 19 1550nm DFB dual fiber 19 100Km
WT-MCSA-11-120	10/100M 19 1550nm DFB dual fiber 19 120Km with APD
WT-MCSB-11-20A	10/100M 1*9 BiDi SM 20Km TX1310/RX1550nm
WT-MCSB-11-20B	10/100M 1*9 BiDi SM 20Km TX1550/RX1310nm
WT-MCSB-11-40A	10/100M 1*9 BiDi SM 40Km TX1310/RX1550nm
WT-MCSB-11-40B	10/100M 1*9 BiDi SM 40Km TX1550/RX1310nm
WT-MCSB-11-60A	10/100M 1*9 BiDi SM 60KM TX1310/RX1550nm
WT-MCSB-11-60B	10/100M 1*9 BiDi SM 60Km TX1550/RX1310nm
WT-MCSB-11-80A	10/100M 1*9 BiDi SM 80KM TX1310/RX1550nm
WT-MCSB-11-80B	10/100M 1*9 BiDi SM 80Km TX1550/RX1310nm
