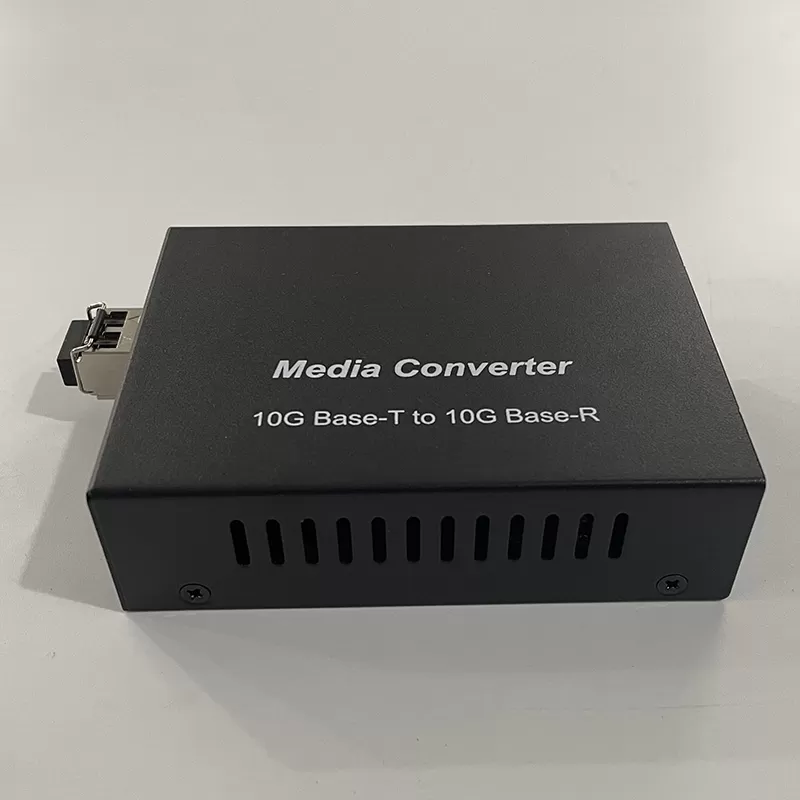

ACTX MM LC 10GBPS 10G RJ45 Copper Ethernet to SFP Fiber Media Converter Wholesaler

It is a standalone 10G media converter that supports 10Gigabit Ethernet media conversion from 10GBase-T to the 10GBase-X fiber via an open SFP+ slot. This 10G Ethernet media converter is designed with a 10Gbase Ethernet PHY chip that smoothly connects two types of segments. This converter can be used as a standalone unit or as the slide-in module to the 19” converter rack Chassis for use at a central wiring closet.

Flexible and Reliable High-Speed Network Distance Extension Solution

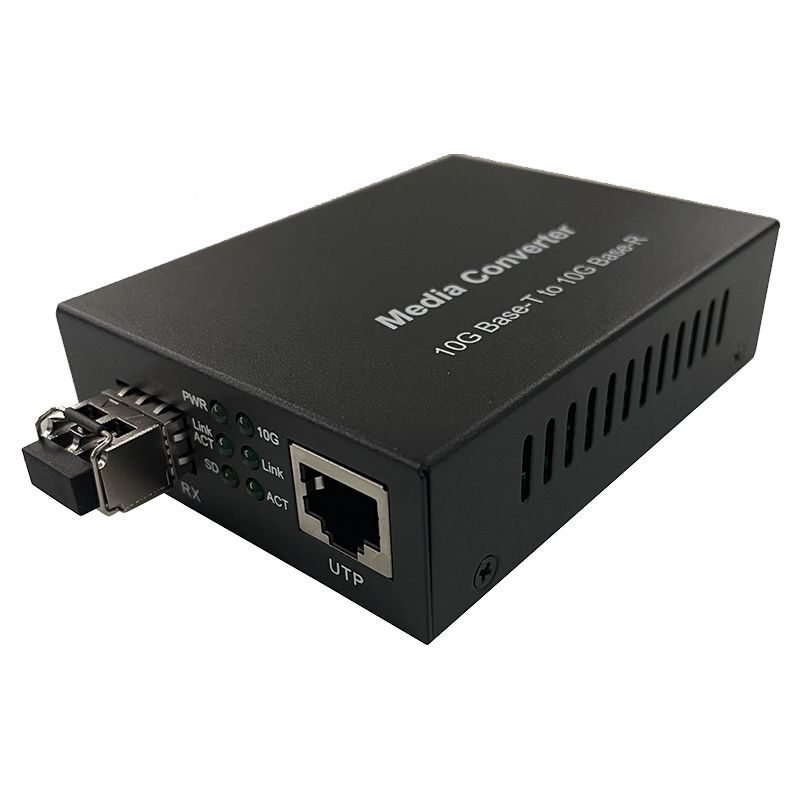

This 10G Ethernet media converter is equipped with one RJ-45 auto-negotiation port and one open SFP+ slot. The RJ-45 port auto-negotiates with 10GBASE-T, 5GBASE-T, 2.5GBASE-T, and 1000BASE-T. The open SFP+ slot supports a wide range of 10G SFP+ transceivers include 10GBASE-SR, 10GBASE-LR, 10GBASE-LRM, 10GBASE-ER, 10GBASE-ZR, 10GBASE-BX and 10GBASE-CWDM. It provides an ideal solution to extend the transmission distance of traditional 10G copper (RJ45) based network. You could achieve a max of 80 kilometers by choosing a 10GBASE-ZR SFP+ fiber module over Singlemode fiber. This 10G SFP+ fiber media converter is suitable for use in network environments where ultra-high bandwidth provided by 10G Ethernet is required.

It provides an ideal solution to extend the transmission distance of traditional 10G copper (RJ45) based network. You could achieve a max of 80 kilometers by choosing a 10GBASE-ZR SFP+ fiber module over Singlemode fiber. This 10G SFP+ fiber media converter is suitable for use in network environments where ultra-high bandwidth provided by 10G Ethernet is required.

Features

• Cost-effective migration from 10GBase-T copper to 10GBASE-X fiber SFP+
• Auto-negotiation function allows UTP ports to auto select 1G/2.5G/5G/10GBase-T
• The UTP port supports the connection of MDI/MDI-X auto crossover
• Open SFP+ slot to customize the network extension distance to your requirements with any MSA 10G SFP transceiver
• Supporting flow control

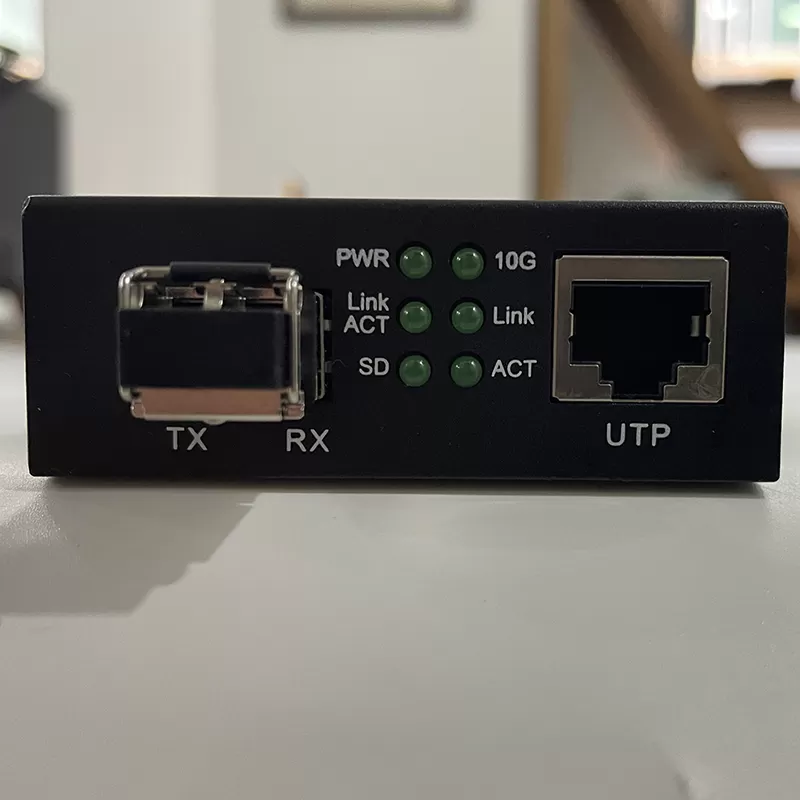

• Easy-to-view LED indicators to provide status to monitor network activity easily
• ROHS compliant and Lead-Free

Product Series	10G Ethernet Media Converter	Standards and Protocols	IEEE 802.3 IEEE 802.3an IEEE 802.3ae IEEE 802.3az
Ports	1 x 10GBASE-T RJ45 port 1 x 10GBASE-X SFP+ port	Network Media	1000Base-T: Cat5 UTP/STP. MAX 100m; 2.5GBase-T: Cat5e UTP/STP. MAX 50m; 5GBase-T: Cat5e UTP/STP. MAX 50m; 10GBase-T: Cat6a UTP/STP. MAX 50m; 10GBase-X: Multimode or Singlemode Fiber (max 80km, depends on the SFP+ module)
Flow control	Full Duplex: IEEE802.3x Half Duplex: back pressure	LED indicator	Power, FX 100, FX Link/Act SD, 10G, TX Link, TX Act
Jumbo Frame	9.6K	Enclosure	Compact-sized metal case
Wavelength	Depends on SFP+ Transceiver	Fiber Type	Multimode or Singlemode Fiber
Transmitter Power	Depends on SFP+ Transceiver	Receiver Sensitivity	Depends on SFP+ Transceiver

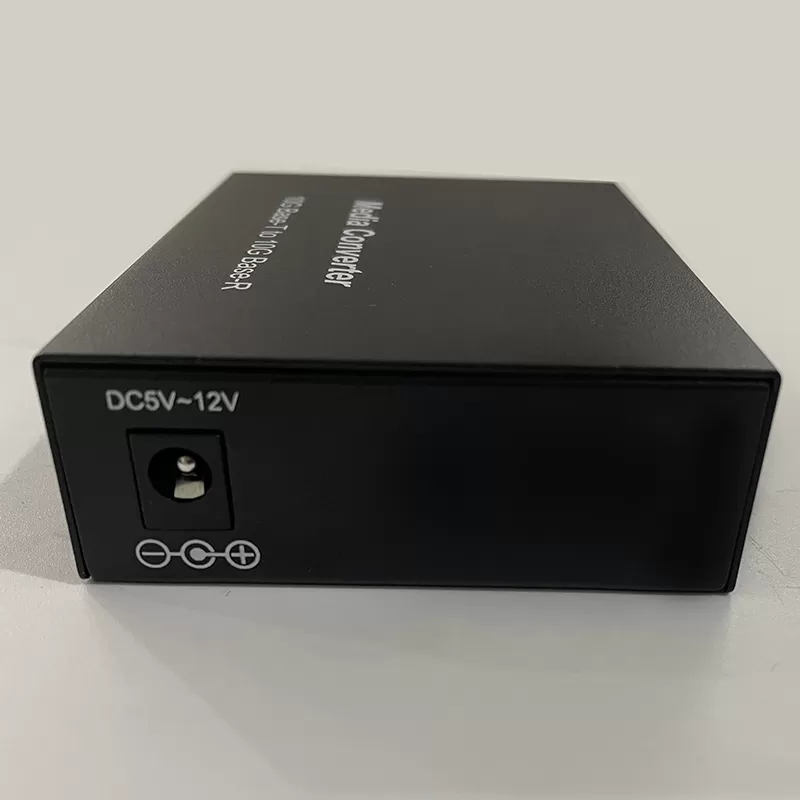

Power Supply	External Power Adapter Input: AC 100~240V 50/60Hz Output: DC 12V 1.6A	Power Consumption	5W
Dimensions (WxDxH)	26×70×93mm	Gross Weight	0.5 kg
Environment	Operating: 0°C to 50°C, 10~90% RH Storage: -40°C to 70°C, 5~90% RH	Compliance	FDA IEC/EN 60825-1 ROHS, CE

GET IN TOUCH AND REQUEST A QUOTE

ACTX MM LC 10GBPS 10G RJ45 Copper Ethernet to SFP+ Fiber Media Converter
