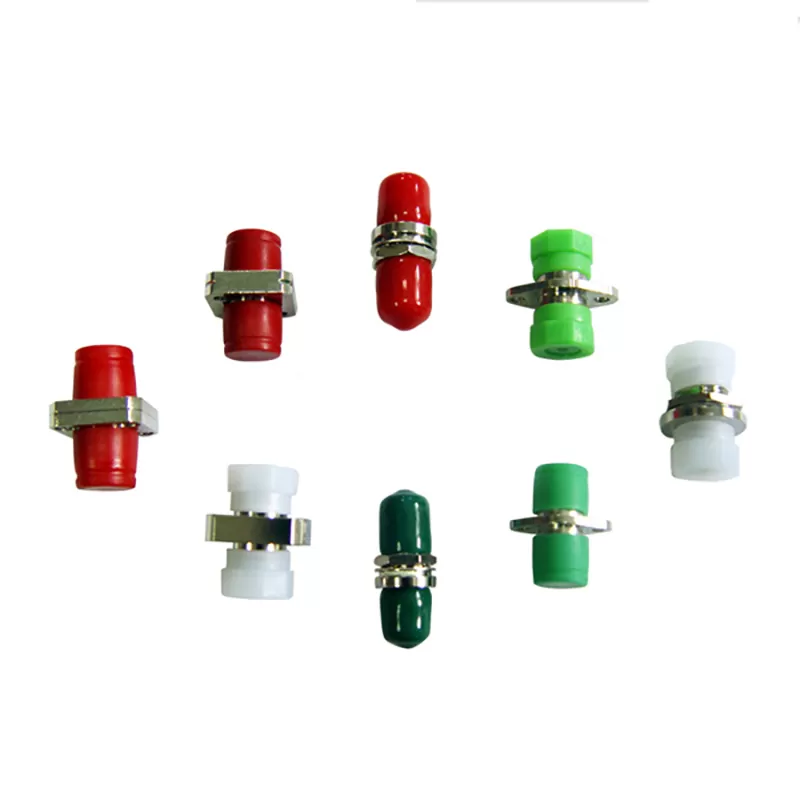

Model Number: FC Fiber Optic Adapter
Material: Metal
Color of cap: Red, White, Green
Sleeve: Ceramic
Mode: Single mode & Multimode
Application:
1. Telecommunication CATV LAN & WAN
2. Network Broadband FTTP
Characteristics:
1. Available in Square and D-shaped mount
2. Metal Body for long life more than 1000 matings
3. Screw-type locking stable and reliable
4. D-shaped easily installs into panel mount
5. Compliant with JIS5970 and Telcordia GR-326
6. Compliant with IEC874-7
Specification:
| Insertion loss | Typical | 0.1dB |
| Maximum | 0.2dB | |
| Durability | ≤0.2dB typical change,1000 mating | |
| Sleeve pull force | 0.2-0.6kg | |
| Operating Temperature | -40 to +85℃ | |
Ordering Choices:
Housing color: Beige/Blue/Metal
Sleeve: ceramic sleeve;
Channel: 1core/2core
Application: FC/PC FC/APC
1. Drawing for (D-type)
2. Drawing for(double D-type)
3. Drawing for (Solid)
4. Drawing for (2 body)
5. Drawing for (Oval)
6. Drawing for FC adapdtor SC footprint
