Model Number: LC Adapter
Fiber type: SM, MM
Operation temperature: -40~85℃
Insertion Loss: ≤0.2dB
Return loss: ≥45dB

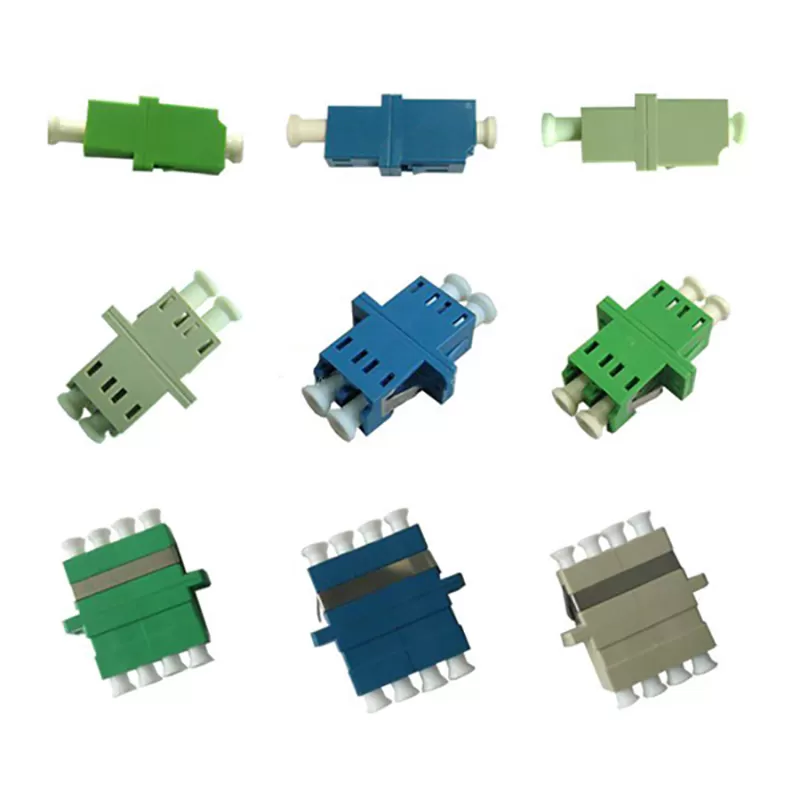

LC connectors are one of the most popular small form factor connectors which is along with LC Adapters, are widely used in high density applications.WIRENET LC couplers housing are manufactured in blue,Beige,Green,Auqa and violet in simplex/duplex and Quad style
Application:
1. CATV; Telecommunication networks;
2. Test equipment; Metro;
3. Local Area networks; Data processing networks;
Characteristics:
1. Small Form Factor – with a footprint of SC simplex adapter
2. Conform to ANSI/TIA/EIA-568-C.3 standard specifications and FOCIS5
3. Senior / Junior type ?
4. High performance Single-Mode and Multi-Mode adapters ?
5. High system durability, stability and repeatability
Specification:
Insertion loss | Typical | 0.1dB |
Maximum | 0.2dB | |
Durability | ≤0.2dB typical change,1000 mating | |
Sleeve pull force | 0.1-0.3kg | |
Operating Temperature | -40 to +85℃ | |
Ordering Choices
Housing color: Beige/Blue/Green/Aqua/ Purple/Metal
Sleeve: ceramic sleeve;
Channel: 1core/2core/4core
Application: LC/PC LC/APC
Flange : With flange/Without flange
Body: two body/ one body
Material:PEI/PC
1. Drawing for 1core( Simplex)

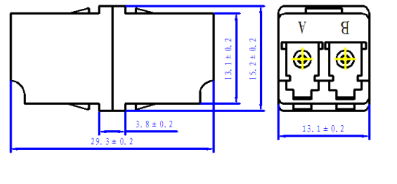

2. Drawing for 2core( duplex) SC footprint B
3. Drawing for 2core( duplex) SC footprint A
4. Drawing for Duplex Receptacle
5. Drawing for 4core (QUAD) with flange
