Model Number: sc st lc fc apc upc e2000 fiber optic adapter
Insertion loss: <0.2dB
Appearance: With / without Flange
Material: plastic and metal

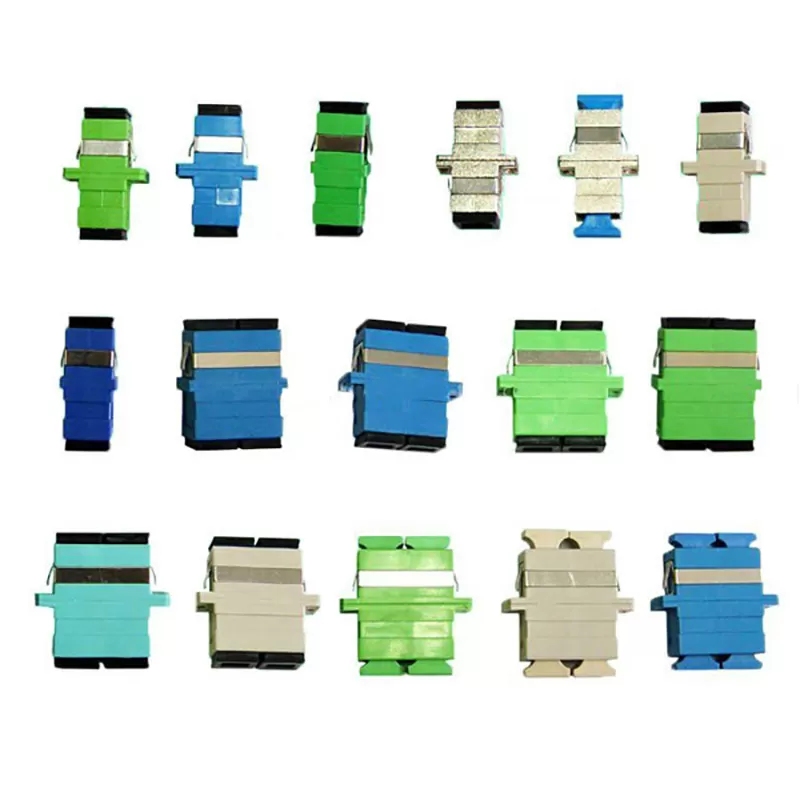

WIRENET SC Adapters are available in simplex and duplex styles.Housing color can be blue,beige and green. SC/APC Adapters are one of the most reliable connection styles,widely used in FTTH deployments/CATV/LAN/WAN applications.
Application:
1.CATV; Telecommunication networks;
2. Test equipment; Metro;
3. Local Area networks; Data processing networks;
Characteristics:
1. High performance single mode and multi mode adapters
2. Push-pull coupling for easy insertion and high repeatability
3. Minimum termination time
4. High system durability, stability and repeatability
5. Simplex or duplex models
6. Precision adapters with ceramic sleeves
Specification:
Insertion loss | Typical | 0.1dB |
Maximum | 0.2dB | |
Durability | ≤0.2dB typical change,1000 mating | |
Sleeve pull force | 0.2-0.6kg | |
Operating Temperature | -40 to +85℃ for PBT -40 to +70℃ for ABS | |
Ordering Choices
Housing color: Beige/Blue/Green/Aqua/ Black/Purple/Metal
Sleeve: ceramic sleeve;
Channel: DUPLEX; SIMPLEX
Application: SC/PC SC/APC
Flange : With flange/Without flange
Shutter dust cap: With/without
1. Drawing for Simplex with flange
2. Drawing for Simplex without flange
3. Drawing for Duplex with flange
4. Drawing for Duplex without flange
