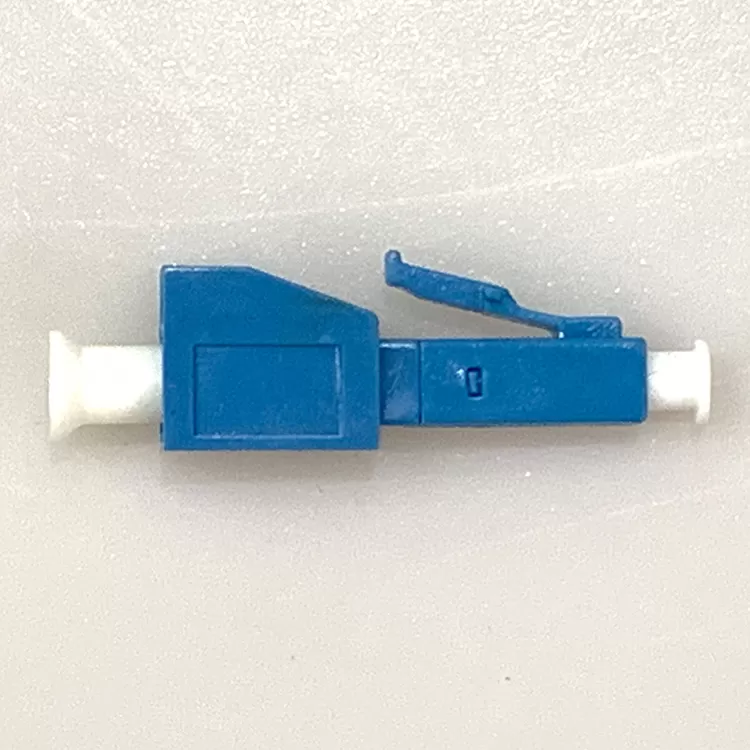

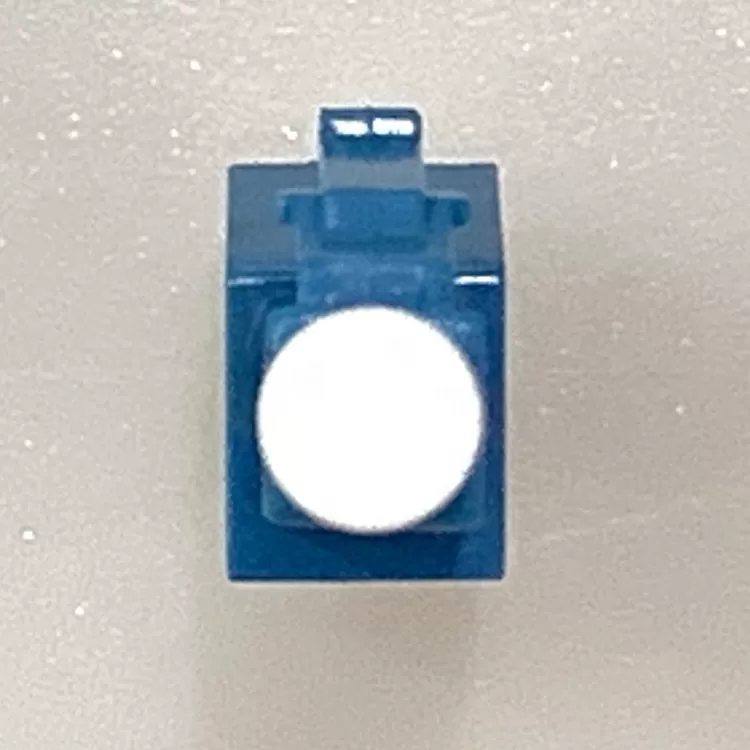

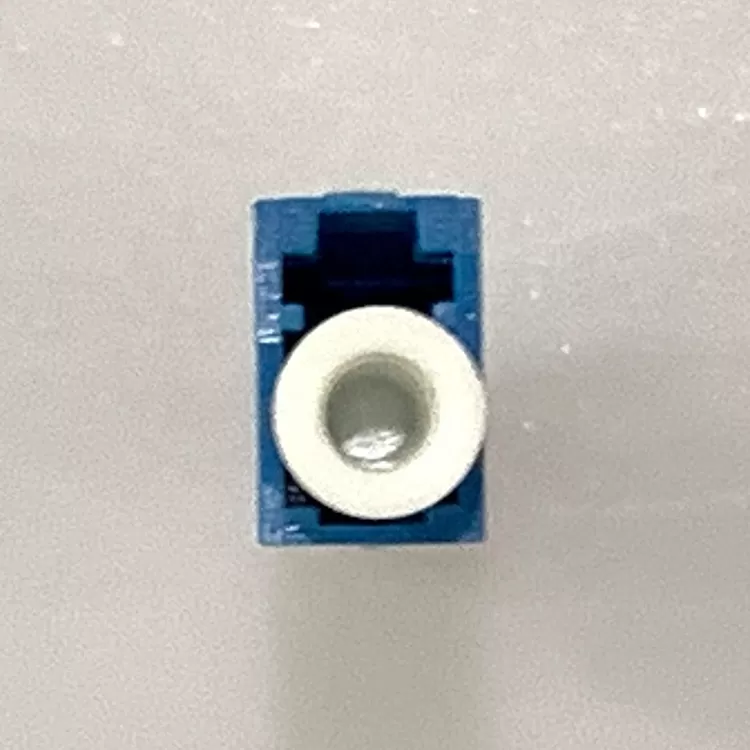

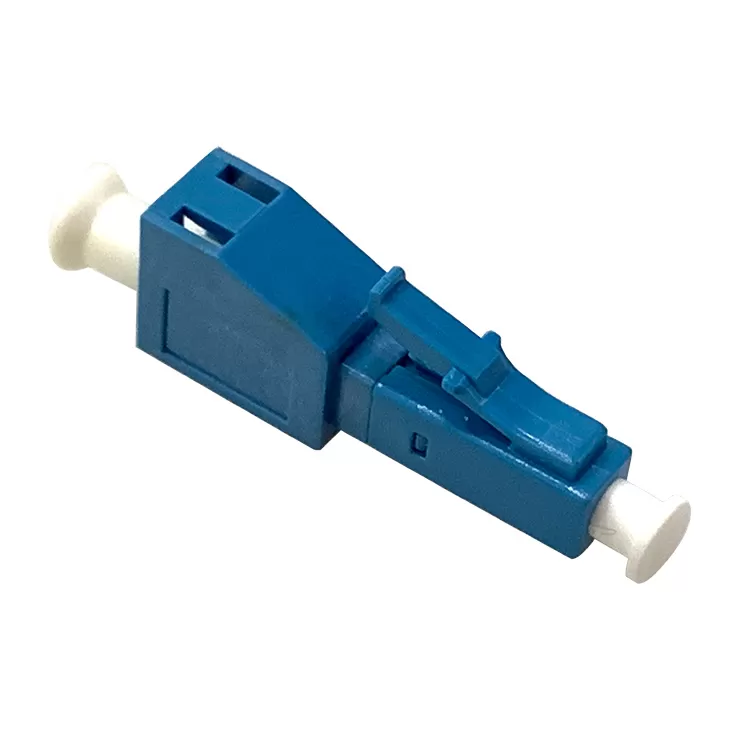

Model Number: fiber optic attenuator
Operating Wavelength: SM: 1200-1600nm or 1310nm, 1550nm
Attenuation Accuracy: +/-0.5 (1-10) +/-1.0 (11-30)
Return Loss: > 55 dB (UPC)
Polarization Dependent Loss: Less than 0.2dB
Maximum Optical Input Power: 200mW
Packaging Details: 10 pieces per pack, 0.3 kg for each additional pack,15*15*10 cm
APPLICATION
Telecommunication Networks -Data Networks -Video & CATV
FEATURES
Bellcore Compliant - Wavelength Independent (DWDM)
Durability (well over 100mw) - Simple and Reliable Structure
SPECIFICATIONS
Operating Wavelength: SM: 1200—1600nm or 1310nm, 1550nm Return Loss: Less than 50 dB (SPC)
Less than 55 dB (UPC) Less than 65 dB (APC)
Attenuation Accuracy: +/-0.5 (1-10)
+/-1.0 (11-30)
Polarization Dependent Loss: Less than 0.2dB Maximum Optical Input Power: 200mW Operating Temp. Range: -40 ~ 80°C
ORDERING OPTIONS
| Connector | Type Application | Wavelength | Attenuation Leve |
| SC | UPC | 1310nm | 1,2,3,….25dB |
| FC | APC | 1550nm | |
ST LC | 1310/1550nm | ||
| MU |
