5dB 10dB 15dB 20dB 25dB 30dB Range SMALC FC SC ST Type Variable Fiber Optic Attenuator

5dB 10dB 15dB 20dB 25dB 30dB Range SMALC FC SC ST Type Variable Fiber Optic Attenuator

Model Number: sc upc 15db Fiber optic attenuator

Operating Wavelength: SM: 1200-1600nm or 1310nm, 1550nm

Insertion Loss: Typ: 0.8 Max_0.9 dB

Attenuation Accuracy: +/-0.5 (1-10) +/-1.0 (11-30)

Return Loss: Less than 55 dB (UPC)

Polarization Dependent Loss: Less than 0.2dB

Maximum Optical Input Power: 200mW

Inquire Now Next Product

Description Contact Us

Variable Fiber Optic Attenuator is a component installed in a fiber optic transmission system. It has a ceramic alignment sleeve and can be used on both multimode and singlemode applications. It can set and adjust the increase of attenuation level to desired “level” in order to control the power level of optical signals at the outputs of light sources and electrical-to-optical (E/O) converters.

Wirenet offers LC/UPC LC/APC SC/UPC SC/APC ST/UPC FC/APC and FC/UPC Type Variable Fiber Optic Attenuator with wide attenuation range from 0dB to 30dB. All our attenuators are manufactured according to industry standards and are 100% fully tested.

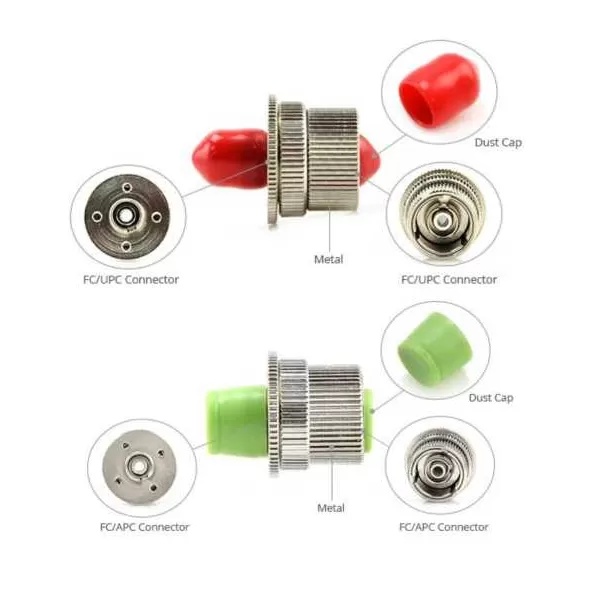

5dB 10dB 15dB 20dB 25dB 30dB Range SMA LC FC SC ST Type Variable Fiber Optic Attenuator

Attenuator Type: Variable Optic Attenuator
Connector Type: FC/UPC Connentor;FC/APC Connector
Compatibility Connector: 0dB ~ 30dB (optional)
Material: Metal(CU)

----------------------------------------------------------------------------------------------------------------------------------------------------------------------

5dB 10dB 15dB 20dB 25dB 30dB Range SMA LC FC SC ST Type Variable Fiber Optic Attenuator

Attenuator Type: Variable Optic Attenuator
Connector Type: SC/UPC Connentor;SC/APC Connector
Compatibility Connector: 0dB ~ 30dB (optional)
Material: Metal(CU)
----------------------------------------------------------------------------------------------------------------------------------------------------------------------

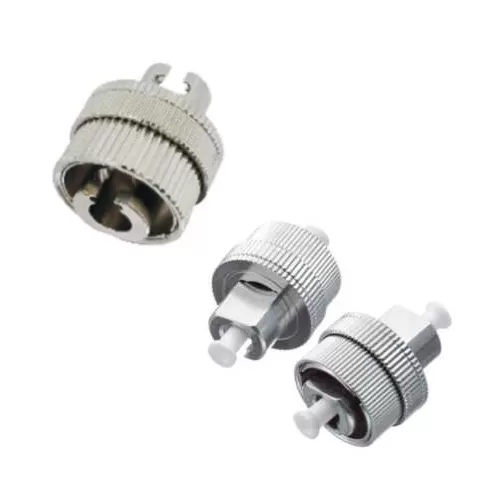

5dB 10dB 15dB 20dB 25dB 30dB Range SMA LC FC SC ST Type Variable Fiber Optic Attenuator

Attenuator Type: Variable Optic Attenuator
Connector Type: LC/UPC Connentor;LC/APC Connector
Compatibility Connector: 0dB ~ 15dB (optional)
Material: Metal(CU)

----------------------------------------------------------------------------------------------------------------------------------------------------------------------

Attenuator Type: Variable Optic Attenuator
Connector Type: SC/UPC Connentor
Compatibility Connector: 0dB ~ 30dB (optional)
Material: Metal(CU)

----------------------------------------------------------------------------------------------------------------------------------------------------------------------

Attenuator Type: Variable Optic Attenuator
Connector Type: SMA/PC Connentor
Compatibility Connector: 0dB ~ 30dB (optional)
Material: Metal(CU)

----------------------------------------------------------------------------------------------------------------------------------------------------------------------

Attenuator Type: Variable Optic Attenuator

Connector Type: SC/FC/ST hybrid Connentor
Compatibility Connector: 0dB ~ 30dB (optional)
Material: Metal(CU)

----------------------------------------------------------------------------------------------------------------------------------------------------------------------

Features and Applications:

High precise attenuation value	Wide attenuation range 0dB to 30dB(FC SC ST SMA) Wide attenuation range 0dB to 15dB(LC)
Low insertion loss	High return loss
Perfect environmental stability and reliability	High-power light source durability
Easy installation	Well package
Comply with IEC standards	RoHS compliant

     With above excellent characteristics, Variable Fiber Optic Attenuators can be used in fiber optical telecommunication system and optical transmission system. These attenuators can be applied in FTTH, CATV, WAN, fiber optical sensor and metropolitan area network. They are often used as the testing equipment.
