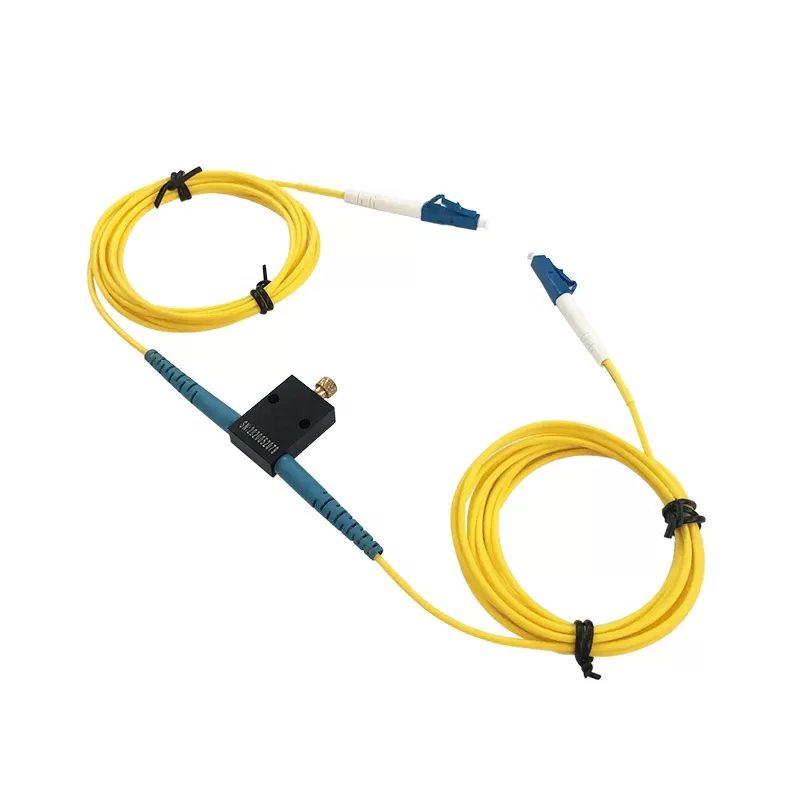

LC UPC Connector Fiber Optic Variable Attenuator

Model Number: variable attenuator

Operating Wavelength: 1310 or 1550 or 1490 or 1585 nm

Bandwidth: ±40 nm

Insertion Loss: Typ: 0.8 Max_0.9 dB

Attenuation range: 0.8~60dB

PDL: ≤0.1dB

Attenuation Precision: ≤0.02

Transmission Power: ≤500mw

share:

Inquire Now Next Product

Description Contact Us

Application
Optical passive component test
Optics lab use
Fiber optic Systems Testing

Operating Wavelength	nm	1310 or 1550 or 1490 or 1585
Bandwidth	nm	±40
Insertion Loss	dB	Typ:0.8 Max:0.9
Attenuation range	dB	0.8~60
PDL	dB	≤0.1
Return Loss	dB	≥60
Attenuation Precision	dB	≤0.02
Fiber Type		SMF-28e
Connector Type		FC SC LC customization is available.
Fiber Length	m	≥1.0
Transmission Power	mw	≤500
Operation Temperature	℃	-20~+70
Storage Temperature	℃	-40~+85
Dimension	mm	26x16x8
