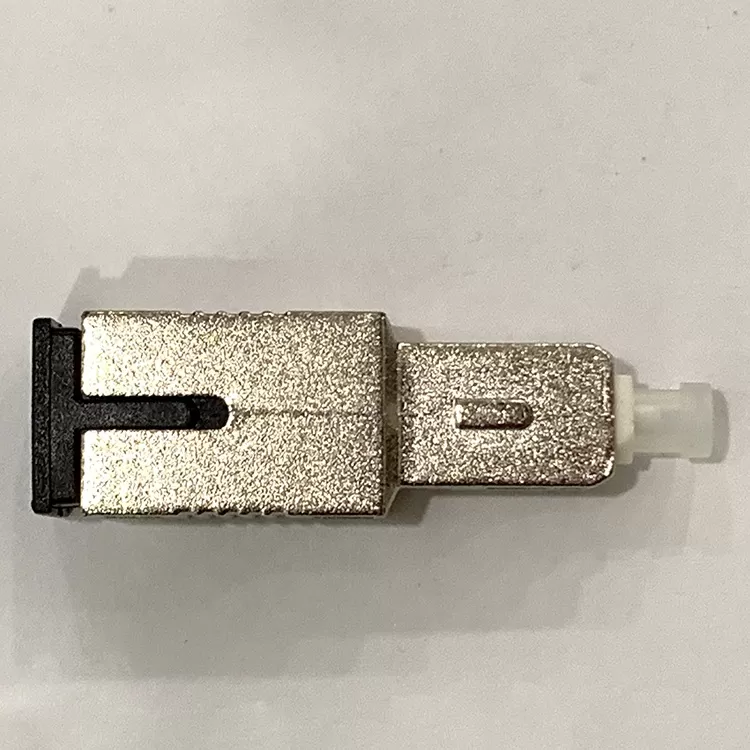

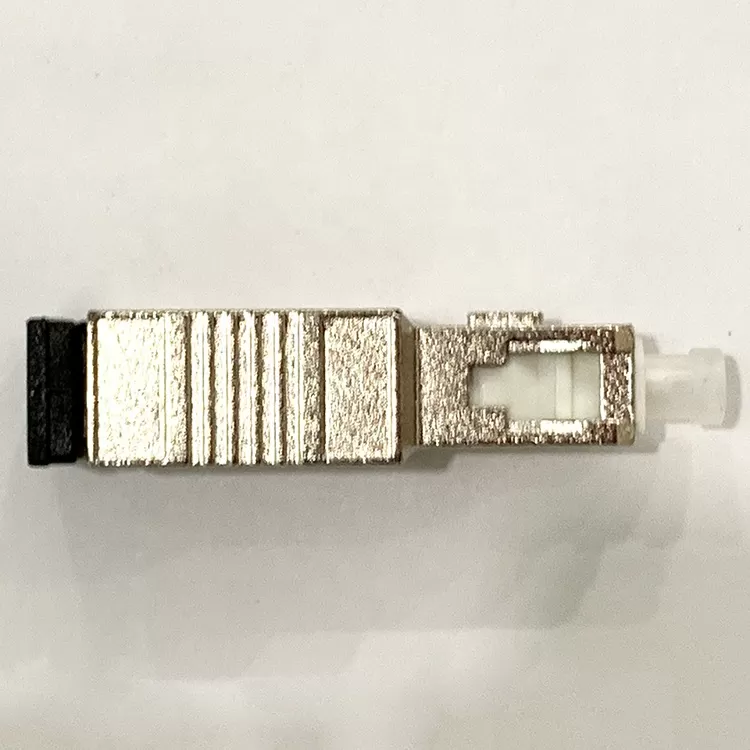

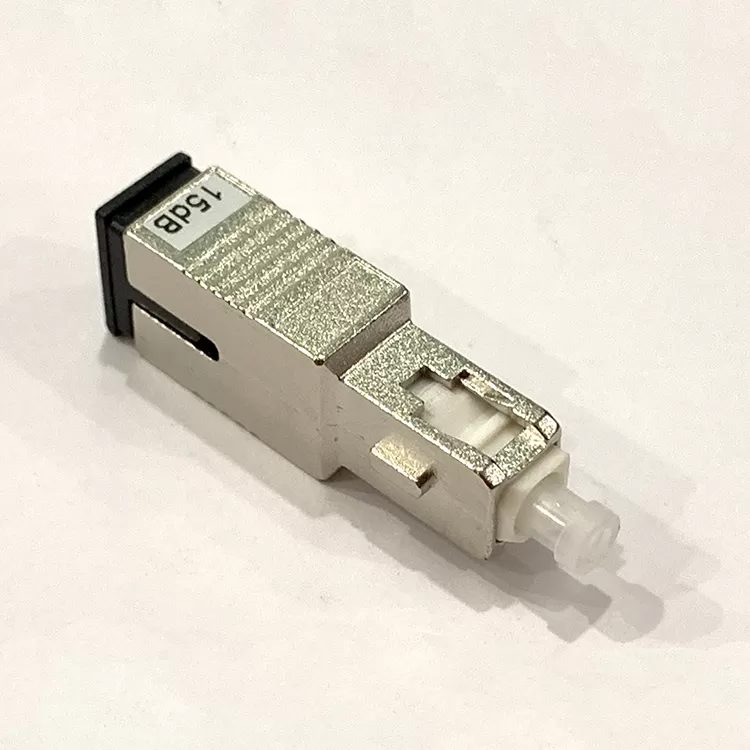

Male to Famale 15db SC UPC Fiber Optic attenuator for catv

Model Number: sc upc 15db Fiber optic attenuator

Operating Wavelength: SM: 1200-1600nm or 1310nm, 1550nm

Insertion Loss: Typ: 0.8 Max_0.9 dB

Attenuation Accuracy: +/-0.5 (1-10) +/-1.0 (11-30)

Return Loss: Less than 55 dB (UPC)

Polarization Dependent Loss: Less than 0.2dB

Maximum Optical Input Power: 200mW

Inquire Now Next Product

Description Contact Us

Features
 * Bellcore Compliant - Wavelength Independent (DWDM)
 * Durability (well over 100mw) - Simple and Reliable Structure
Specification
 * Operating Wavelength: SM: 1200—1600nm or 1310nm, 1550nm Return Loss: Less than 50 dB (SPC)
 * Less than 55 dB (UPC) Less than 65 dB (APC)
 * Attenuation Accuracy: +/-0.5 (1-10)
 * +/-1.0 (11-30)
 * Polarization Dependent Loss: Less than 0.2dB Maximum Optical Input Power: 200mW Operating Temp. Range: -40 ~ 80°C

Application
 * Telecommunication Networks -Data Networks -Video & CATV

ORDERING OPTIONS

Connector	Type Application	Wavelength	Attenuation Leve
SC	UPC	1310nm	1,2,3,….25dB
FC	APC	1550nm
ST LC		1310/1550nm
MU
