Model Number: WT-ODC01
Performance: outdoor optical equipment
Material: SMC or Cold-rolled steel
Features: high intensity and anti-erosion
Protection level: IP65
Application: strap-shaped and non-strap shaped
Size: 600*475*600 mm

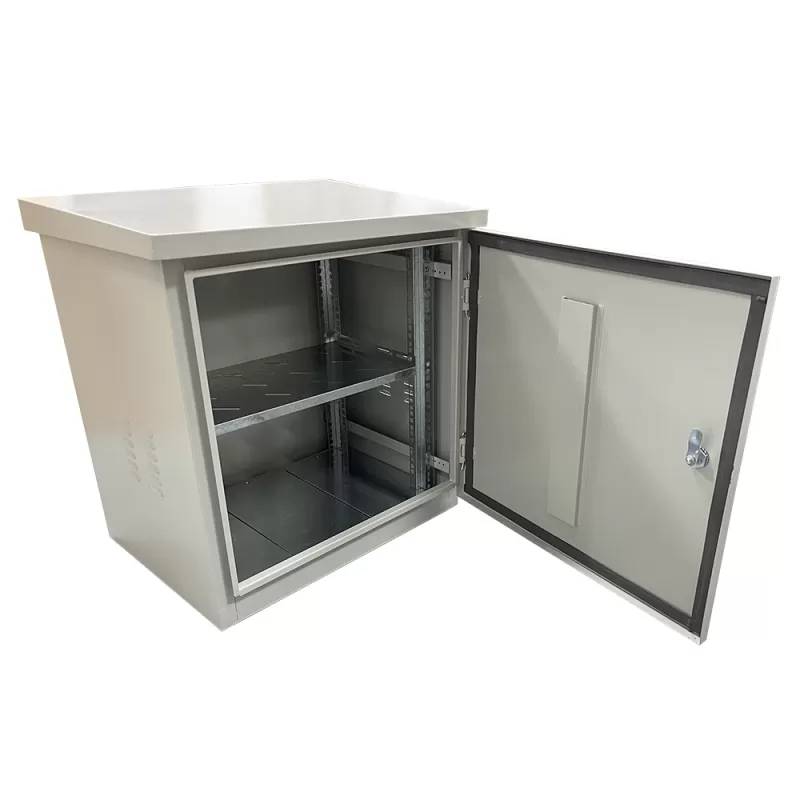

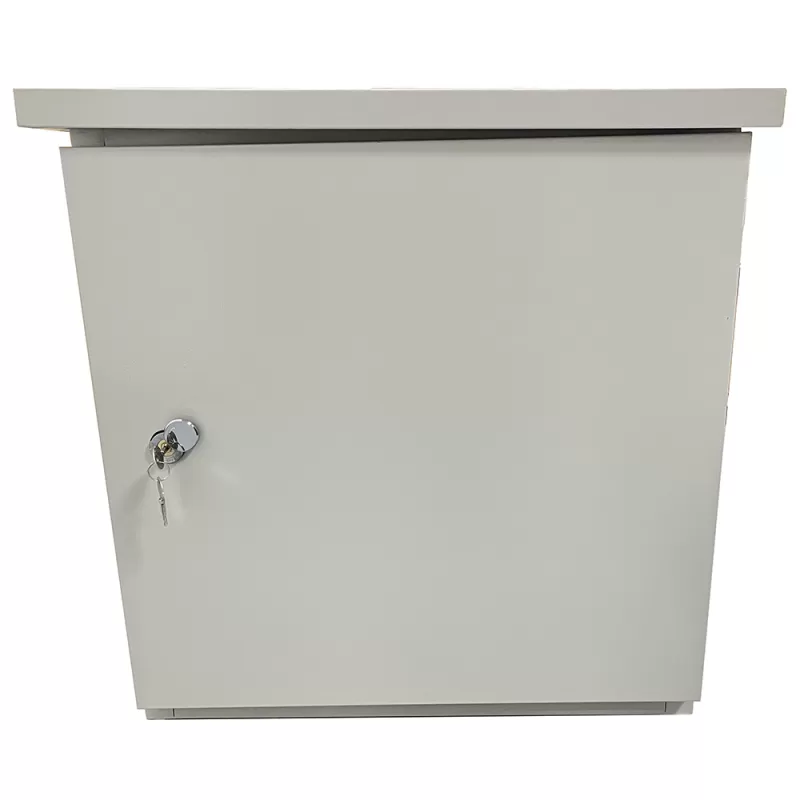

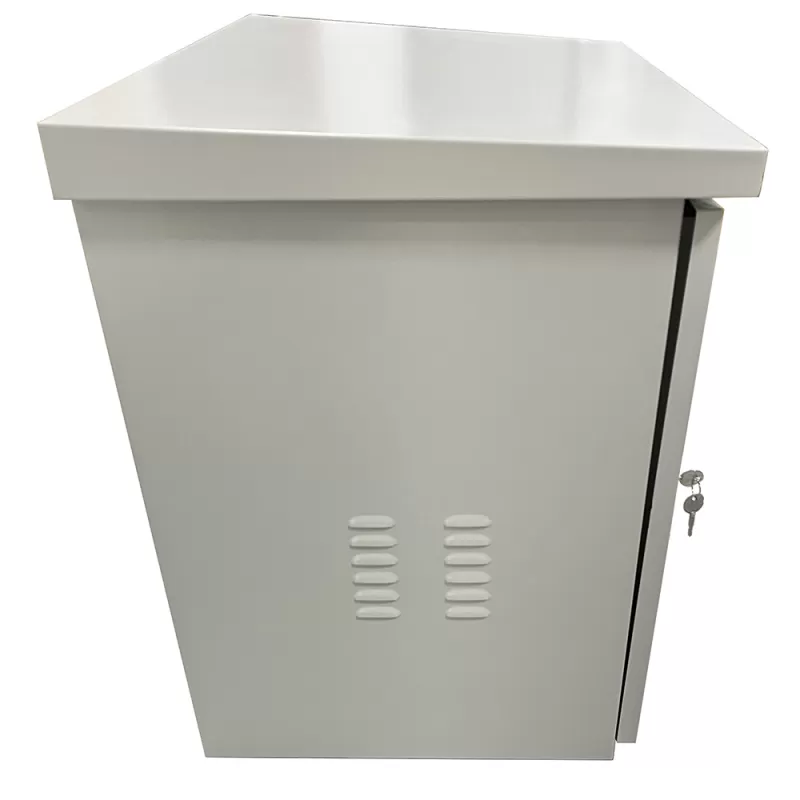

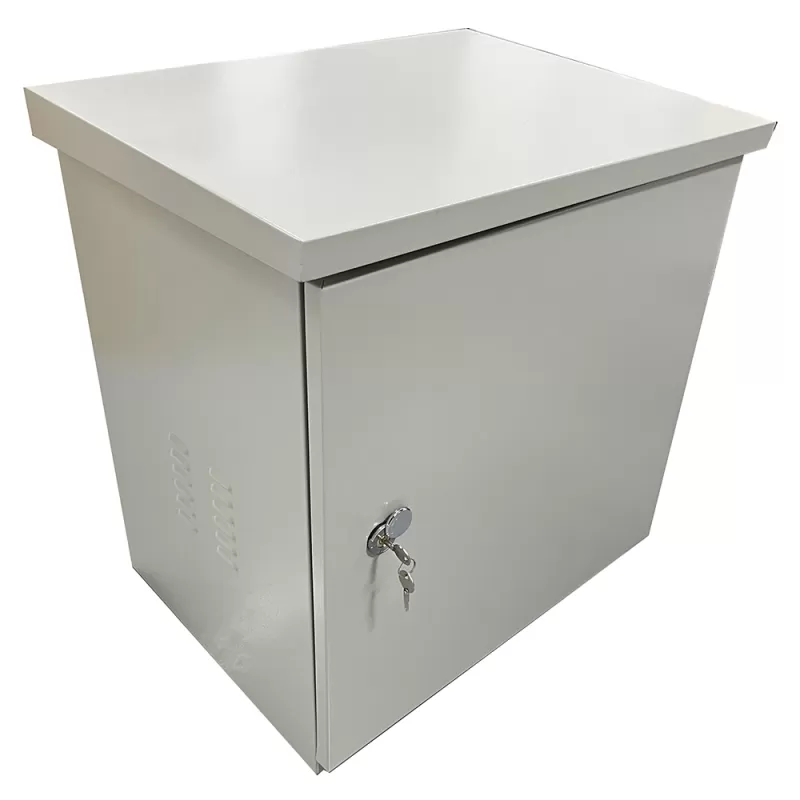

Fiber distribution cabinet is used outdoors trunk interface device connecting to the cable and distribution cable,and can provide the connection between backbone cables and wiring cable.It can achieve adirect connection and cross-connect between the trunk cable and wiring cable with the function of cable fixing , the connection of metal components and high-voltage protection grounding devices,the protection of optical fiber connector,savings and distribution of the remaining long fiber.
Features
1. High intensity and anti-erosion performance.
2. Able to counter abrupt climate change and extreme environment.
3. Capacity can be flexibly customized as required.
4. Installation is quick and convenient.
5. Built-in direct splice unit is capable for providing direct connection function.
6. Perfect design of fiber wiring routing could facilitate management and maintenance of fibers.
7. With secure and reliable fastening and grounding protection devices for the optic fiber.
8. Applicable to strap-shaped and non-strap shaped fibers.
Protection level | IP65 |
Work Temperature | -45°C-+85°C |
Relative humidity | ≤85%(+30°C) |
Atmospheric pressure | 70~106 KPa |
Insertion loss | ≤0.2dB |
Return loss | ≥45dB (PC),55dB(UPC),60dB(APC) |
Isolation resistance(between frame and protection grounding) | >1000 MΩ/500V(DC) |
material | SMC or Cold-rolled steel |
