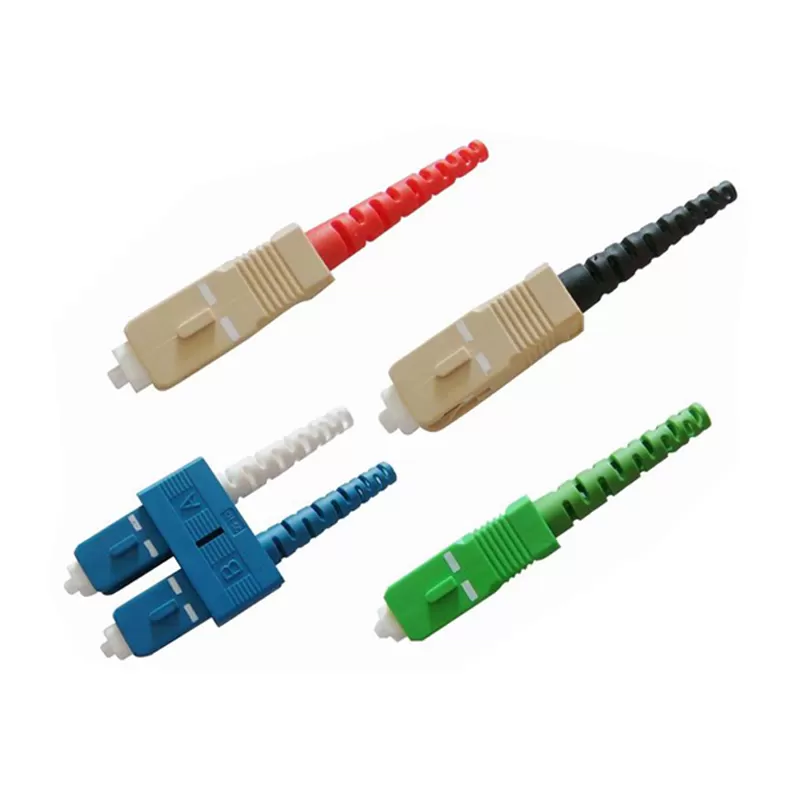

Model Number: SC Connector
Fiber type: SM, MM
Operation temperature: -40~75℃
Insertion Loss: ≤0.2dB
Return loss: ≥45dB
Application:
1. CATV
2. Telecom Network
3. Metro
4. Multimedia
5. Data processing
6. Premise installation
7. Gigabit Ethernet
Characteristics:
1. Low insertion Loss and Back reflection loss
2. RJ-45 style interface-
3. Polarized and color coded (TIA568-A&ISO 11801)
4. UL-rated plastic housing and boot
5. Compact, pull-proof design
6. Behind-the-Wall style short connector
| SPECIFICATIONS | ||||||||
| Items | Single mode | Multimode | ||||||
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |||
| Insertion Loss | <0.2dB | <0.3dB | ||||||
| Return Loss | ≥45dB | ≥50dB | ≥60dB | ≥35dB | ||||
| Durability | <0.1dB typical change,500 matings | |||||||
| ferrule | ceramic ferrule | |||||||
| Operating Temperature | -40 to +75℃ | -40 to +75℃ | ||||||
| Ferrule Hole Sizes | 125.0+1/-0um, Conentricity:≤1um | 125um,Conectricity:1≤3um | ||||||
| 125.3+1/-0um, Conentricity:≤1um | 127um,Conectricity:1≤3um | |||||||
| 125.5+1/-0um, Conentricity:≤1um | 128um,Conectricity:1≤3um | |||||||
| 126.0+1/-0um, Conentricity:≤1um | ||||||||
Ordering Information
Fiber Count: 1F, 2F
Boot size: 0.9mm, 2.0mm, 3.0mm
Boot color: Blue, Whitel, Black
