SC UPC Fiber optic connector 0.9mm 2.0mm 3.0mm
SC UPC connector 0.9mm

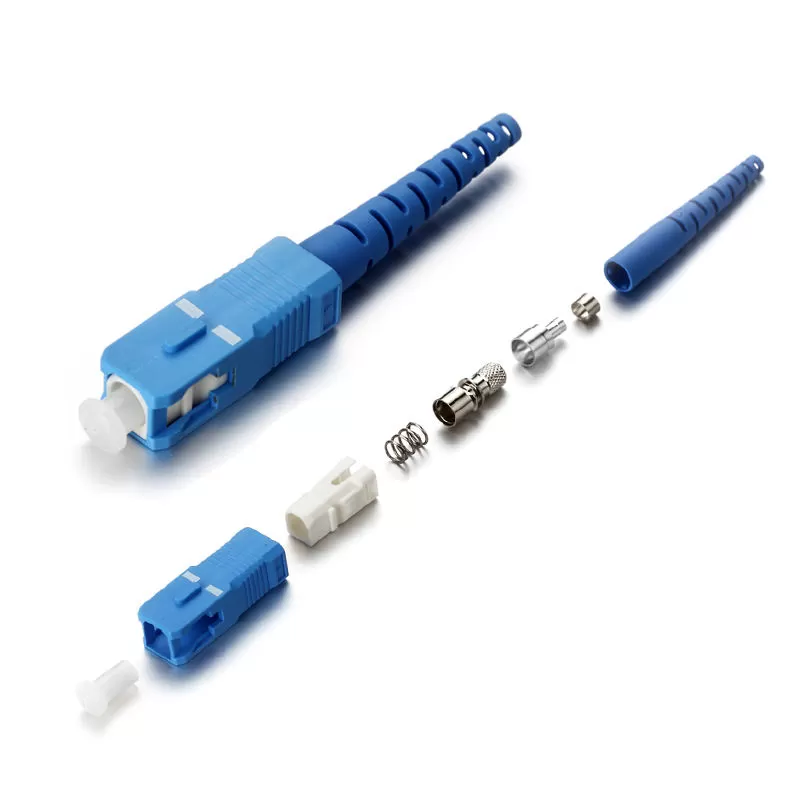

SC UPC connector 2.0mm

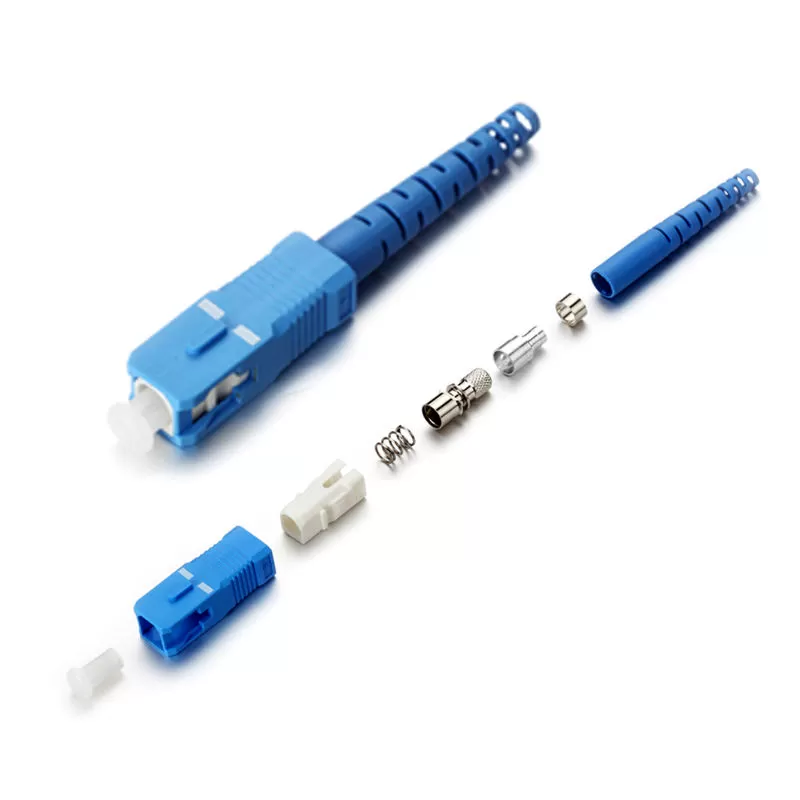

SC UPC connector 3.0mm

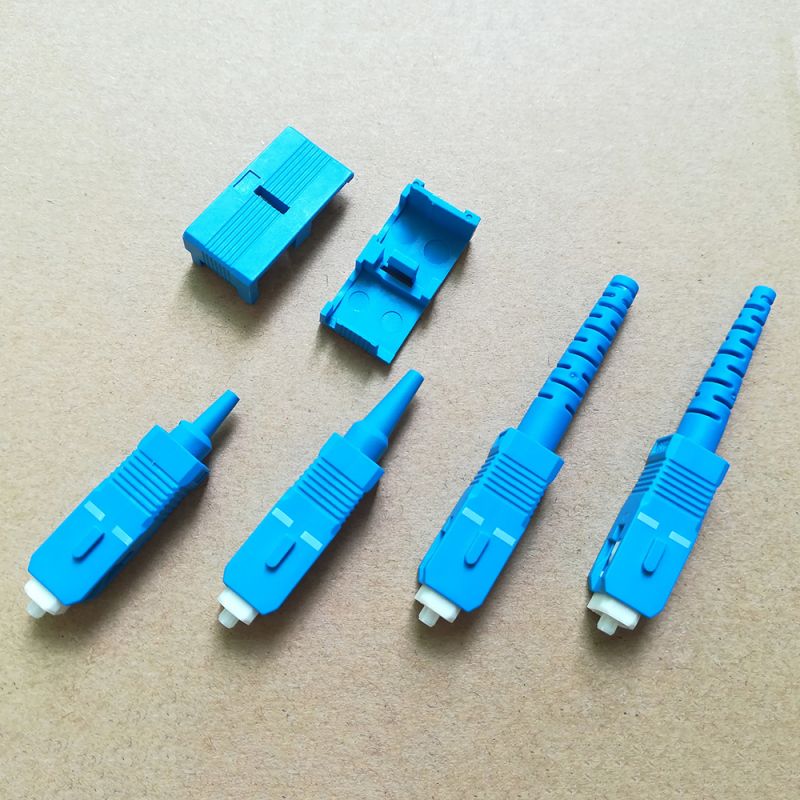

SC UPC connector

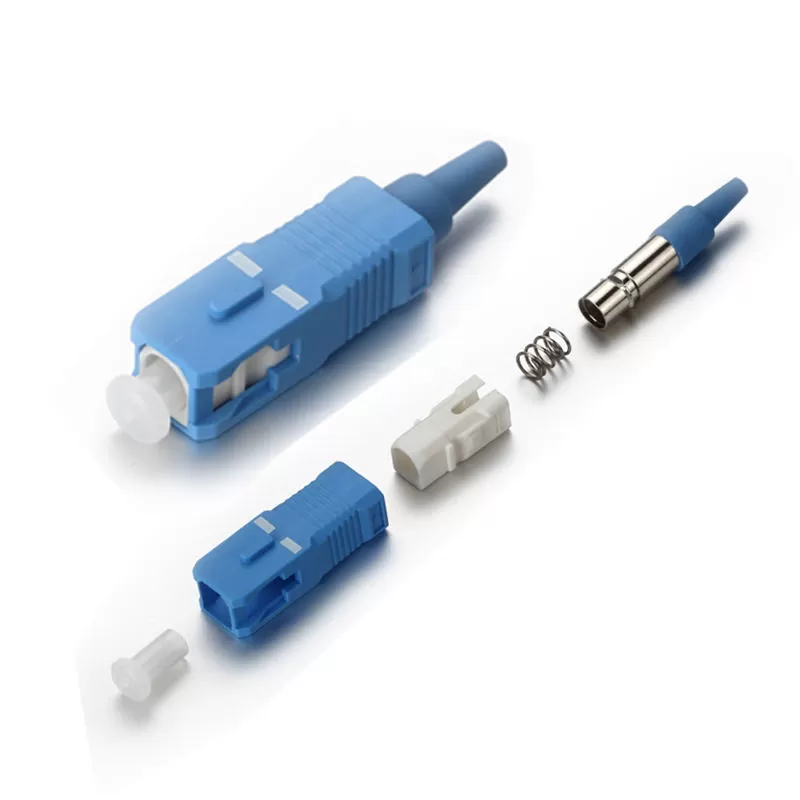

SC UPC Fiber optic connector 0.9mm 2.0mm 3.0mm

Model Number: SC UPC Connector

Connector type: 0.9mm/2.0mm/3.0mm

Insertion Loss: 0.2dB(SM), 0.3dB(MM)

Durability: <0.1dB typical change,500 matings

Return Loss: UPC≥50dB

Operating Temperature: -40 to +75℃

Packaging Details: 30*30*15cm carton box

share:

Description Contact Us

     SC fiber optic connector (Subscriber Connector or Standard Connector) is a type of fiber optic connector that provides a quick and reliable way to connect and disconnect fiber optic cables. It is widely used in telecommunications and data networks because of its ease of use and high performance.


SC APC UPC Fiber optic connector 0.9mm 2.0mm 3.0mm


Features:


Push-Pull Design: SC connectors have a "push-pull" locking mechanism, meaning you can simply push the connector into place to connect it and pull to release. This feature makes it easy to connect and disconnect without the need for twisting or screwing.


Square Shape: SC connectors are easily identifiable by their square or rectangular housing. This allows for high-density installations where multiple connectors need to be placed in close proximity.


Ferrule Diameter: The SC connector uses a 2.5mm diameter ceramic ferrule to align and protect the fiber core. The ferrule helps keep the fiber end clean and properly aligned to reduce signal loss.


Low Insertion Loss and High Return Loss: SC connectors typically offer low insertion loss (signal reduction) and high return loss (reflection reduction), making them suitable for high-speed, high-performance fiber optic networks.


Single-mode and Multi-mode Compatibility: SC connectors are available for both single-mode (used for long-distance communications) and multi-mode (used for shorter distances) fibers.




Application:

They are widely used in telecommunications, data centers, FTTH (Fiber to the Home), and other applications where reliable and durable fiber optic connections are needed.
