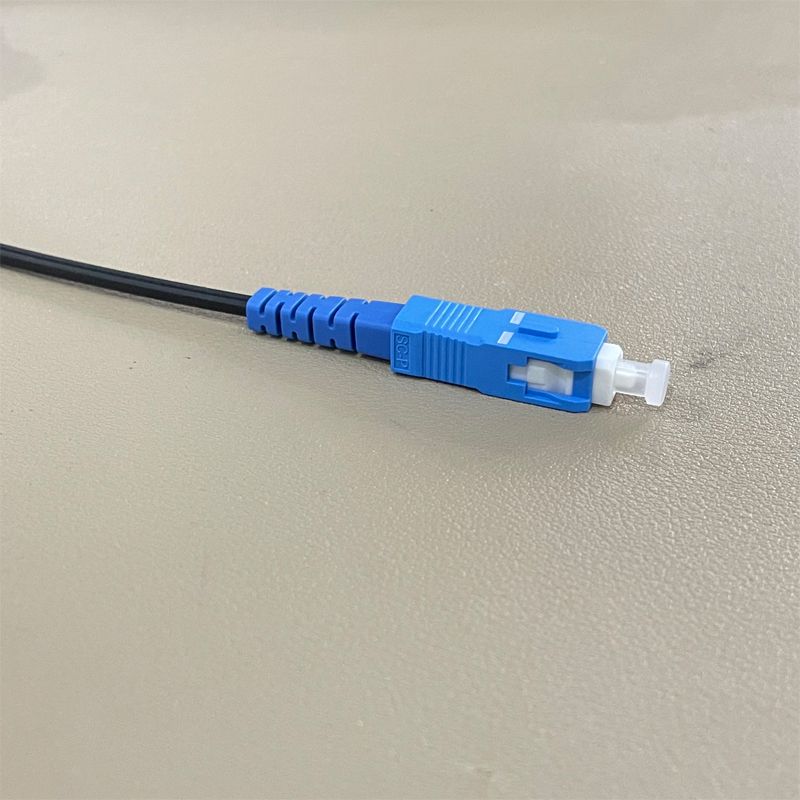

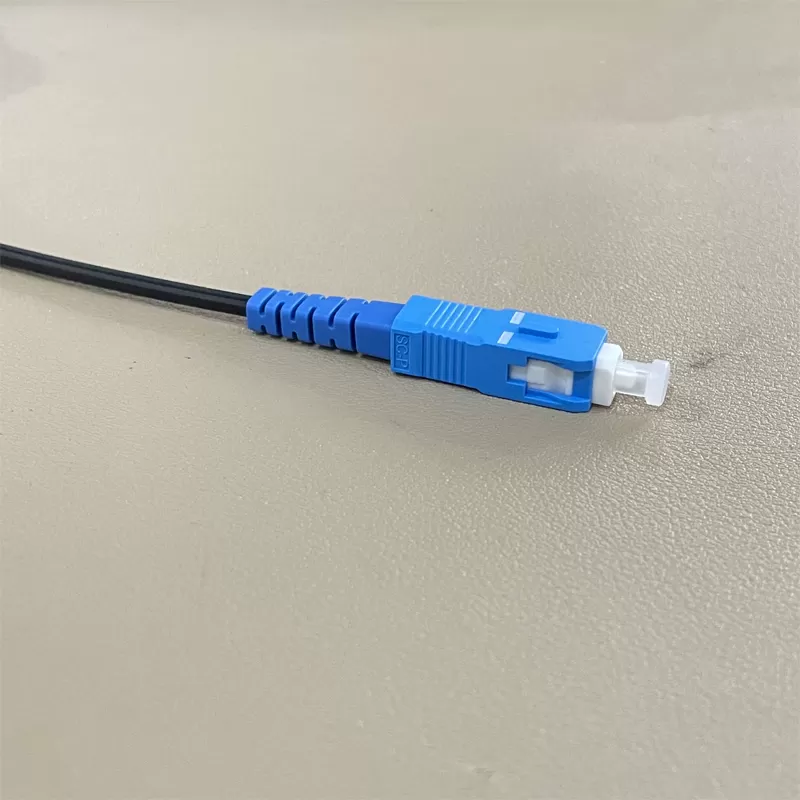

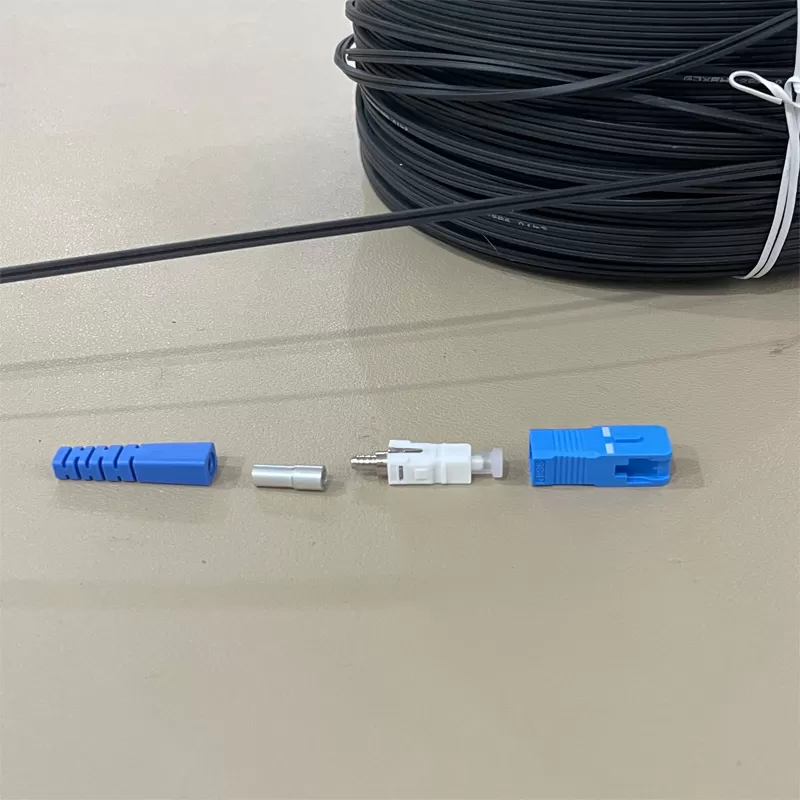

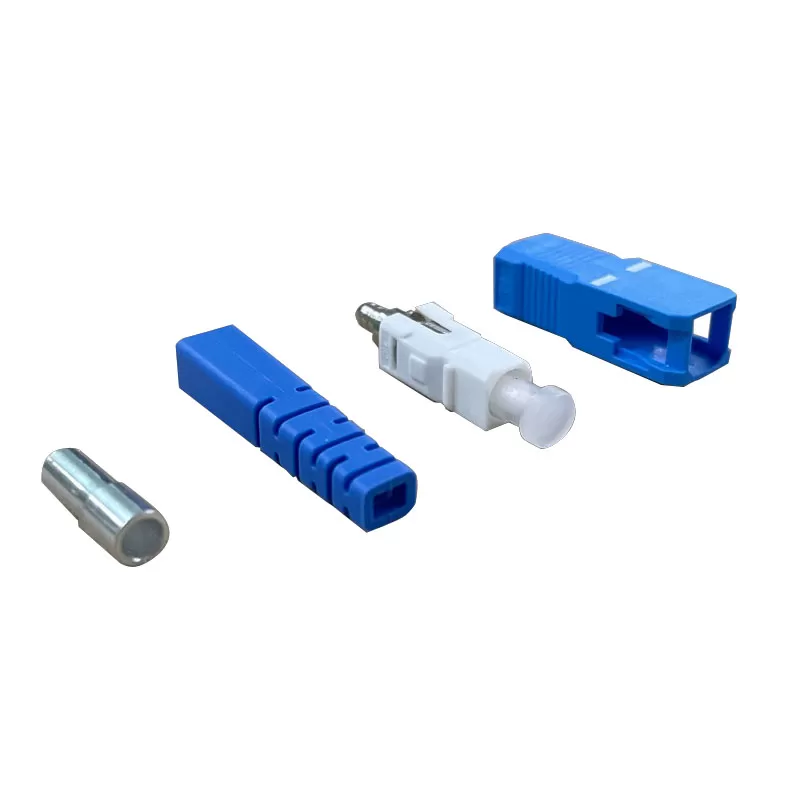

SC UPC Fiber Optic Drop Cable Connector

SC UPC Fiber Optic Drop Cable Connector

Model Number: SC UPC

Insertion Loss: 0.2dB(SM), 0.3dB(MM)

Durability: <0.1dB typical change,500 matings

Return Loss: UPC≥50dB

Operating Temperature: -40 to +75℃

Application: FTTH Fiber Optic Drop cable

share:

Description Contact Us

Features

---Low insertion Loss and Back reflection loss
---RJ-45 style interface-
---Polarized and color coded (TIA568-A&ISO 11801)
---UL-rated plastic housing and boot
---Compact, pull-proof design
---Behind-the-Wall style short connector


Application

•CATV
•Telecom Network
•Metro
•Multimedia
•Data processing
•Premise installation
•Gigabit Ethernet



Connector Type
SC
Operating Wavelength
850~1300nm, 1260-1650nm
Insertion Loss
≤0.20dB, Max 0.3dB
Return Loss
PC≥45dB, UPC≥50dB,APC≥60dB
ferrule
ceramic ferrule
Durability
<0.1dB typical change,500 matings
Storage Temperature
-40℃~+75℃
