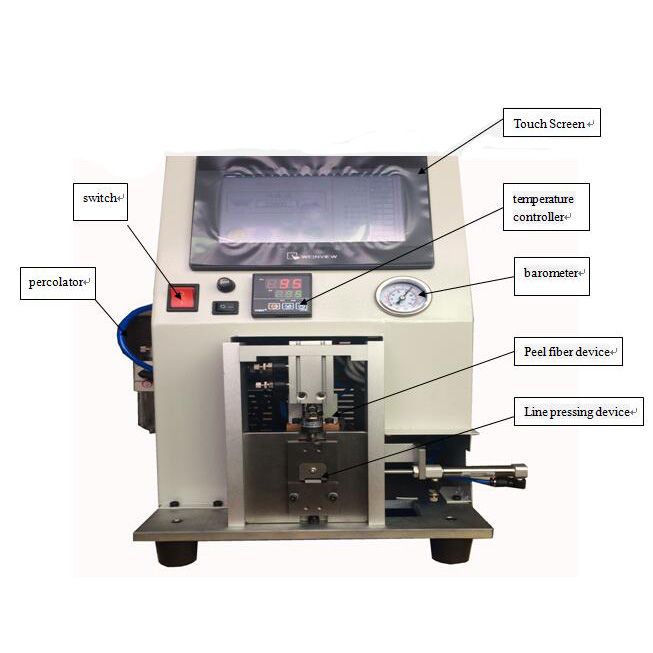

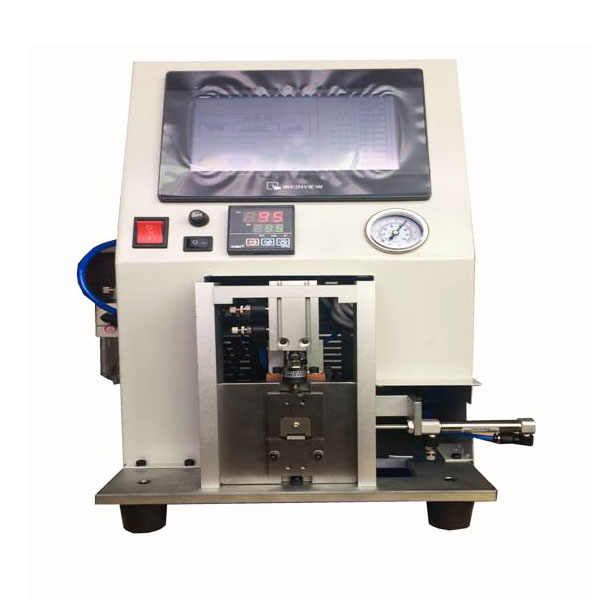

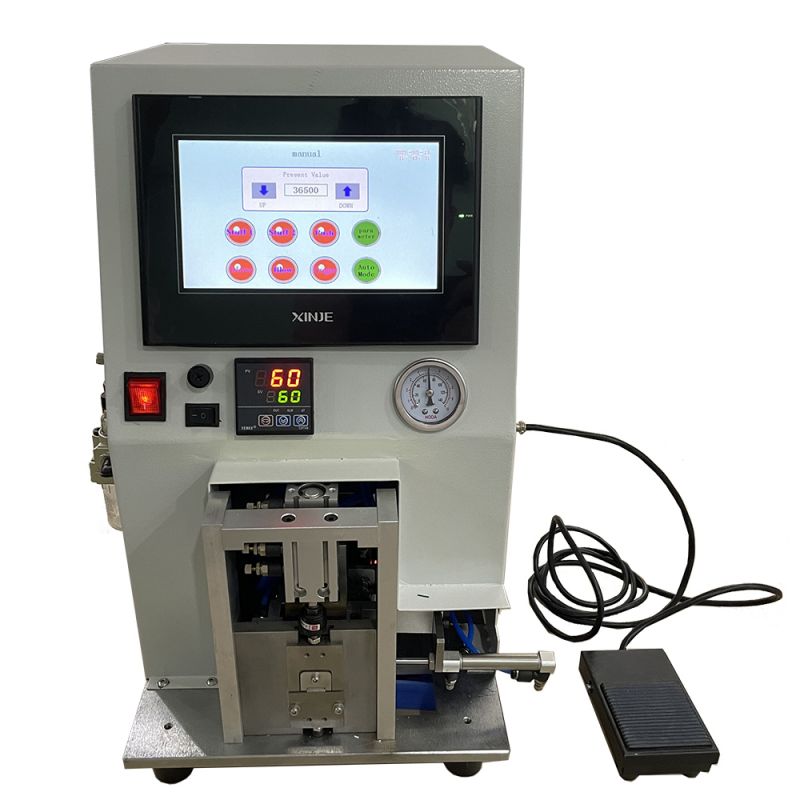

Automatic Fiber End Stripping Wire Cable Machine

Summary:

1. The machine is mainly used in the current optical communication industry of 0.9mm indoor optical fiber and ribbon fiber.

2. This machine adopts PLC control system, accurate and fast.

3. Touch screen operation is simple, easy to learn and easy to understand.

4. Using the heat stripping method to peel the fiber, the fiber will not be hurted, several fibers can be stripped simultaneously, the speed is fast, the performance is stable, the accuracy is high, the length is easy to adjust(10mm-20mm).

5. The number of fiber stripped per hour is 800-1200 times.

6. In the operation, the method of moving and setting is adopted before and after the operation, “mode1” and “mode2” two modes are used for the different stripping length requirements, the replacement of the tool is convenient, without the worry of the fingers.
