Model Number: 12 fiber cutter
Power: AC220V 50Hz
Function: multi cable cut in a setting length
Cutting length: 0.1~999.9mm
Laying off: 1700mm*500mm*1500mm,200KG
Drawing machine: 265mm*375mm*400mm,15KG
Converter belt: 3000mm*350mm*800mm,40KG

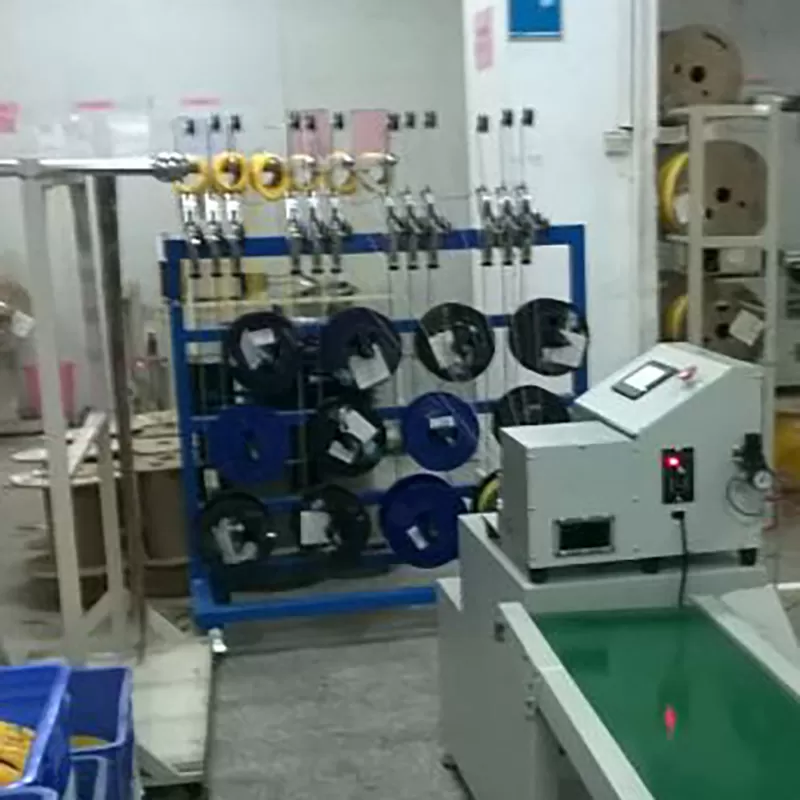

This equipment is the machine for automatically setting the length of fiber cable in high speed. It is composed of 12 fiber laying off shelf, setiing length drawing machine, conveyor belt and control board.
For the function of the laying out machine:The laying out machine ensure suitable tensile to lay off the cable. The drawing machine draws the cable in a setting length and cut. The converter belt convert the cutted fiber cable. Details as below illustration:

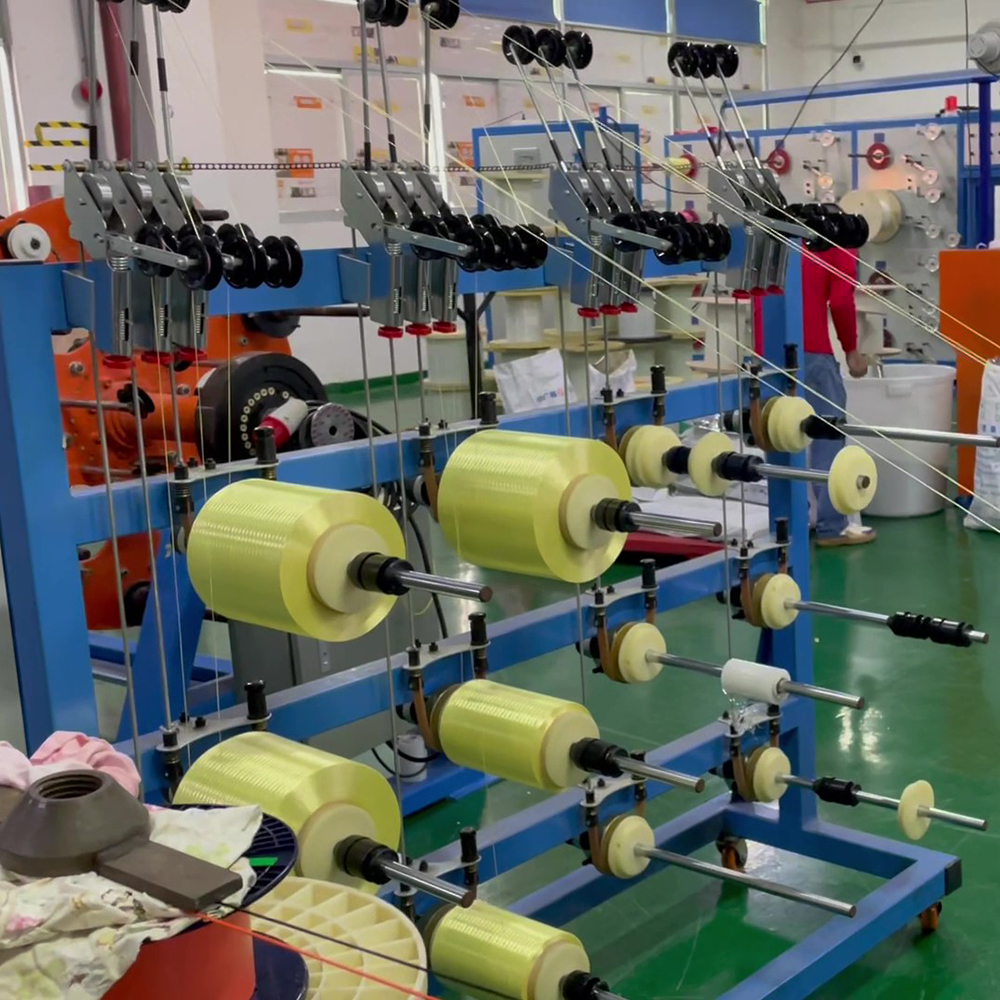

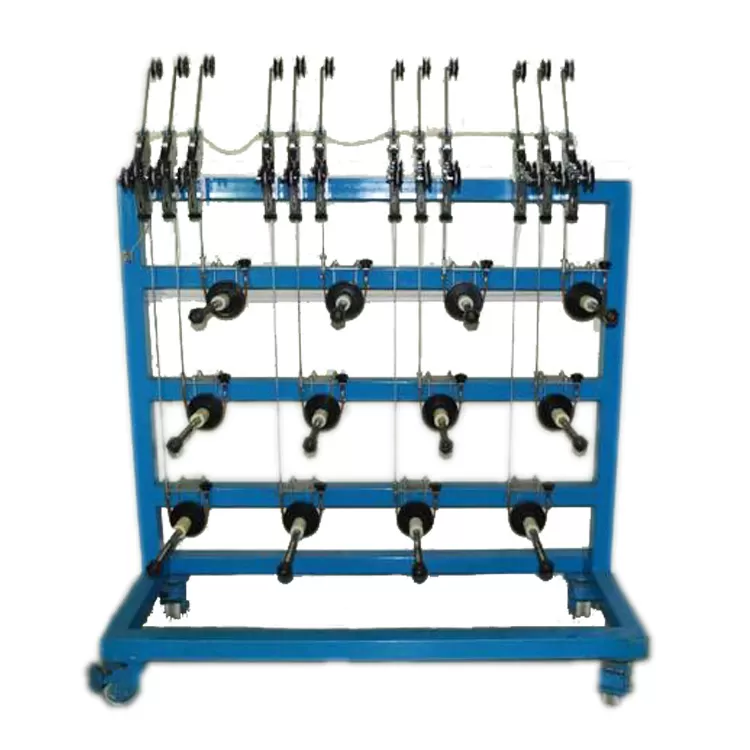

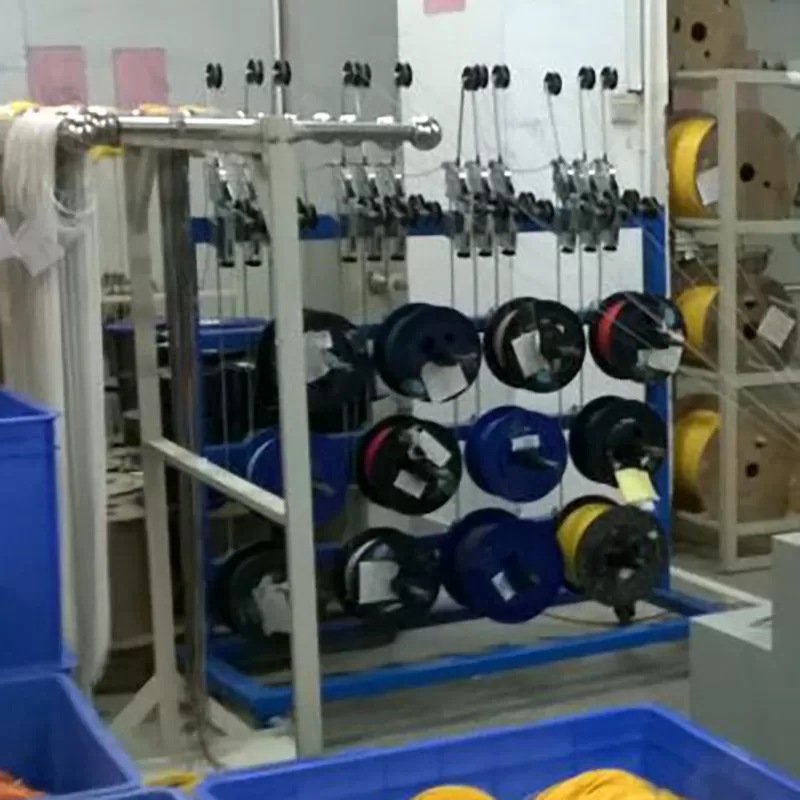

Laying off machine illustrate:
Drawing machine illustrate:
| Power | AC220V 50Hz |
| function | multi cable cut in a setting length |
| Cutting length | 0.1~999.9mm |
| Dimention/weight | |
| Laying off | 1700mm*500mm*1500mm 200KG |
| Drawing machine | 265mm*375mm*400mm 15KG |
| Converter belt | 3000mm*350mm*800mm 40KG |
