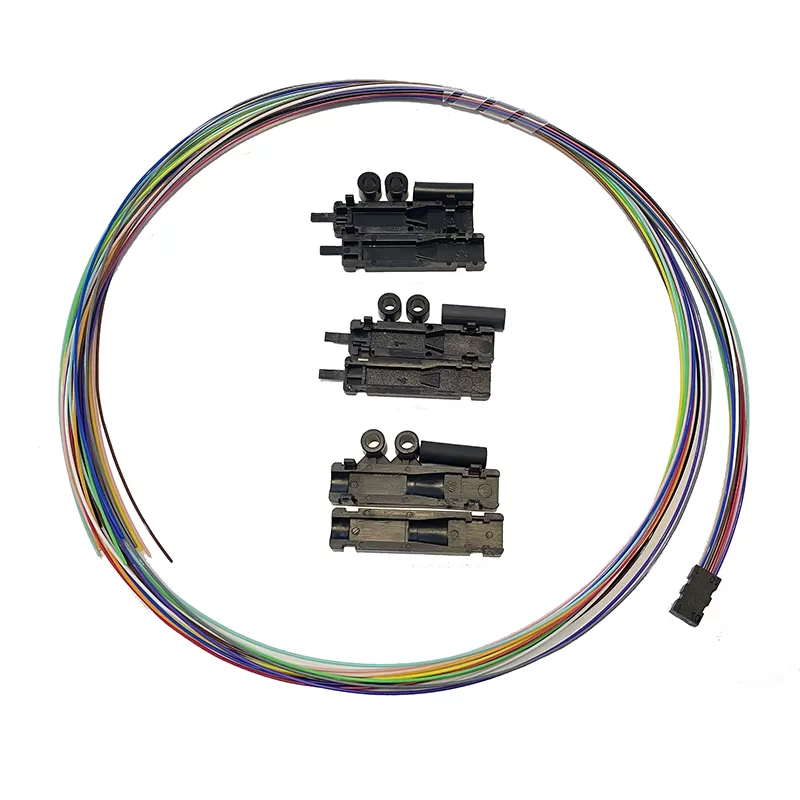

Buffer tube indoor and outdoor single fibres fan-out-kits 0.9mm

Model Number： WT-FOK-06

Product name：Hight quality fan out kit 0.9mm 6C 1M indoor tube

No. of Fiber： 6 core

Use： FTTX

Tube color：blue, orange, green, brown, slate, white,red, black, yellow, violet, rose, and aqua.

Material：LSZH

Inquire Now Next Product

Description Contact Us

Characteristics:

1) Six or twelve fiber capacity.?
2) Available in lengths of 24" or 36".?
3) Tubing colors are blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua.?
4) Fiber Assembly Unit protects fibers.?
5) Separates and routes fibers into the Fiber Asse

Application:

1) The buffer-tube fan-out kits are intended for the furcation of buffer tubes onto 900?m legs as required to field-install connectors on bare fibres.?
2) Different kits are available for applications on stranded loose tube cables at indoor or outdoor cross-connection points.
3) In combination with the transition kits the indoor buffer tubes fan-out kits can be also installed on single maxi-tube cables

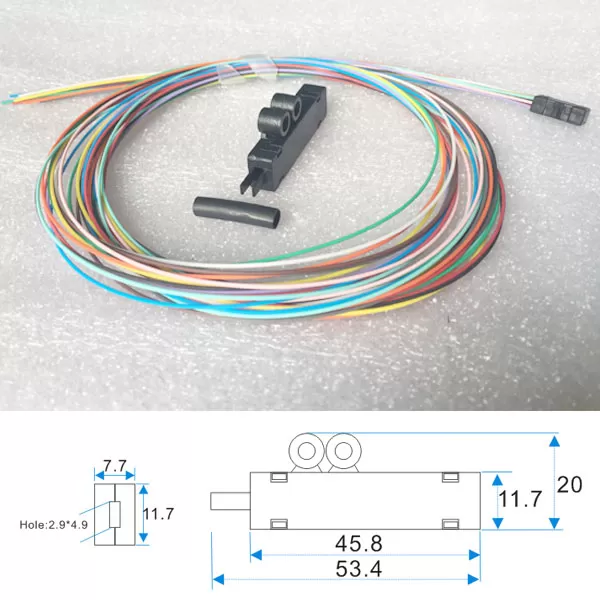

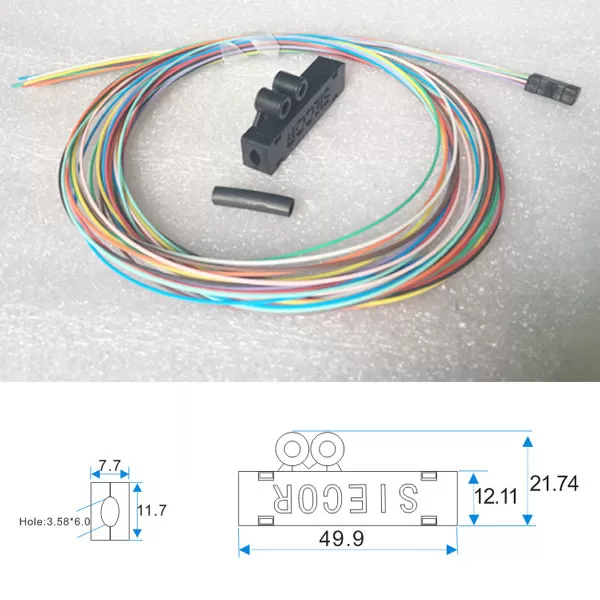

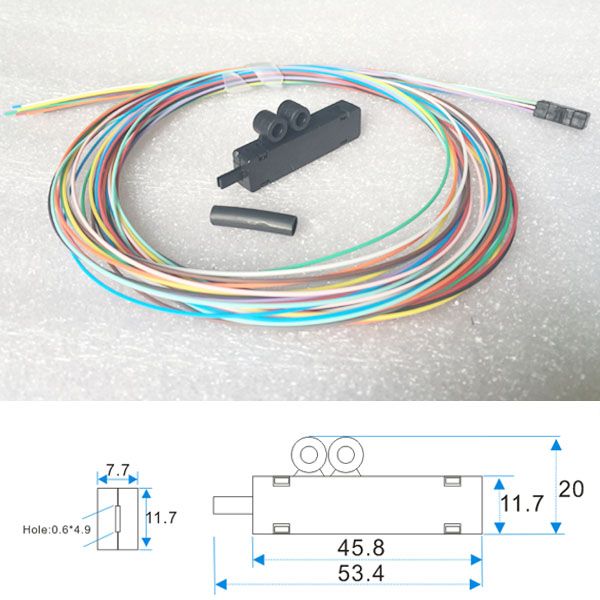

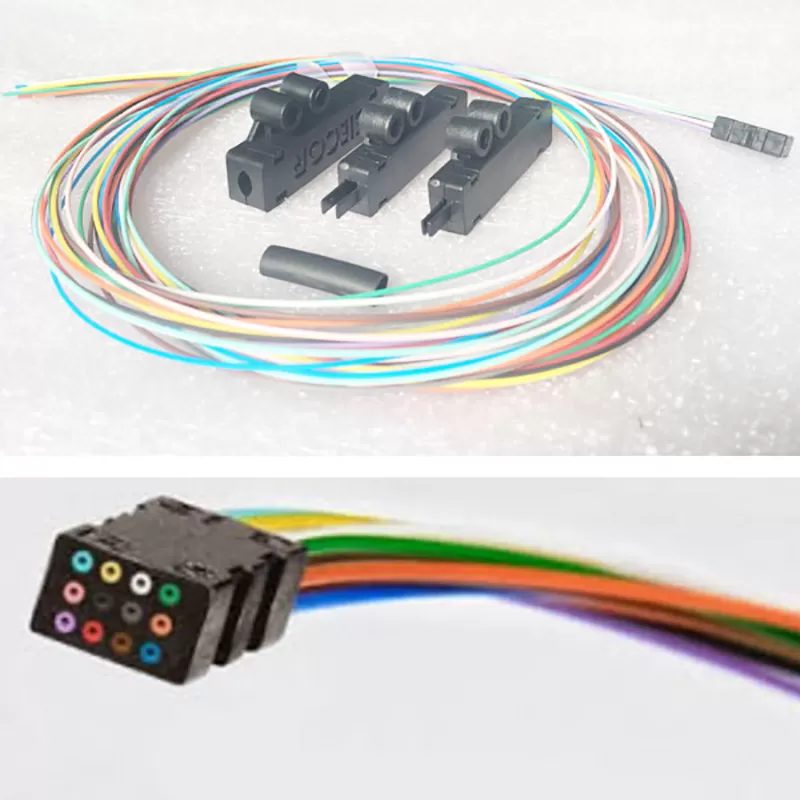

Each fok kit contains the following items:

Item	Qty
FOK bottom	1pc
FOK TOP	1pc
*Color coded assembly for 1 to 12 fibers	1pc
heat-shrink tube	1pc
