Model Number： fanout-kit
No. of Fiber： 6/8/12 fiber
fanout diameter：2mm
input diameter：3.0mm
tube material：LSZH
fiber diameter：250um

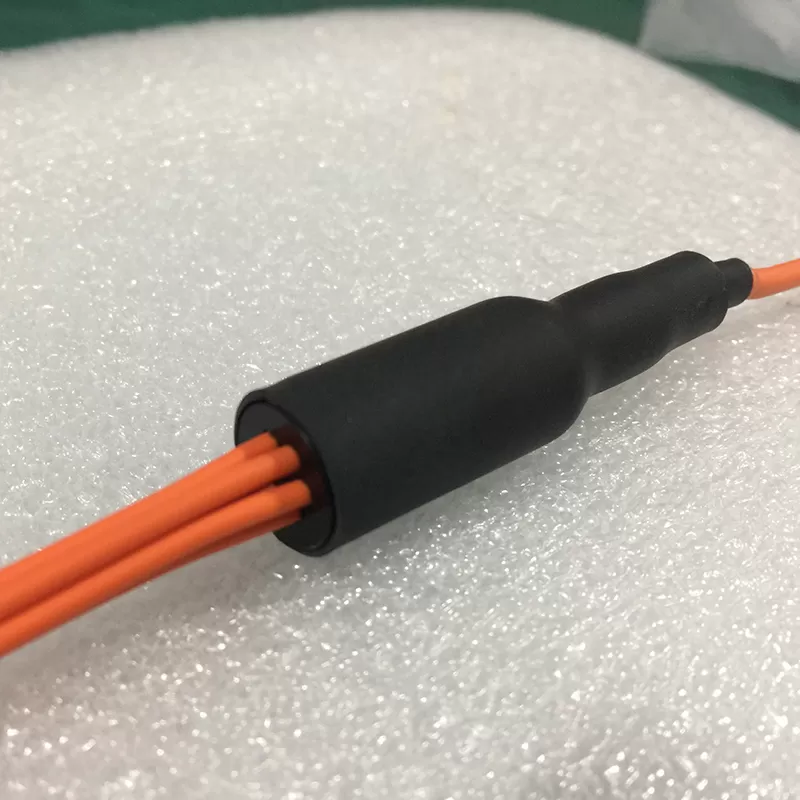

The 6 core 2mm orange multimode 1m LSZH fanout kit are intended for the furcation of buffer tubes onto 2.0mm legs as required to field-installconnectors on bare fibres. Different kits are available for applications on stranded loose tube cables at indoor or outdoor cross-connection points. In combination with the transition kits the indoor buffer tubes fan-out kits can be also installed on single maxi-tube cables

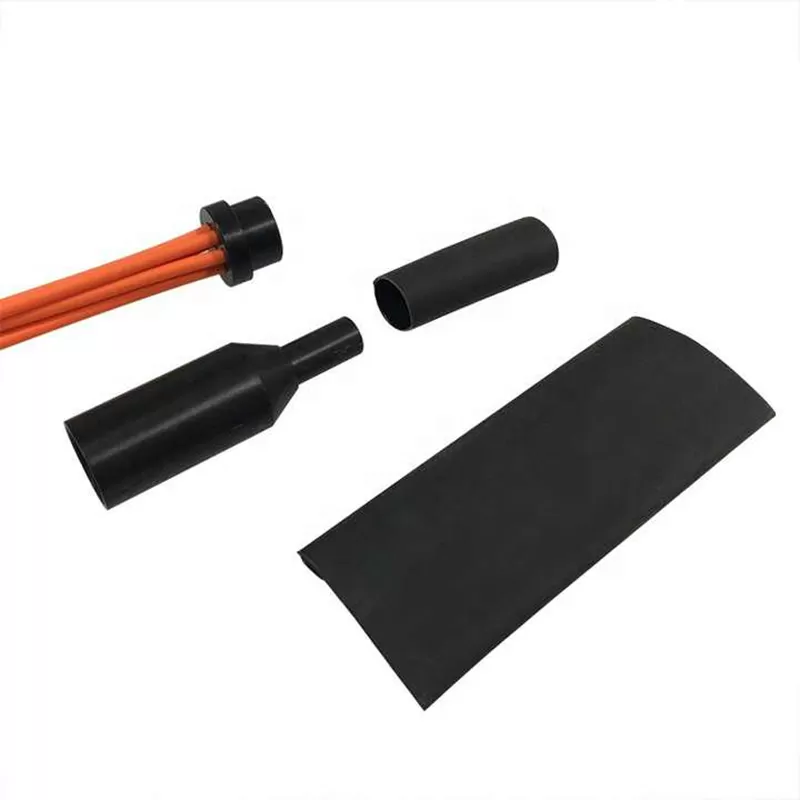

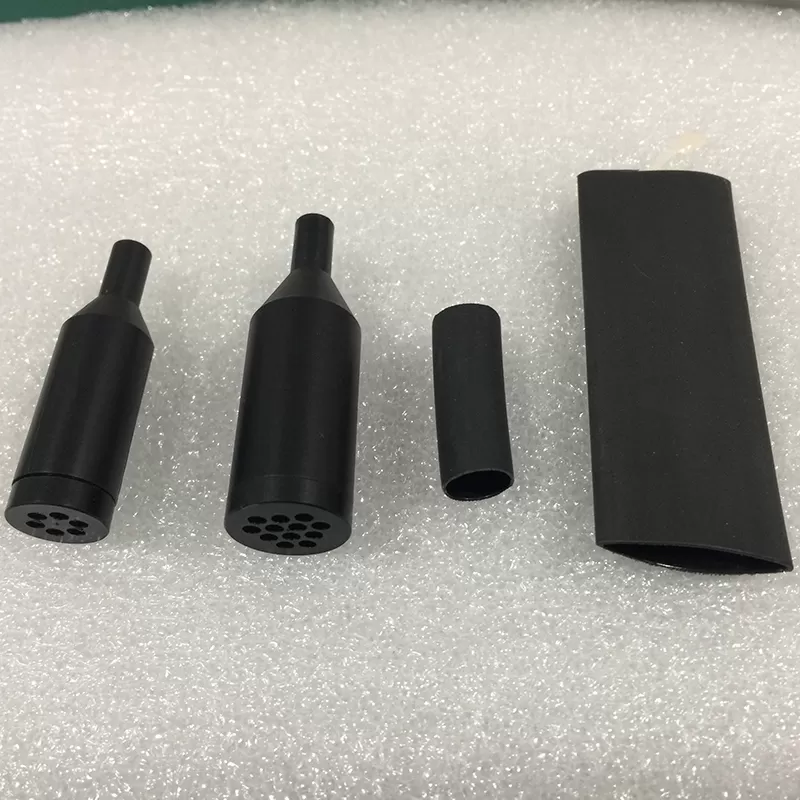

Each fanout kit container below spare parts
| FOK Bottom | 1pc |
| FOK Top | 1pc |
| 2.0mm or 3.0mm empty tube ( inner 0.9mm buffer tube) | 6pcs |

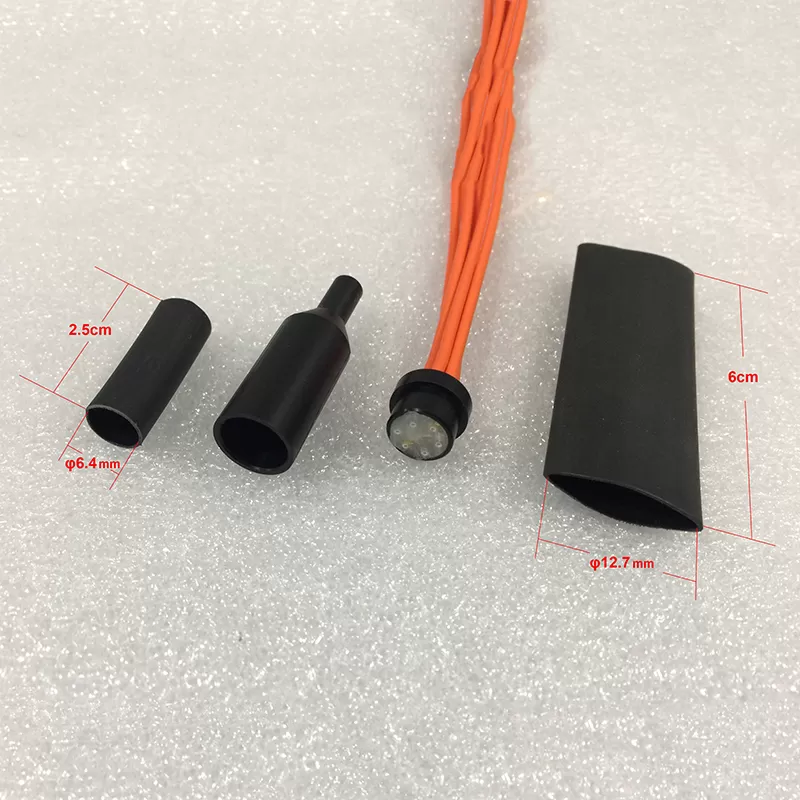

| heat shrink tube 6.4mm*2.5cm | 1pc |
| heat shrink tube 12.7mm*6cm | 1pc |
