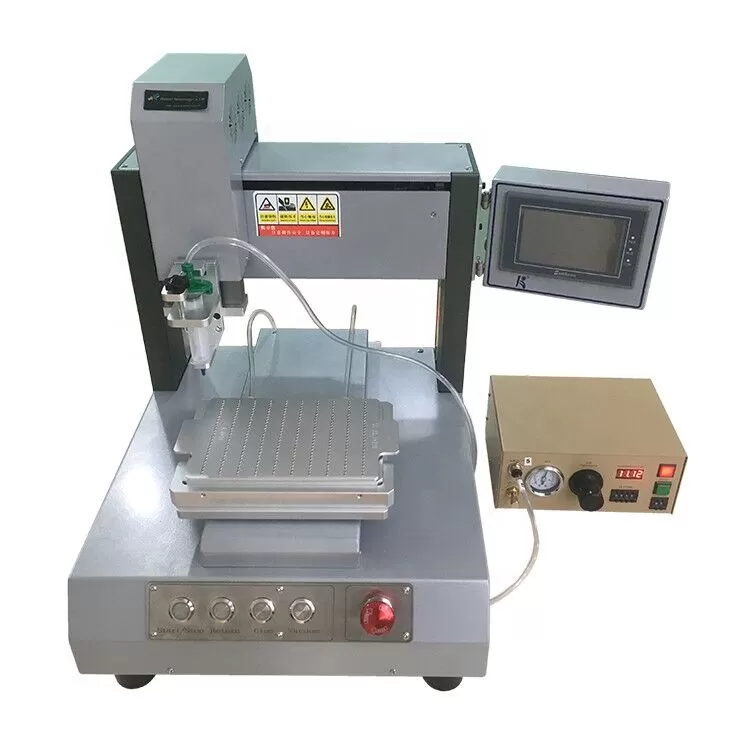

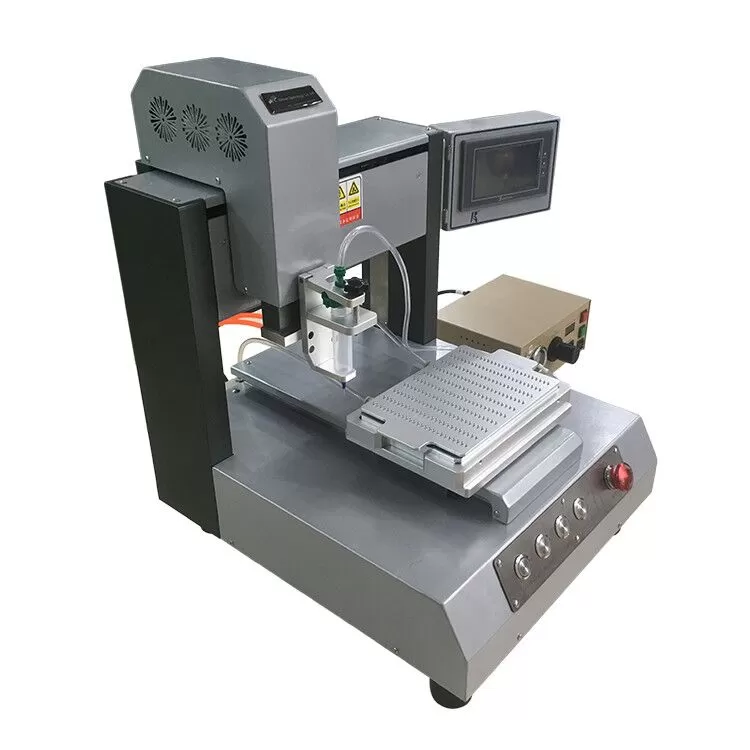

Automatic fiber optic epoxy injection machine for patch cord Production

Automatic fiber optic epoxy injection machine for patch cord Production

Model Number: WT-150T

Use: suitable for SC FC LC ST E2000 MU dispensing path.

Program recording mode: 100groups, 400 points per group( Can support U disk copy)

Display mode: Touch screen

Installation dimensions(W*D*H mm): 413*439*534

Ambient temperature: 5~40℃

Ability to decompose: 0.01mm/Axis

Operating mode: Point to point/continuous line segment

Working environment humidity: 20~90%

External control interface: RS232

Inquire Now Next Product

Description Contact Us

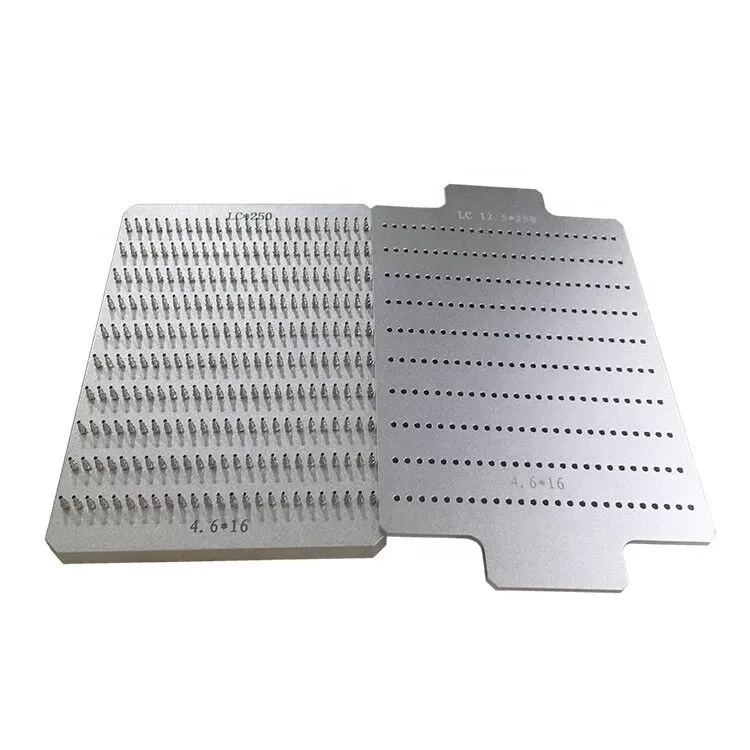

Automatic Optical Fiber patch cord epoxy injection machine specially designed for mass fiber optic patch cord production. special designed 1.25 mm and 2.5 mm holding jig for precise epoxy injetion. save labor, high efficiency

Features

1.Stable performance, reliable quality

2.Simple and convenient operation, high speed and precise

3.Chinese/English optional operation interface

4.Single machine can be operated and installed the easiest The F series three axis automatic dispensing robot can operate in a single machine without the need of an external computer.It is not only easy to install, but also easy to operate.

5.Humanized teaching box program setting The F series threeaxis automatic dispensing robot can operate in a single machine without the need of an external computer. It is not only easy to install, but also easy to operate.

6.Professional interpolation control system The carefully developed control card makes the F-Series three axis dispensing robot a truly intelligent CNC threeaxis dispensing device for the SC FC LC ST E2000 MU dispensing path. (Non-standard fixtures are sold separately)

7.Suitable for automatic dispensing of ceramic ferrule

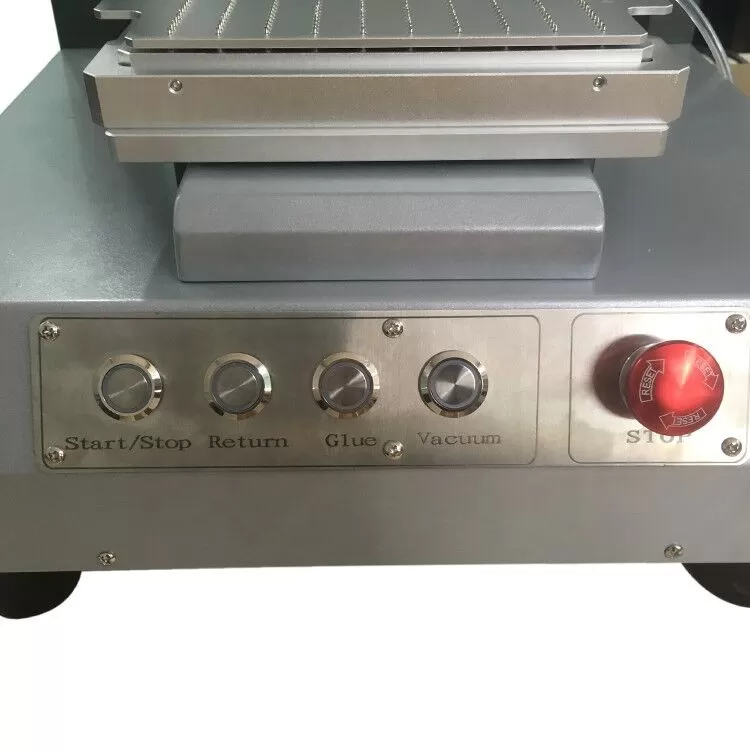

8.The needle control button on the machine is more convenient than the debugging of similar products.

Scope of dispensing X/Y/Z(mm)		200/200/50
Maximum load Y-AXIS / Z-AXIS		8kg / 3kg
Movement speed X&Y / Z (mm/sec)		0.1~800 / 350
Ability to decompose		0.01 mm/Axis
Repeat accuracy		+/- 0.02 mm/200
Program recording mode		100 groups, 4000 points per group( Can support U disk copy)
Display mode		Touch screen
The motor system		Japanese micro step stage precision motor
Operating mode		Point to point/continuous line segment
The transmission way		Synchronous belt + precision linear guide rail
Sports tween function		3 axis (Any route in 3D space can be used)
I/O Signal		8 Inputs / 8 Outputs
External control interface		RS232
Input power		AC110/220V(Internal switching) 300W
Ambient temperature		5~40℃
Working environment humidity		20~90%
Installation dimensions(WxDxH mm)		413×439×534
Machine weight		28kg
