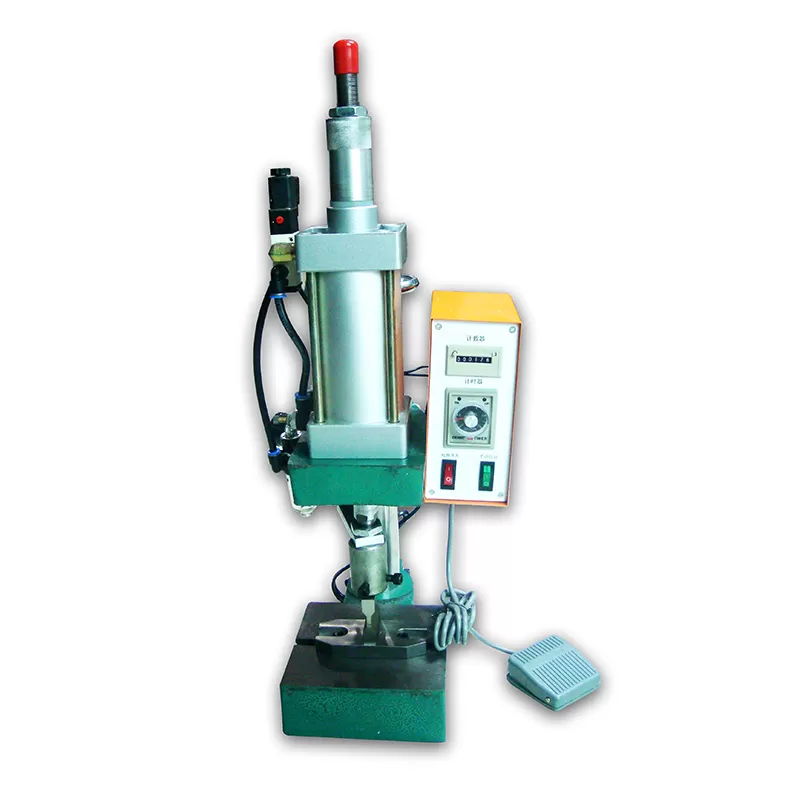

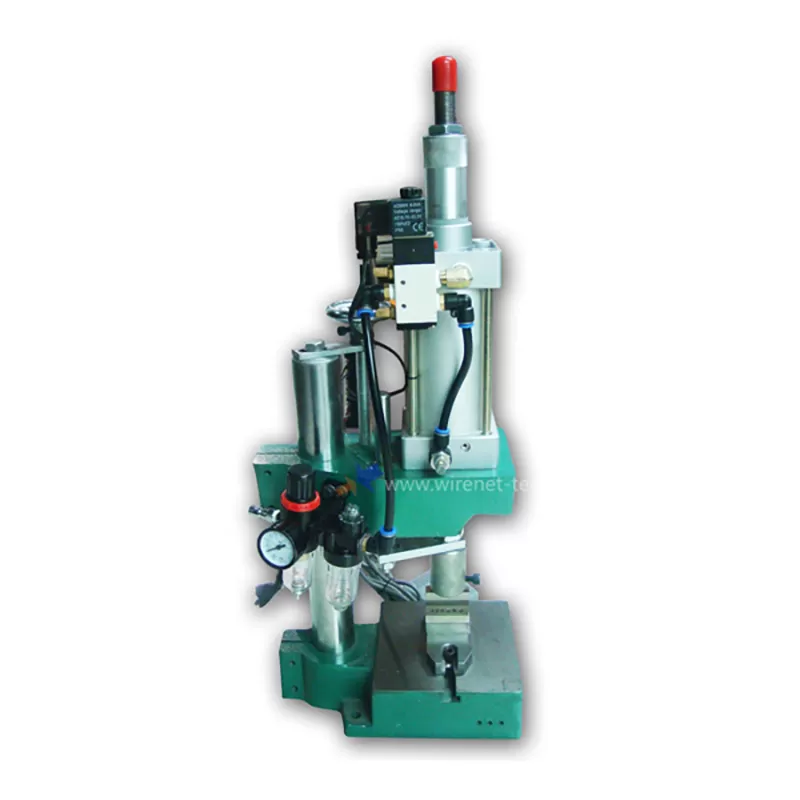

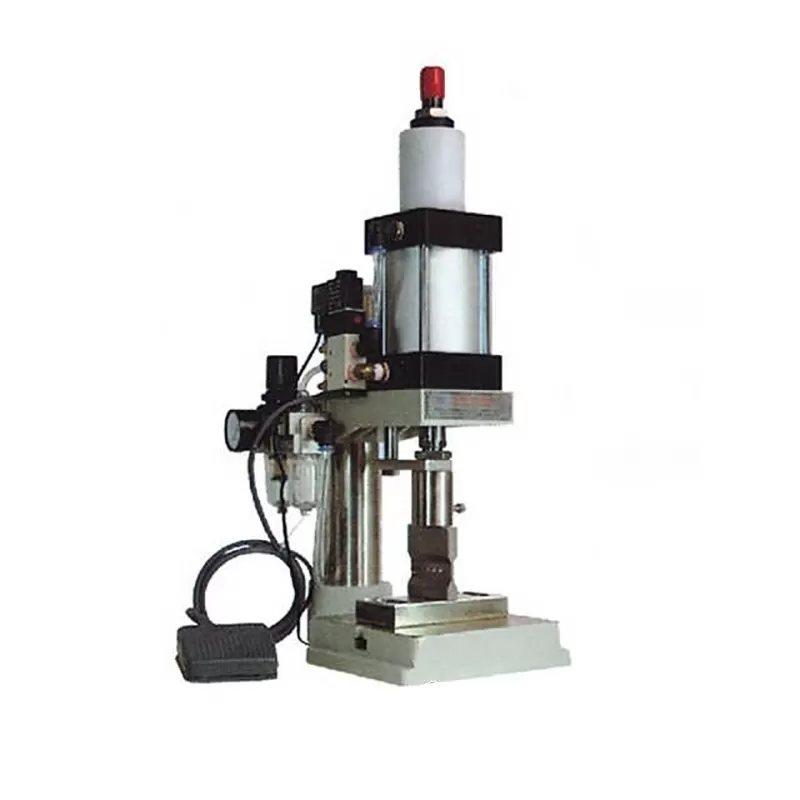

Fiber optic pneumatic crimper Optical fiber connector crimping machine

This product be used in the fiber optic connector assembly and other product compression connection assembly, taking compressed air as power, Through solenoid valve control movement, the operation simple security.

The parameter and performance:

This product work by the air cylinder and the lever principle, through replacing compression jigs, can adapt different components assembly and compression .The pressure can be adjusted by the footswitch. the operation is simple and reliable, the processing efficiency is high, the processing quality is stable, the maintenance is simple and convenient.

Product introduction

1.Use 0.2-1MPA compressed air as a power source, low noise, pollution-free, easy to operate, external AC220V AC power and total power consumption does not exceed 20W.

2.The mechanically actuated is double-button switch (or pedal control switch) design.

3.Cylinder downstream speed adjustable, cylinder stroke is adjustable, also according to customer requirements.

4.Only need to adjust the air pressure regulator can achieve the required fitting force, simple and convenient.

5.Single columnar three side open design, lightweight and does not occupy space, simple structure, little maintenance, high production efficiency.

6.Can add the fever molds and wisdom temperature controller, suitable for thermoforming, branding, embossing process.

7. Automatic counting, pressure loading time setting function

8. Product parameter: Engine Type: pneumatic nominal pressure: 200 (kg)

Cylinder Specifications: 100mm * 200mm adjustable stroke: 100mm

Testing

1, Fixed to the machine on the bench, and then loaded on the needed mold.

2, Connected to the gas source, to open push-and-pull switch, adjust the location of the mold. (When Adjusting,can use the manually presses on the solenoid valve).

3, Plug in the AC power supply AC220V, power plug auto transformer for DC DC24V, input control box to adjust the pressure of the pressure relief valve on the pressure reduction value "pressure adjustment" adjusted trial pressure (5kg). At this point, the mold would rise to the top dead center (this designed primarily for the safety of the staff).

4, Open the control box power switch, press the manual switch to see the power indicator lights and counters. Press the pedal control switch then the mold will decrease, when the cylinder completely dropped, then know that the fine tuning probably stroke, and then adjust the stroke, come and go several times, adjustable good upper and lower mold stapling position.

5, Next put the workpiece on the mold for testing, if the pressure is too low, adjustable pressure reduction value, (clockwise to increase pressure, counterclockwise to decrease the pressure) until you have adjusted to the desired pressure, and then adjust parts of downward pressure on the pressure relief valve (can be locked).

Stroke Adjustment

Loose the two locking screws behind of the plate column,screw the middle screws until the support plate can rotate. Then turn the hand wheel can adjust the up and down stroke.

Pressure Adjustment

Pull up to the upper end of the regulator gently clockwise to turn up the pressure, clockwise opposite, adjusted to the pressure is considered satisfactory, and locking in order to avoid the pressure change. The operation is simple and convenient..

Time Adjustment

 (turn off the power first, gently regulation, excessive force can damage the time relay.)

The time relay small round box can set the corresponding time according to the product.

Counter

User-friendly points, one business day down, as soon as look at the counter, you can know the volume of production. Counter can save data when the power outages and the power is turned off, press the middle of the black button on the counter can be reset to 00000.

Automatic drainage

Close sliding switch, the water of the cup will automatically shoot.

Emergency stop

Carefully operation when working, in case of unforeseen circumstances, to turn off the power switch on the control box, the top press mold can rising rapidly.

Precautions

For long time not use this machine, it is recommended that the push-pull switch, power switch are closed.
