Model Number: WT-HO-01
Working voltage: AC 220V
Heating time: 99.99 hours adjustable
Temperature: 0°C~300°C
Operating frequency: 50-60HZ
Single package size: 30X15X8 cm
Single gross weight: 3.000 kg

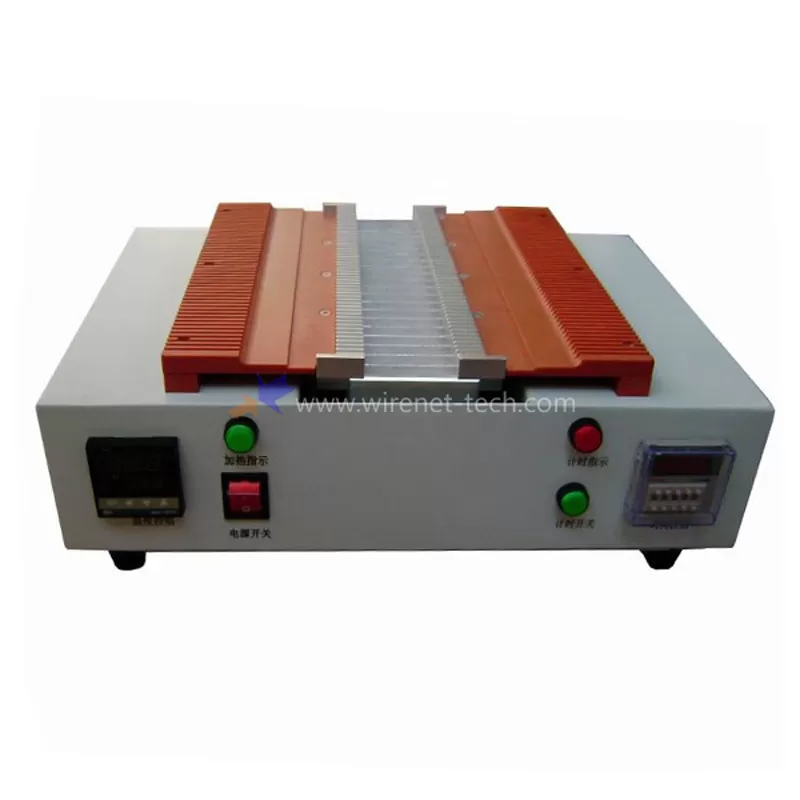

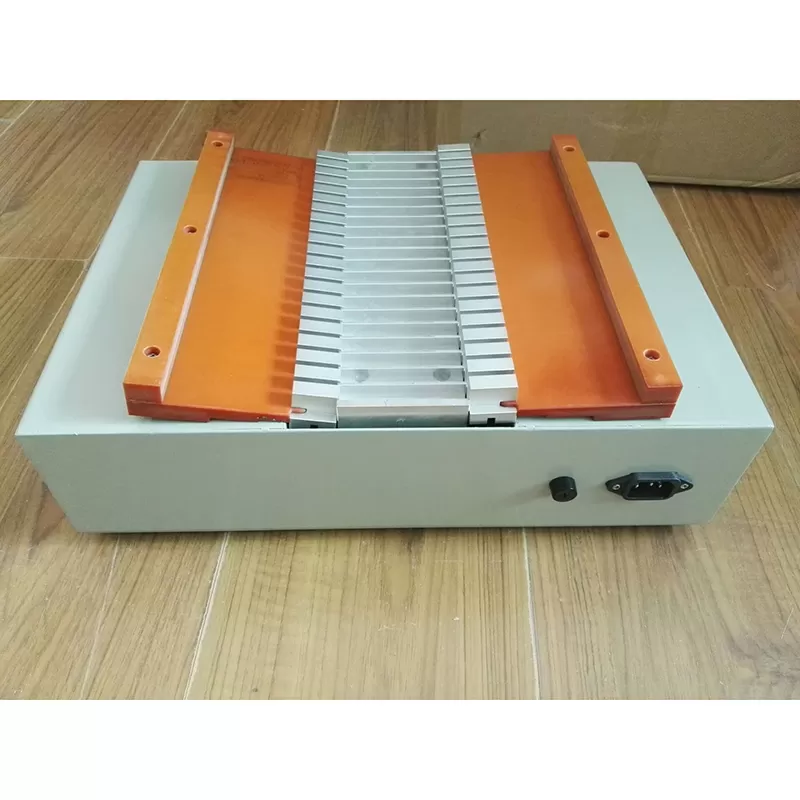

The curing oven suits to the fiber optic connector manufacturer, used to heat and solidify each kind of optical fiber attachment, such as FC, SC, LC, MU, ST, especially for MT, MPO connector. Can solidify 100 ferrules or 42 connectors one times. Used the Japan electronic component control, the temperature control is stable. The temperature control appliance has the self regulating (PID) function, the temperature can be set freely, the precision of temperature control is possible to reach 1°C.Heating time adjustable.
Performance characteristic:
Designed specially according to the fiber optic connector, avoids the questions of breaking the fiber, pulling the fiber, examining not convenient and so on.
The free hypothesis datum temperature, the humidity automatic control, the controllable temperature is 0°C~300°C, the precision of temperature control is possible to reach 1°C; Heating time adjustable.
Two kinds of control patterns can be chosen
A, To heat up the pattern continuously
The long time heats up continuously, maintenance constant temperature, power source master switch control.
B, Fixed time reports to the police the pattern
Fixed time the buzzing reports, maintenance heating.
| Working voltage: | AC220V |
| Operating frequency: | 50-60HZ |
| Output: | 800W |
| Temperature range: | 0°C~300°C |
| Heating time: | 99.99 hours adjustable |
