Model Number: Vertical Pneumatic Optical fiber Crimper
Voltage: DC12V
Weight: 55Kg
Max. Pressure: 1000Kg
Max. Air pressure: 0.8Kg
share:

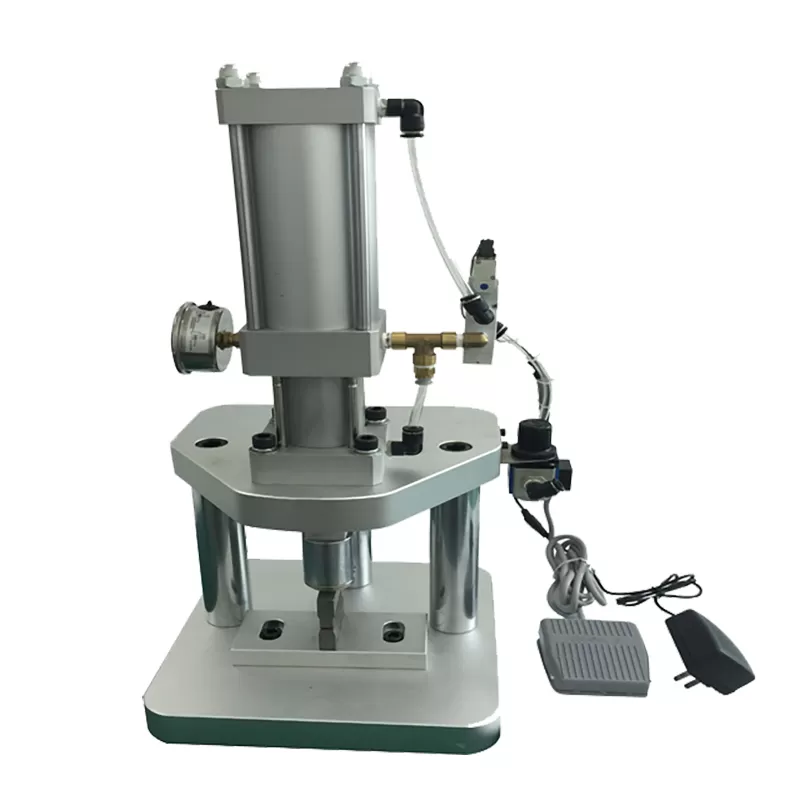

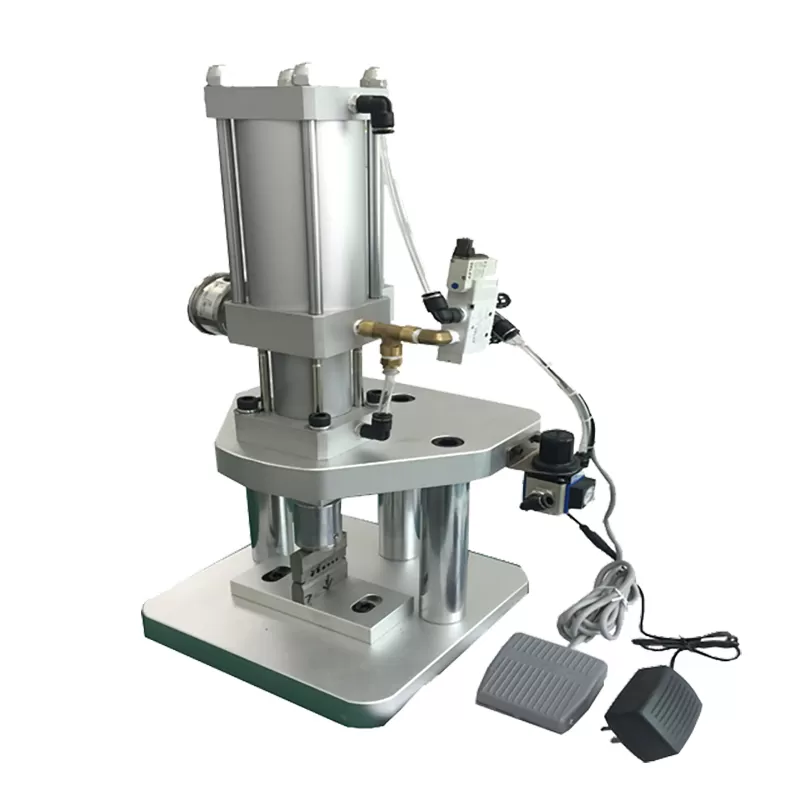

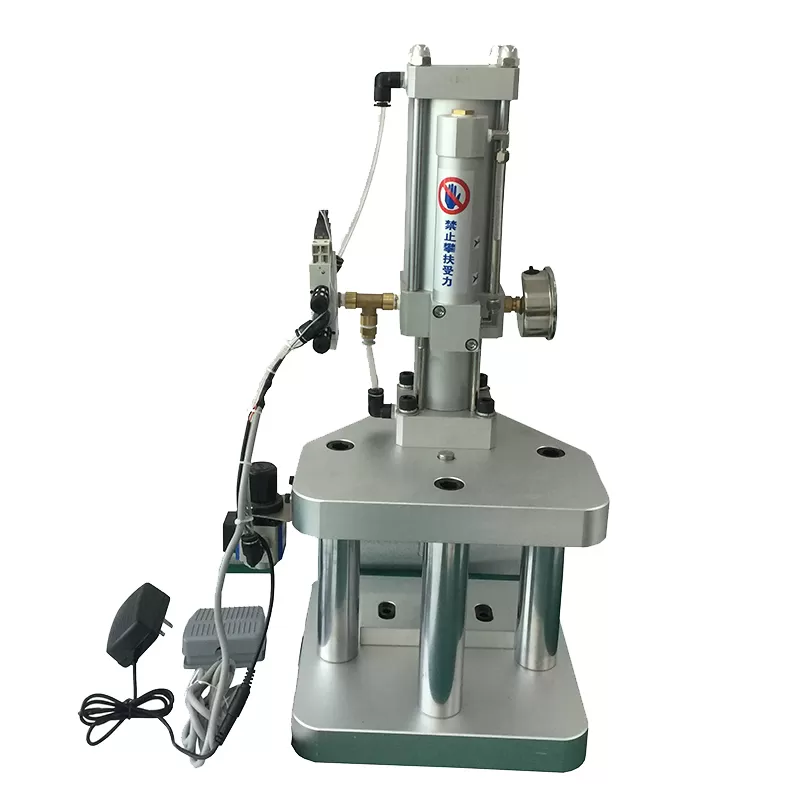

This machine is used for crimping aluminum ring during the manufacture of optical fiber patch cord. The work is done by one shot, steady and not easy to loose.The booster cylinder’s max pressure could reach 1 ton The crimping mold is casted at one time. Heat treatment enables the hardness reach HRC63. It can also used for MPO, MTP, 7.0mm cable crimping. By replacing the crimp tooling can be adapted to different parts assembly and crimping. According to customer needs, customized different crimping tooling.
Features
The pneumatic crimping Machine can crimp a variety of connectors
Could provide connector crimping mould, adapter and metal tailstock crimping mould
Different crimpling process equipment can be customized based on customer requirements
Operation simple and reliable; high processing efficiency
Cable crimping machine used in mass production of patch cord,savint time and labor ,more fixed
Adapt to different accessory assembling and pressure by replacing different forks
Pressure adjustable, Operation simple and reliable
Pneumatic power, efficient and safe
Application
Applied for assembling fiber optic connectors, ceramic ferrules and fiber optic adapters
Available for different kinds of fiber optic connectors, such as FC, ST, SC, MU, LC, E2000, LX.5 and so on
Easy to handle, High quality and High efficiency
Voltage | DC12V |
Weight | 55Kg |
Max. Pressure | 1000Kg |
Max. Air pressure | 0.8Kg |
