Model Number: Fiber Optic Loopback
Insertion Loss Singlemode (Typical): ≤1 dB
Return Loss Singlemode (PC): ≥55 dB
Return Loss Singlemode (APC): ≥65 dB
Storage Temperature (°C): -40 to +85
Operating Temperature (°C): -40 to +70
Fiber loopback is a labor-saving, simplified and efficient testing method. Providing a variety of loopbacks in every fiber mode, gender and polarity will modernize the way you certify your fiber network.Loopback is useful for troubleshooting difficult physical connection failures.
Application:
1.Linking TX/RX channels for single ended testing of networks
2.Providing a demarcation point in a network
3.Trouble shooting of network testing
Characteristics:
1. Compact design for ease of use
2.Moulded casing to protect optical fibre
3.Low insertion loss
4.Complies with Telcordia EIA/TIA and IEC standards
5.Ultra low back reflection
6.Environmentally stable
7.Available as loopback attenuators on request

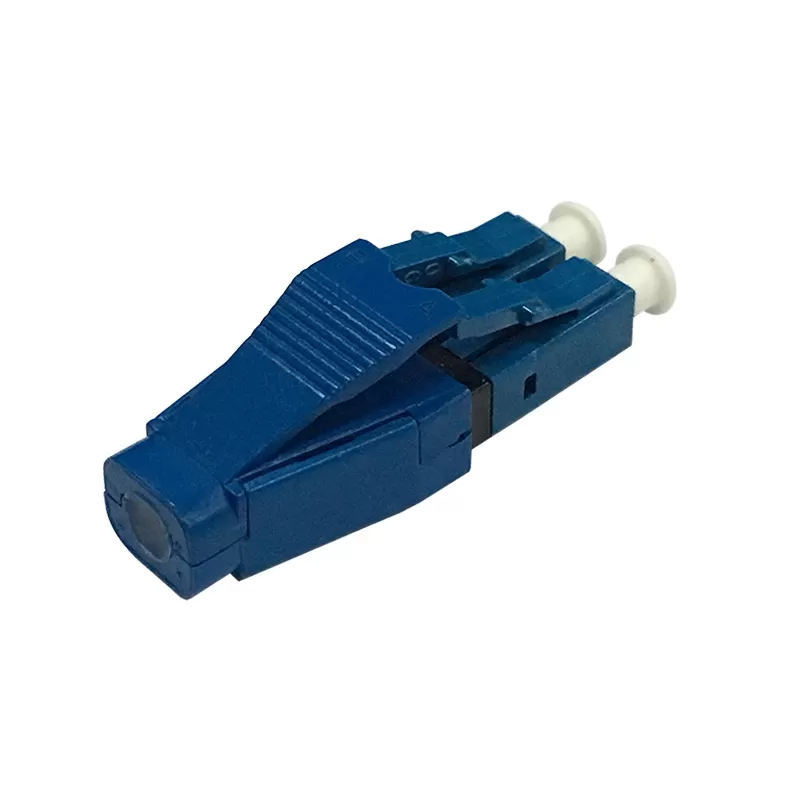

Available in SC and LC connectors with UPC or APC polishing, our loopback adaptors are ideal for testing equipment and networks. A hard shellaround the fibre loop protects the optical fibre from outside interference.
