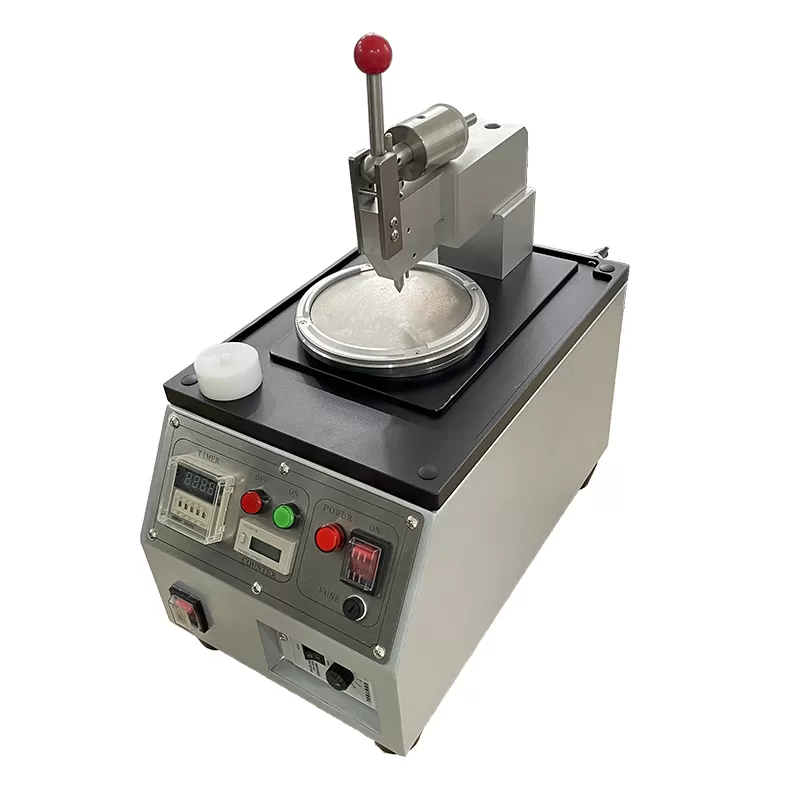

Center pressure Fiber Optic Polishing Machine For patch cord production

Features

 * May process each kind of standard fiber optic connectors, such as FC/UPC/APC,SC/UPC/APC, ST/UPC/APC, LC/UPC/APC,MU/UPC/APC, MTRJ,E2000/UPC/APC etc

 * Convenience for adjusting pressure, unloading and replacing jigs

 * Excellent connector and face polishing quality, the percentage of products sent back for repair is very low.

 * Save material and low cost for grinding

 * Easy to use and stable

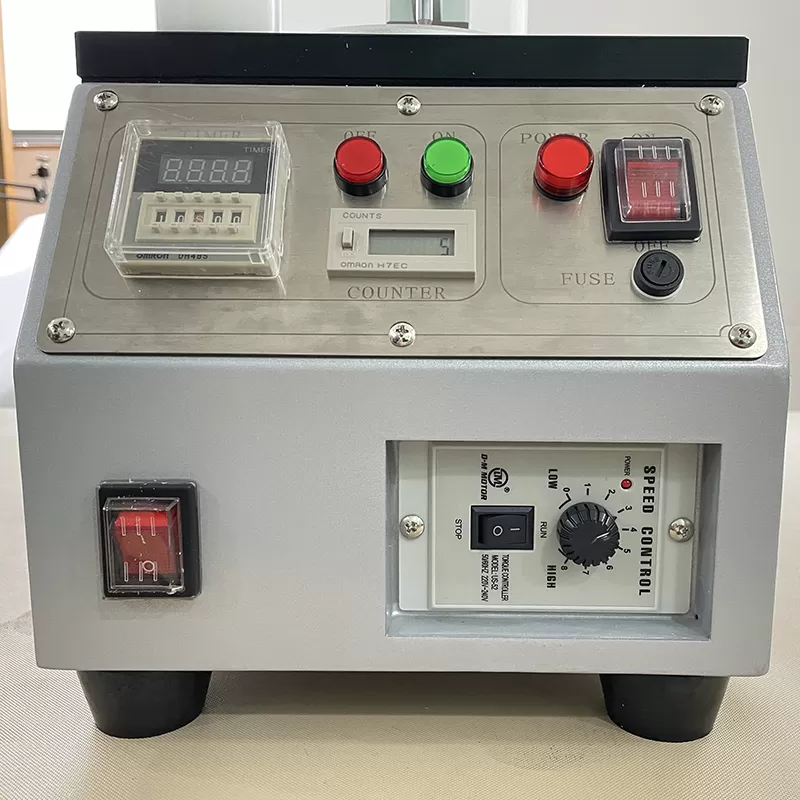

 * Display grinding speed which can be adjusted any time

 * Control the direction with pro and con, convenience for Adjustment

 * Toothed gearing, more stable and deep-set

Application

Fiber optic polishing machine central pressure type is a machine specially for polishing all types of the fiber optic connnectors, like the fiber optic patchcord, pigtail, ribbon patchcord/pigtail, adding connectors fo the PLC splitter, energy fiber, glass fiber, and fiber is the pre-terminal fast connectors.

Now the usage for the polishing machine has been very mature, it is used with other fiber optic equipment, like the fiber optic cable cutting machine, fiber optic microscope,heat oven, crimping machine, insertion loss and return loss tester, ultrasonic cleaner etc. to build up a production line for patchcord, pigtail, pre-terminal fibers for the fast connector.

How to set up a patch cord production line, see below pls
