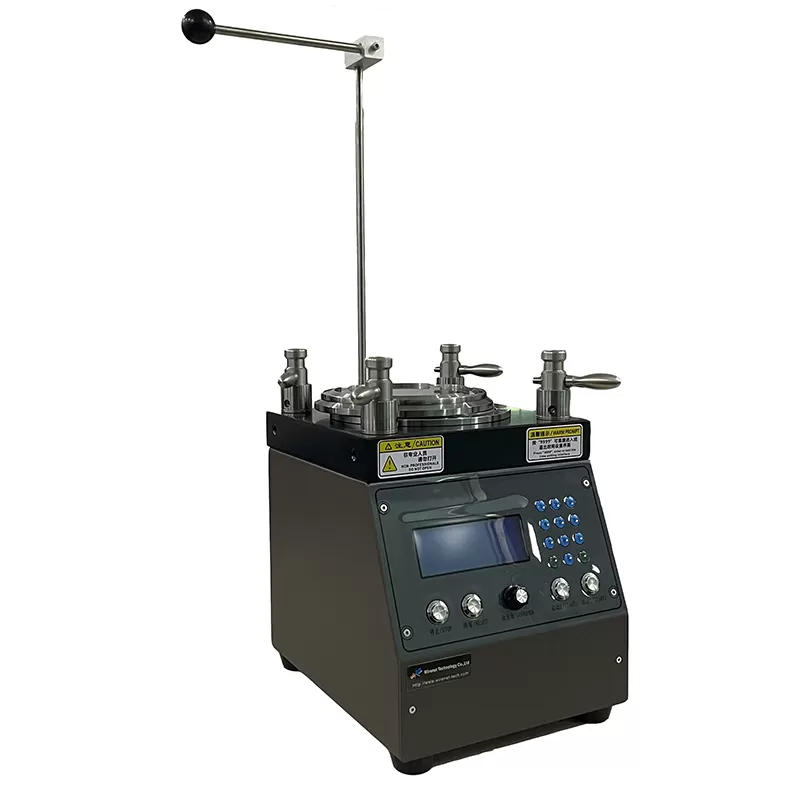

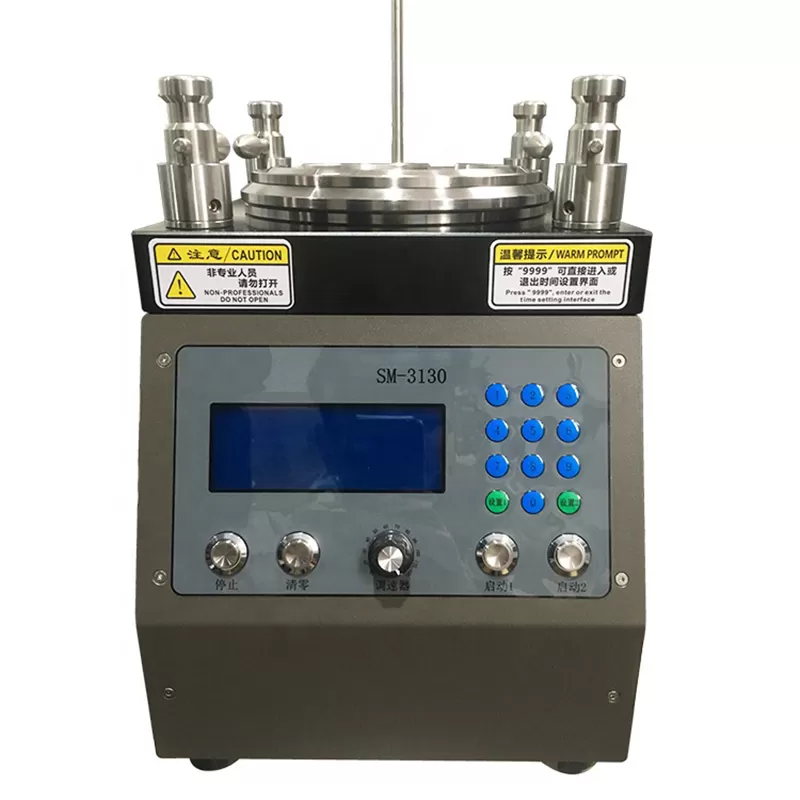

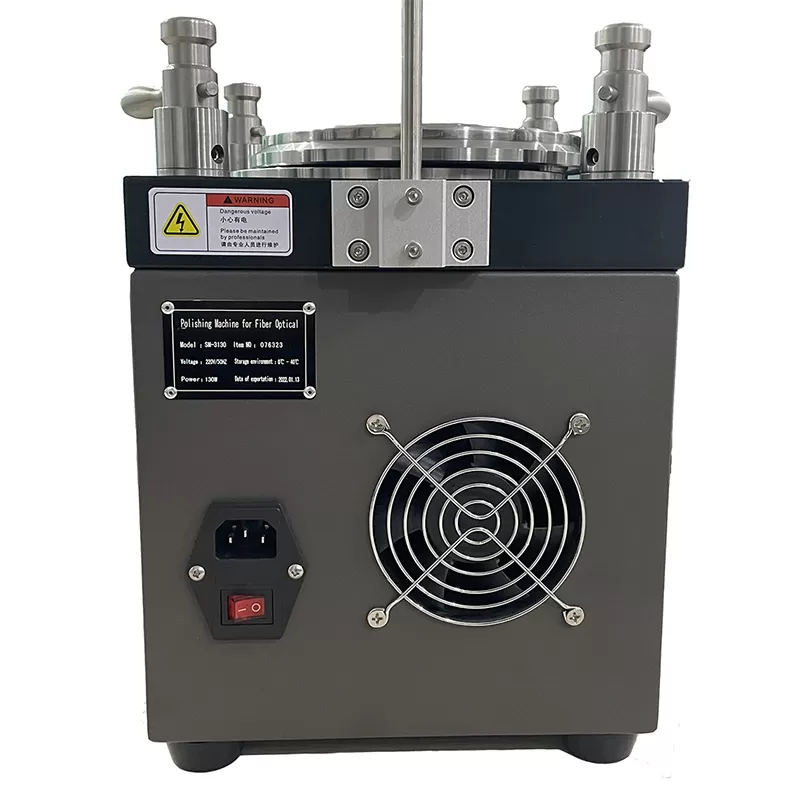

Grind Optical Patch Cords Connector ferrule Four Corners Fiber optic polishing machine

Fiber optic polishing machine squre pressure type is a machine specially for polishing all types of the fiber optic connnectors , like the fiber optic patchcord , pigtail , ribbon patchcord/pigtail , adding connectors fo the PLC splitter, energy fiber, glass fiber, and fiber is the pre-terminal fast connectors.

Now the usage for the polishing machine has been very mature,it is used with other fiber optic equipment , like the fiber optic cable cutting machine , fiber optic microscope , heat oven,crimping machine, insertion loss and return loss tester, ultrasonic cleaner etc. to build up a production line for patchcord, pigtail, pre-terminal fibers for the fast connector.

Features

--May process each kind of standard fiber optic connectors, such as FC/UPC/APC,SC/UPC/APC,  ST/UPC/APC, LC/UPC/APC, MU/UPC/APC, MTRJ,E2000/UPC/APC etc

--Convenience for adjusting pressure, unloading and replacing jigs

--Excellent connector and face polishing quality, the percentage of products sent back for repair  is very low.

--Save material and low cost for grinding

--Easy to use and stable

--Display grinding speed which can be adjusted any time

--Control the direction with pro and con, convenience for Adjustment

Characteristics:

1. If supporting the use of our grinding fixture then its no need to make any adjustment.Besides the crafts influences,Interference passing rate can reach 100%,Offset mainly within 35UM. End face 3D indicators will over GR-326 requirements.

2. It can store 2 kinds of product parameters and can be free to adjust the grinding process time, simple operation.

3. Each process can adjusted grinding speed (10 ~ 120 rpm) to ensure maximum process

flexibility and the best product quality meanwhile improving the use of grinding efficiency.

4. Grinding programme is with PLC Module and film LED Showing Screen which shows the current speed, time, the number of grinding tablets, which will good for control the quality of the process.

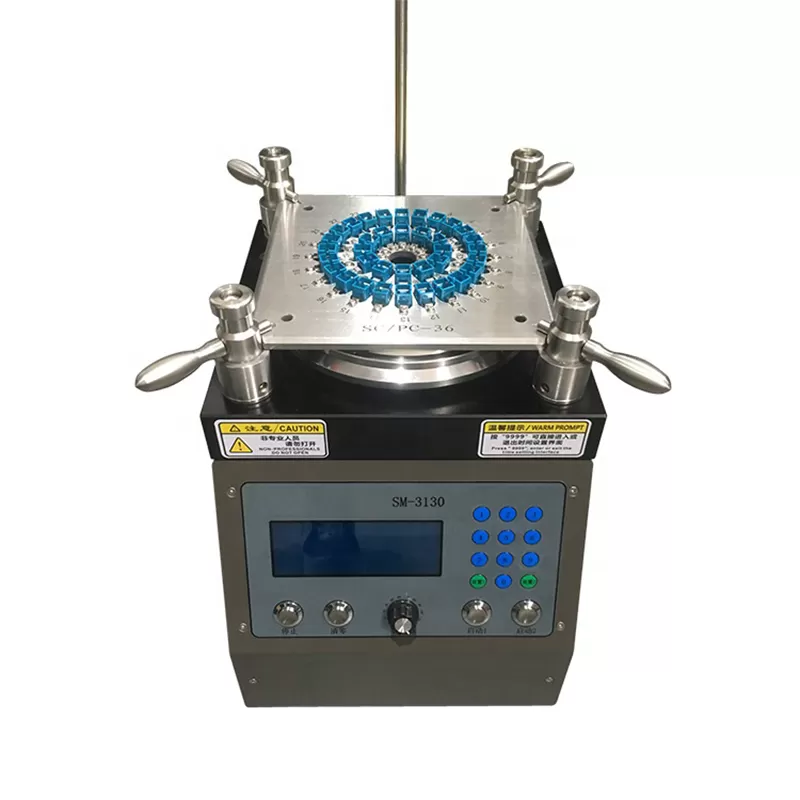

5. Independent pressurized Jigs ensure highest 3D passing rate , it is no difference even for 50pcs Fibre Optics.it can create efficient grinding with various types of connectors. Such as more than 50pcs LC connectors and 36pcs SC connectors at once in a short time.

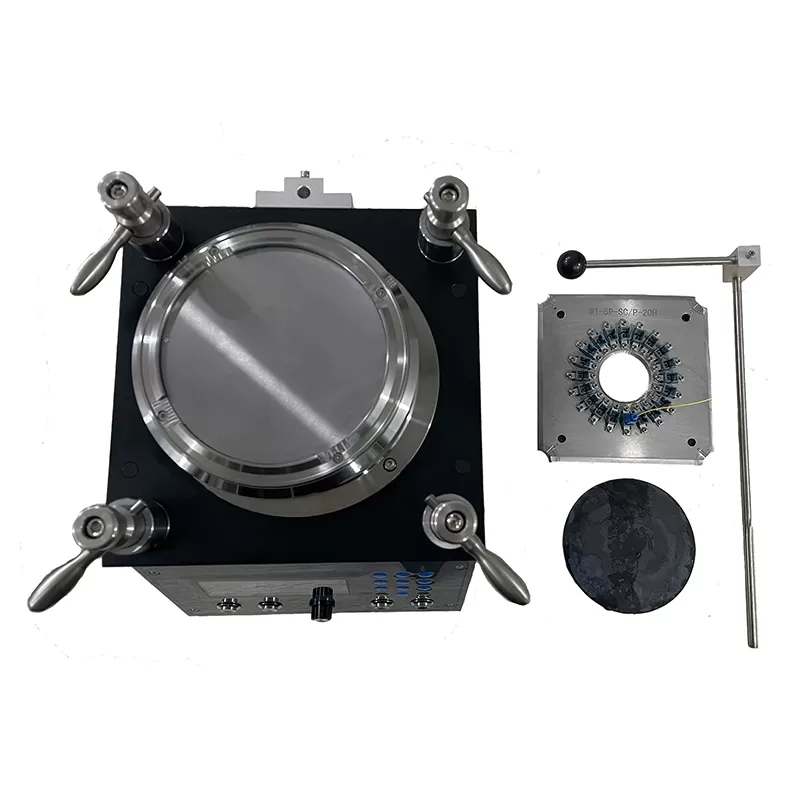

6. Equipped with our special grinding fixture, you also can grind other types of ceramic pins or bare fibers,and some glass, plastic connectors or miniature devices.

7. The main devices is from famous brands with new transmission structure so that its mechanical jitter is less than (≤ 0.01mm). Both life time and accuracy are3-5 times than the use by ordinary models.

8. This model is fit with most fixtures on the market. Adjustable speed grinding machine and process a variety of fiber optic connectors, for example:LC/UPC,LC/APC,FC/UPC,FC/APC,SC/UPC,SC/APC,ST/UPC,MT/PC,MT/APC,E2000 and so on.With Strongly loading capacity for allowing grinding of more than 48 SC fiber optic connectors (standard 18 to 50 connectors) It can be achieved in the strict control of the grinding costs and maintain high quality and consistency.Easily operation and maintenance required no special skill workers.

Grinding process

1)2.5mmPC ceramic ferrule with PC grinding process Suitable Fixtures:SC/PC-24   SC/PC-36   FC/PC-24   FC/PC-32   ST/PC-24

2)2.5mmPC ceramic ferrule with APC grinding process

Suitable Fixtures:SC/APC-24   SC/APC-28   FC/APC-24   FC/APC-28

3)2.5mmPC ceramic ferrule with PC/APC grinding process

Suitable Fixtures:LC/PC-24   LC/PC-36   LC/PC-50   LC/APC-24
