Model Number: mini fiber optic polishing machine
FUSE: 250V-0.5A.
Time Settings: 66 min 66 sec (Max)
Speed for Rotation Plate: 90 rpm
Height of Plate Jumpiness: <10 um
Pressure Configuration: 21 ~ 36 N/cm2
Work Temperature: 10 ~ 40 Celsius degrees
Relative Humidity: 15%~85%
Power Input: 220~230 VAC 50Hz/60Hz
Electric Power: 40 W

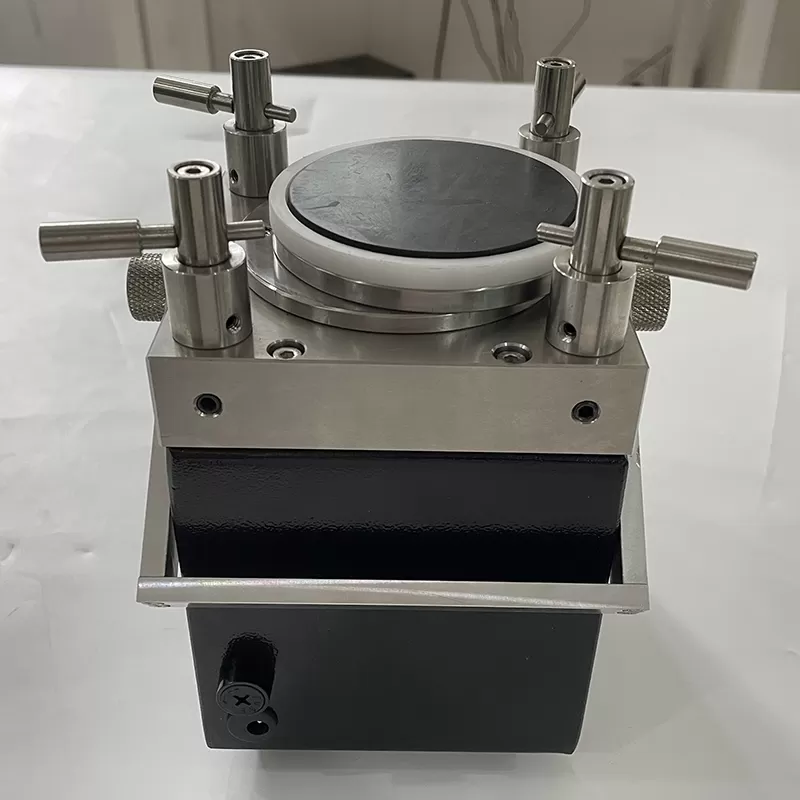

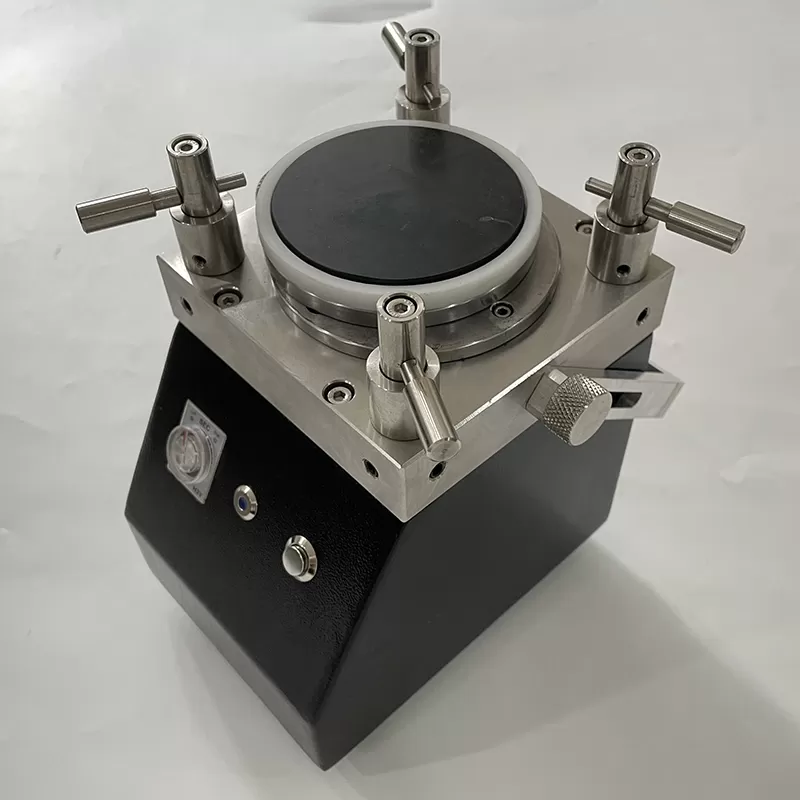

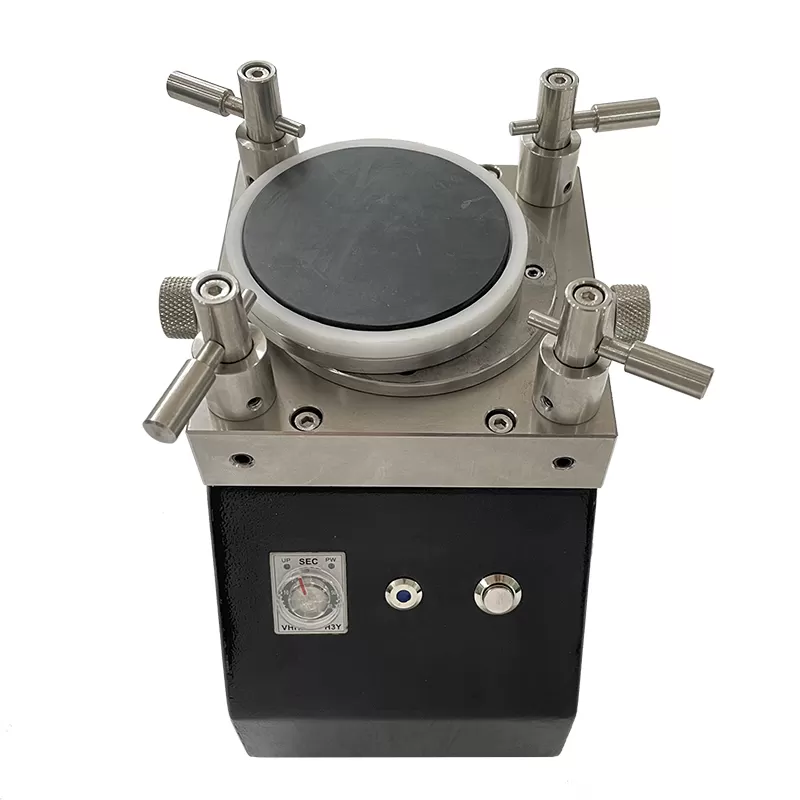

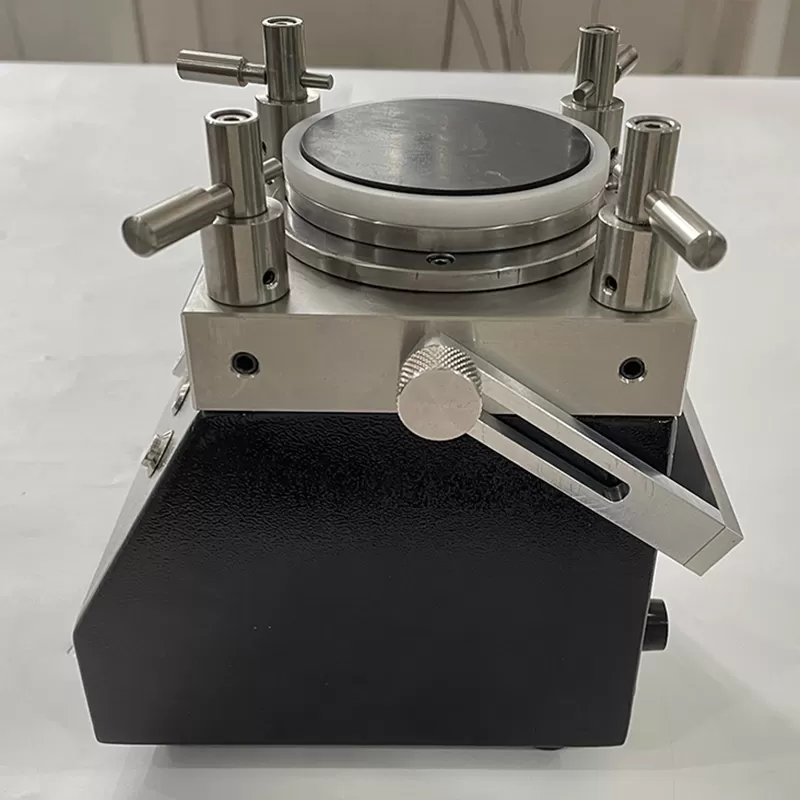

The four cornered mini fiber optic polishing machine is designed for the massive fiber optic patchcord production, manily for the new user. The machine can process with LC/FC/SC etc. normal ferrules and connectors.With four cornered pressure, the user dont need to adjust the rotation speed, and the force on the jig is stable and even, just start the machine, then put the four hands on the jig, after 30um, 9um, 1um, ADS polishing, you can have good polishing result under observation of the microscope.
Features
* May process each kind of standard fiber optic connectors, such as FC/UPC/APC,SC/UPC/APC, LC/UPC/APC, etc
* Convenience for adjusting pressure, unloading and replacing jigs
* Excellent connector and face polishing quality, the percentage of products sent back for repair is very low.
* Save material and low cost for grinding
* Easy to use and stable
* Display grinding speed which can be adjusted any time
* Control the direction with pro and con, convenience for Adjustment
* Toothed gearing, more stable and deep-set
Application
Fiber optic polishing machine central pressure type is a machine specially for polishing all types of the fiber optic connnectors, like the fiber optic patchcord, pigtail, ribbon patchcord/pigtail, adding connectors fo the PLC splitter, energy fiber, glass fiber, and fiber is the pre-terminal fast connectors.
Now the usage for the polishing machine has been very mature, it is used with other fiber optic equipment, like the fiber optic cable cutting machine, fiber optic microscope,heat oven, crimping machine, insertion loss and return loss tester, ultrasonic cleaner etc. to build up a production line for patchcord, pigtail, pre-terminal fibers for the fast connector.
How to set up a patch cord production line, see below pls
Polishing Procedures and Related Parameters
Process | Film | Liquid | Pressure | Time | Film lifetime |
Remove gule | 30um(green) | nothing | 1~2kg | 30s | 3 or 5 times |
The 1st polishing | 9um(blue) | Polishing oil | 2kg | 35s | Increase 5 seconds every 10 cycles, 30~40 cycles |
The 2nd polishing | 3um(pink) | Polishing oil | 2kg | 35s | Increase 5 seconds every 10 cycles, 30~40 cycles |
The 3rd polishing | 1um(lavender) | Polishing liquid ( with water 1:10) | 2kg | 35s | Increase 5 seconds every 10 cycles, 30~40 cycles |
The 4th polishing | ADS | Polishing liquid ( with water 1:10) | 2kg | 35s | Increase 5 seconds every 10 cycles, 30~40 cycles |
Remark
The parameters are tested by MIPOX polishing films. It may not apply to other material polishing film
Polishing result
Polishing Process | 4 processes (not including “Remove Glue ”) |
Return Loss | ≥50 dB |
Top Curvature | 10~25 mm |
Top Excursion | ≤50 um |
Core Hollow | ≤0.1 um |
Surface Roughness | ≤50 nm |
