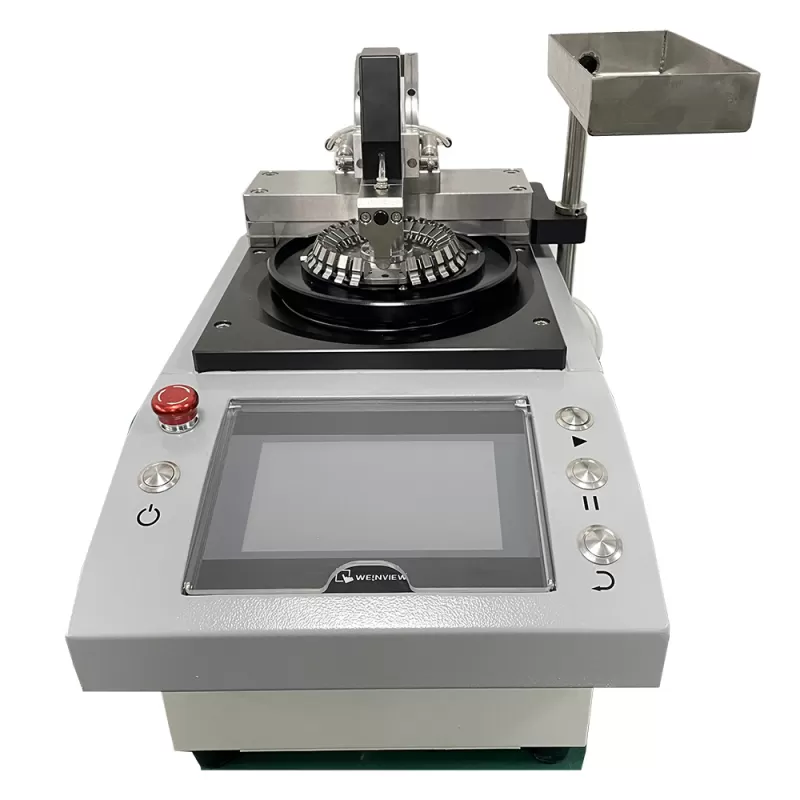

Model Number: MPO polishing machine
Performance: Polishing passing rate>98%
Suit for: MPO MTP MTRJ SC LC ST FC MU E2000 DIN
Size: 540mm*320mm*430mm
Polishing capacity: 72units
Polishing Time: 0-9999S
Precession Speed: 10~200r/min
Featurs:
1. simple and intelligent, separate polishing speed, pressure, running time, with 7-inch touch screen and mechanical keys, easy to operate pressure, unload and replace fixture, polishing steps convenient and fast.
2. Lifting beam S136 (from Swiss material 100%)vacuum treatment, front and back left and right deviation<3u, Polishing tray runout<5u.
3. It can process MPO, MTP, FC, SC, ST, LC, MU, MT-RJ and other optical fiber connectors and store a variety of grinding processes.
4. 45W, and motor connected synchronous gear , high precision mechanical fit, ensure polishing quality
5. High precision tray <2u, use more than 10 years will not deformation.
Technical Parameter
