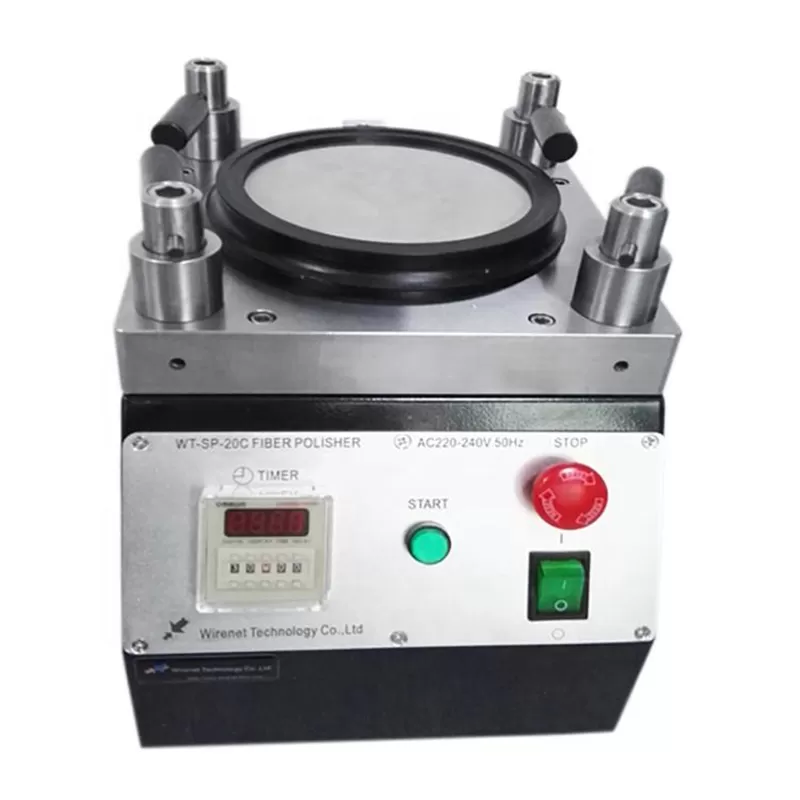

Model Number: WT-SP-20C
pressure type: square pressure
ferrule material: ceramic or glass fiber
ferrule diameter: 1.25mm, 2.5mm, 3.17mm
return loss: >=50db for SM/PC and 65db for SM/APC, 35db for MM
insertion loss: <=0.3db
power consumption: 40w
Single package size: 42X34X37 cm
Single gross weight: 27.500 kg
WT-CX-20C Fiber Optic Polishing Machine,The central pressure polishing machine strength controlled by four angle, thus the pressure is more precise to control and the final products has higher precision. For PC terminations above 95% could pass 3D interferometer test, while for APC terminations this rate keep 90%. Each polishing jig for this machine is available as LC,SC, ST,FC,MTRJ,E2000 PC connector as well as angle polishing.
Main feature:
* May process each kind of standard fiber optic connectors, such as FC/UPC/APC,SC/UPC/APC, ST/UPC/APC, LC/UPC/APC, ,MU/UPC/APC, MTRJ,E2000/UPC/APC etc.
* Convenience for adjusting pressure, unloading and replacing jigs.
* Excellent connector and face polishing quality, the percentage of products sent back for repair is very low.
* Save material and low cost for grinding.
* Easy to use and stable.
* Display grinding speed which can be adjusted any time.
* Control the direction with pro and con, convenience for Adjustment.
* Toothed gearing, more stable and deep-set.
Ferrule diameter:
2.5 mm (0.0984 inch)1.25mm(0.0492 inch).
Ferrule material:
Zirconia (ZrO2),Quartz capillary, Glass materials, Colophony material Stainless steel and titanium alloy.

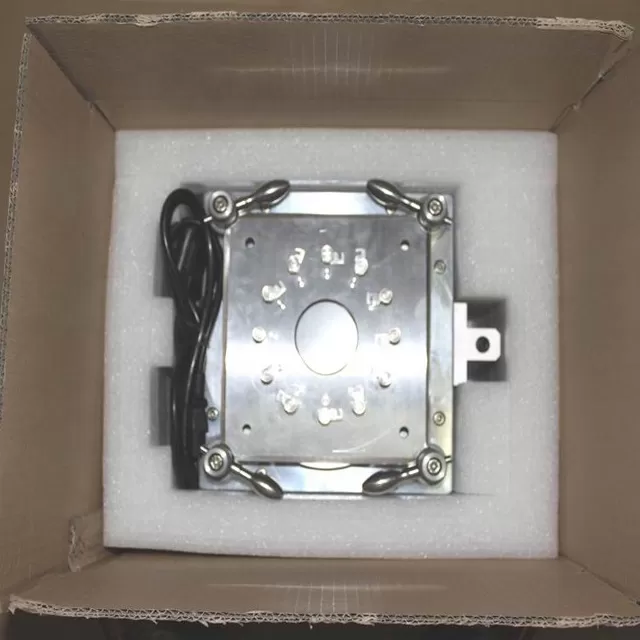

| Package: | |
| Pakage size | 39cm*31cm*37cm |
| Gross Weight | 27KG |
Polishing jig for Square pressure polishing machine:
| P/N | Description |
| SP-J-LC/P-24 | LC /PC Connector housing polishing jig for SP-20 24 position |
| SP-J-LC/P-40 | LC /PC Connector housing polishing jig for SP-20 20 position |
| SP-J-SC/P-20 | SC/PC Connector housing polishing jig for SP-20 20 position |
| SP-J-SC/P-24 | SC/PC Connector housing polishing jig for SP-20 24 position |
| SP-J-FC/P-20 | FC/PC Connector housing polishing jig for SP-20 20 position |
| SP-J-FC/P-24 | FC/PC Connector housing polishing jig for SP-20 24 position |
| SP-J-ST/P-20 | ST/PC Connector housing polishing jig for SP-20 20 position |
| SP-J-ST/P-24 | ST/PC Connector housing polishing jig for SP-20 24 position |
| SP-J-MU/P-24 | MU/PC Connector housing polishing jig for SP-20 24 position |
| SP-J-MU/P-40 | MU/PC Connector housing polishing jig for SP-20 40 position |
| SP-J-LC/A-20 | LC/APC Connector housing polishing jig for SP-20 20 position |
| SP-J-SC/A-18 | SC/APC Connector housing polishing jig for SP-20 18 position |
| SP-J-FC/A-18 | FC/APC Connector housing polishing jig for SP-20 18 position |
| SP-J-MJ-18 | MTRJ connector polishing jig for SP-20 18 position |
| SP-J-MP-18 | MPO connector polishing jig for SP-20 18 position |
| SP-J-125/P-20 | 1.25mm PC ferrule polishing jig for SP-20 20 position |
| SP-J-125/A-20 | 1.25mm APC ferrule polishing jig for SP-20 20 position |
| SP-J-250/P-18 | 2.5mm PC ferrule polishing jig for SP-20 20 position |
| SP-J-250/A-18 | 2.5mm APC ferrule polishing jig for SP-20 20 position |
