Model Number: WT-STB01
Product size: 400*280*240 mm
The disc plate size: 230mm
Trunnion: 60mm
The disc plate width: 200mm
Packing size: 460*340*260mm(The wooden case)
Gross weight: 8KG
The diameter: 3.0-9.0mm
Capacity: 300,160,100,70,55,45,35M

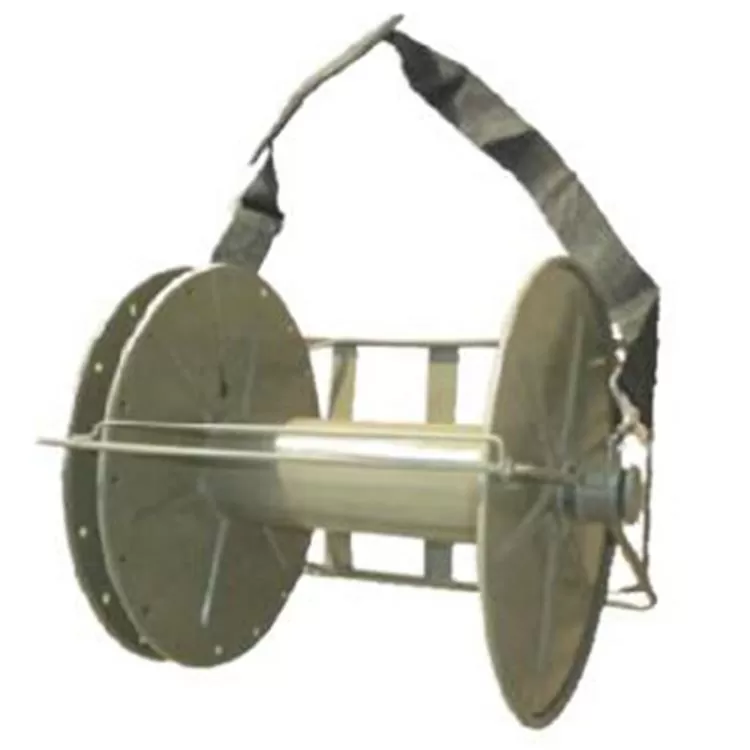

Portable field deployable tactical fiber optic cable reel has been optimized for using in harsh environments where mobility and rapid deployment of the cable are very essential. This assembly is specifically designed for field deployable applications. Particularly, it can broadcast the communication for film crews to connect HDTV camera equipment with central broadcasting trucksabout events like music concerts and sporting events. This deployable assembly includes a marcaddy drum, breakout modules with ruggedised tails at each end, choice of connectors, tactical cable and a high durability protective conduit IP rated pulling sock.
Features
1. Separate connector compartment for secure deployment
| Product size | 400*280*240mm |
| The disc plate size | φ230mm |
| Trunnion | φ60mm |
| The disc plate width | 200mm |
| Packing size | 460*340*260mm(The wooden case) |
| Gross weight | 8KG |
| The diameter | 3.0-9.0mm |
| Capacity | 300,160,100,70,55,45,35M |
| Note | Metal body with straps and lock ,reels are removale |
