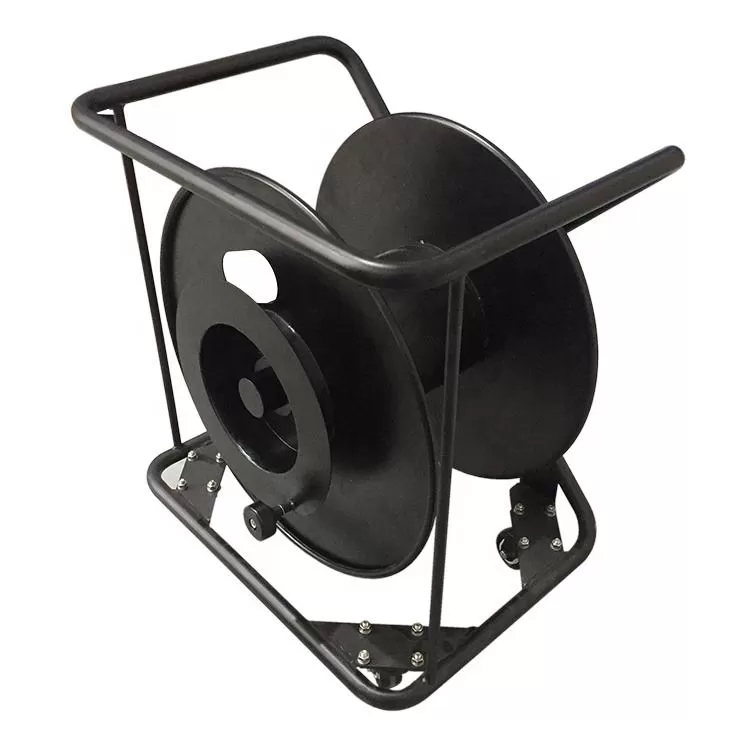

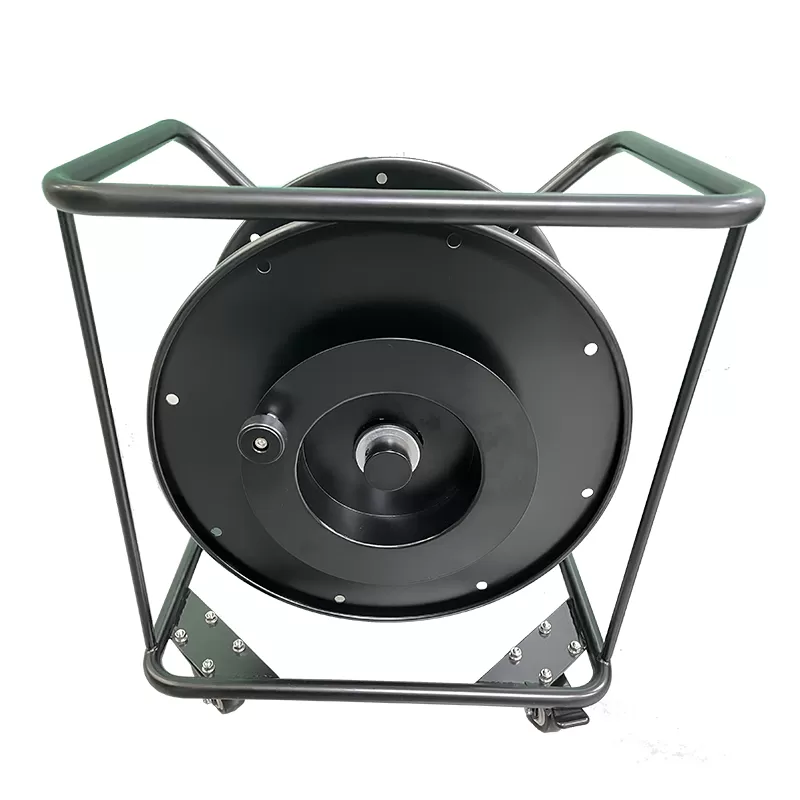

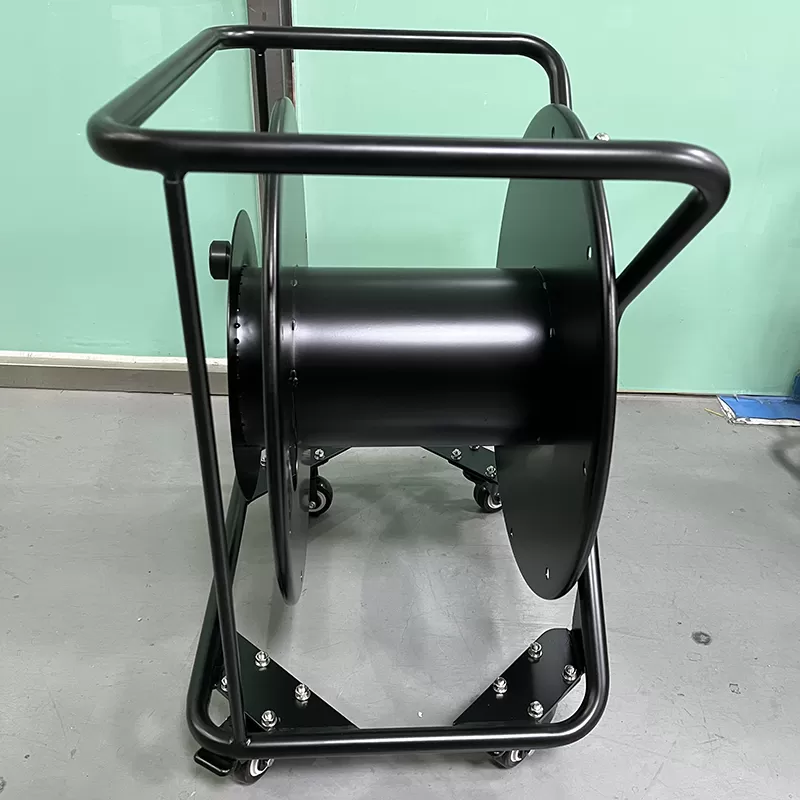

Metal Trolley Type Optical Fiber Cable Reel 500tf with Pulley Brake

Metal Trolley Type Optical Fiber Cable Reel 500tf with Pulley Brake

Model Number: WTTC-05

Product size: 530*460*320mm

The disc plate size: 460mm

Trunnion: 220mm

The disc plate width: 220mm

Packing size: 550*480*340mm(The wooden case)

Gross weight: 18KG

The diameter: 3.0-10.0mm

Capacity: 1800,1000,600,450,320,250,200,160M

Inquire Now

Description Contact Us

Features

Using flexible steel armour to protect optical fiber, making sure minimum damage.
Prevents damage from improper twisting, high resistance to crush and high tensile strength.
Mechanical protection against pest and rodent.
Rotating reel for deploying and retracting of cable and comes with braking system.
Various connectors are available such as FC/SC/ST/MU/LC/PDLC/ MPO.
Various cable are available, such CPRI cale, TPU Cable, Tactical cable,multicore indoor/outdoor cable,etc.

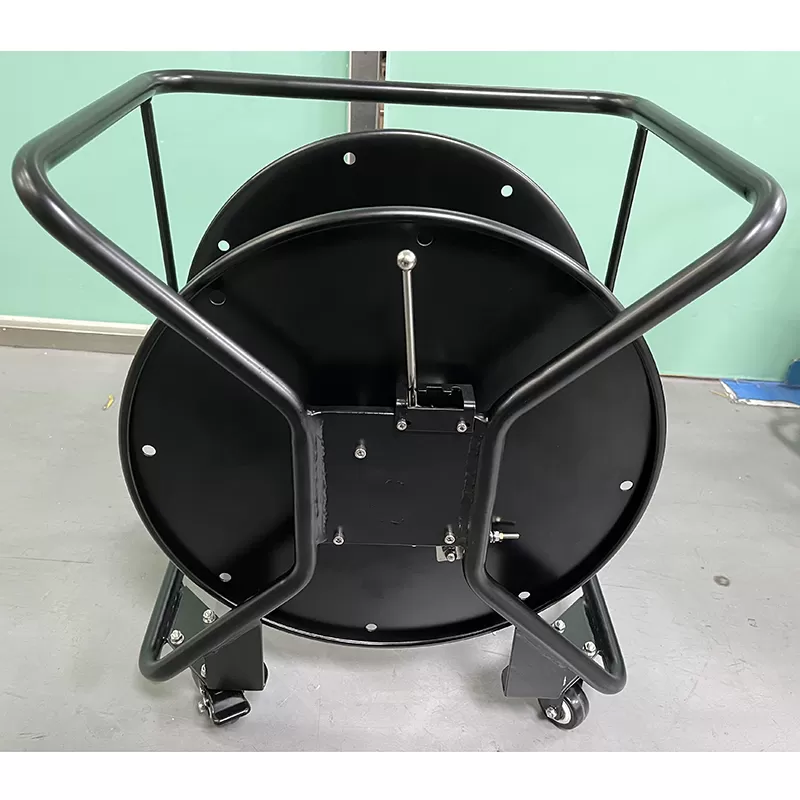

Gear Shift lever

Metal Trolley Type Optical Fiber Cable Reel 500tf with Pulley Brake

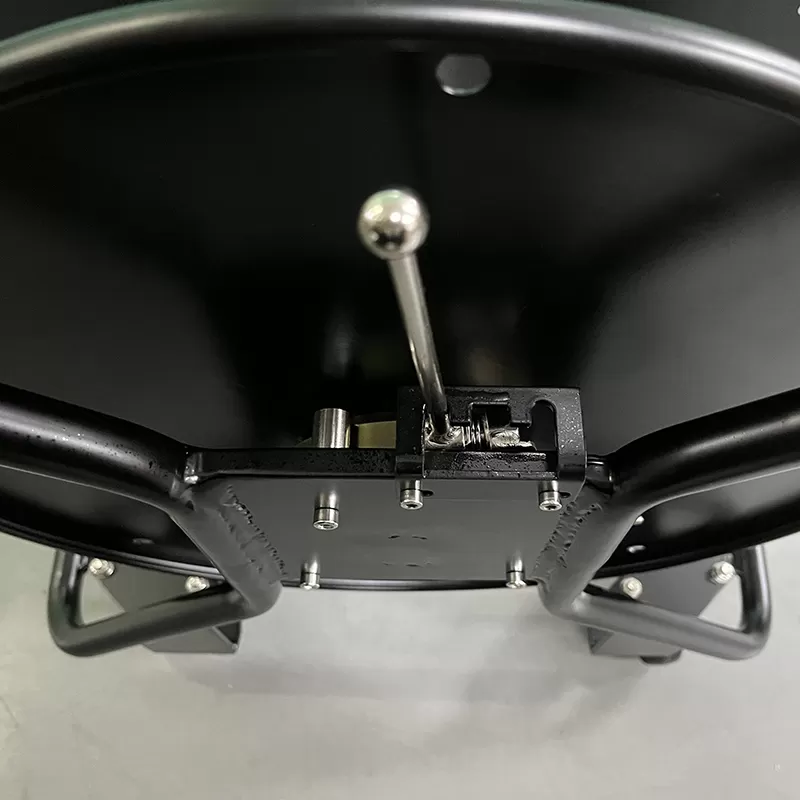

Brake&Folding rocker

Metal Trolley Type Optical Fiber Cable Reel 500tf with Pulley Brake

Product size	530460320mm
The disc plate size	φ460mm
Trunnion	φ200mm
The disc plate width	220mm
Packing size	550480340mm(The wooden case)
Gross weight	18KG
The diameter	3.0-10.0mm
Capacity	1800,1000,600,450,320,250,200,160M
Color	Black
Note	Four pulley translation belt brake
